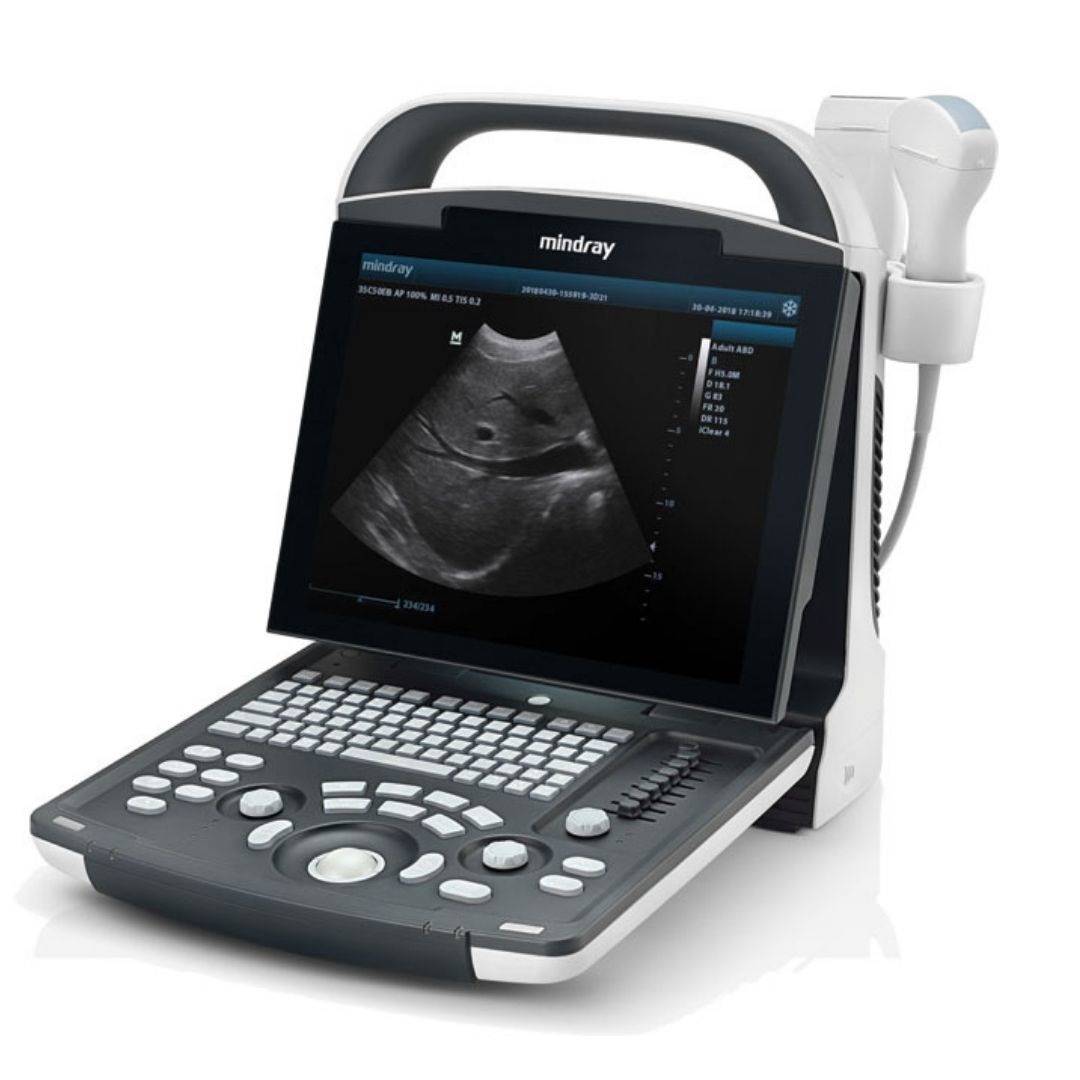

•The Best Entry-Level Black & White Ultrasound System In Its Class! The New Mindray DP-20 Comes Equipped With A Combination Of Performance, Affordability And Intuitive Workflow. Based On Intel’s Powerful Processor, The DP-20 Forms An Integral Part Of Mindray’s New Generation Of Portable B/W Ultrasound Systems. The Mindray DP Series Platforms Are Equipped With Latest Imaging Technologies, Quality Construction And Convenient Workflow Options.
DP-20 Standard Features
• Tissue Harmonic Imaging: Utilizing Second Harmonics Generated From Tissue Boundary Layers, THI Significantly Enhances Contrast Resolution And Improves Image Quality Especially For Technically Difficult Subjects.
• TSI: Tissue Specific Imaging Optimizes The Image Quality Based On The Properties Of The Tissue Being Scanned.
• Four Imaging Options Are Available Including General, Muscle, Fluid And Fat.
• IClearTM: Gain Improved Image Quality Based On Auto Structure Detection.
-Sharper & Continuous Edges
-Smooth Uniform Tissues
-Cleaner ‘No Echo Area’s Requirements.
• ExFOV: Discover Better Diagnostic Information Through Extended View Of The Anatomical Structure On All Convex And Linear Probes.
Workflow
| Directly Transfer Images And Reports To PC Via Network Cable | IStorageTM |
| Mindray’s Unique Patient Information Management System Allowing You To Integrate, Review, Archive And Retrieve Patient Data Effectively | IStationTM |
| Image Enhancing Mechanism Consisting Of Various Parameters | IP |
Ergonomics
• High Resolution 12.1” LED With Tilt Functionality
• User-Friendly Keyboard And Controls
• Easy To Carry With Only 5.1 Kg Weight
Transducers
Convex
• 35C50EB Center Frequency: 3.5MHz
• 35C20EA Center Frequency: 3.5MHz
• 65C15EA Center Frequency: 6.5MHz
Endocavity
• 65EC10EB Center Frequency: 6.5MHz
Linear
• 75L38EB Center Frequency: 7.5MHz
• 75L53EA Center Frequency: 7.5MHz
Key Features
• Harmonic Imaging (THI) Tissue Improving Contrast Resolution
• IP – Optimization Of One – Key Image (Image Processing)
• 8-Segment TGC For Accurate Adjustment Of The Image
• Compact Dimensions
• Scanning Ready Within 17s
• User-Defined Keys, Customized Operations Programmable
• One-Touch Function For Local Disk Or USB Drive Image And Cine Storage
• Lithium Battery For Continuous Scanning Up To 1.5 Hours
• Review Previously Saved Images
• Efficient Integration Of Station Patient Data Storage, Archiving, Reviewing And Recovery
• Net Weight: 5.5 Kg (Battery-Free)
Optionally Available Probes:
• Convex Sample (2 – 5Mhz)- 50 Mm Footprint For Abdominal, OB / GYN, Urology, Pediatric
• Linear Sample (5 – 10Mhz) – 38 Mm Footprint For MSK, Cardiac, Urology, Abdominal, Nervous, Pediatric, Cephalic
• Linear Sample (5 – 10Mhz)
• 53 Mm Footprint For MSK, Cardiac, Urology, Abdominal, Nervous, Pediatric, Cephalic
• Linear Sample (8 – 12Mhz)
• 24 Mm Footprint For MSK, Hands
• Micro-Convex Sample (5 – 8.5Mhz) — 15 Mm Footprint For MSK, Cardiac, Urology, Abdominal, Nervous, Pediatric, Cephalic
• Bi-Plane Micro – Convex (5 – 8.5Mhz)
• Endocavity Micro – Convex (5 – 8.5Mhz)
• 10 Mm Footprint For Gyn / OB
• Endorectal Linear (5 – 8.5Mhz)
• 60 Mm Footprint For Urology.
• Micro-Convex Sample (2 – 5Mhz) – 20 Mm Footprint For Gyn / OB, MSK, Abdominal, Pediatric, Cardiac, Vascular, Nerve
• Linear Sample Shapes (5 – 10Mhz)- 38 Mm Footprint For Interoperative, Small Organs, Orthopedic, Nerve, Vascular.
