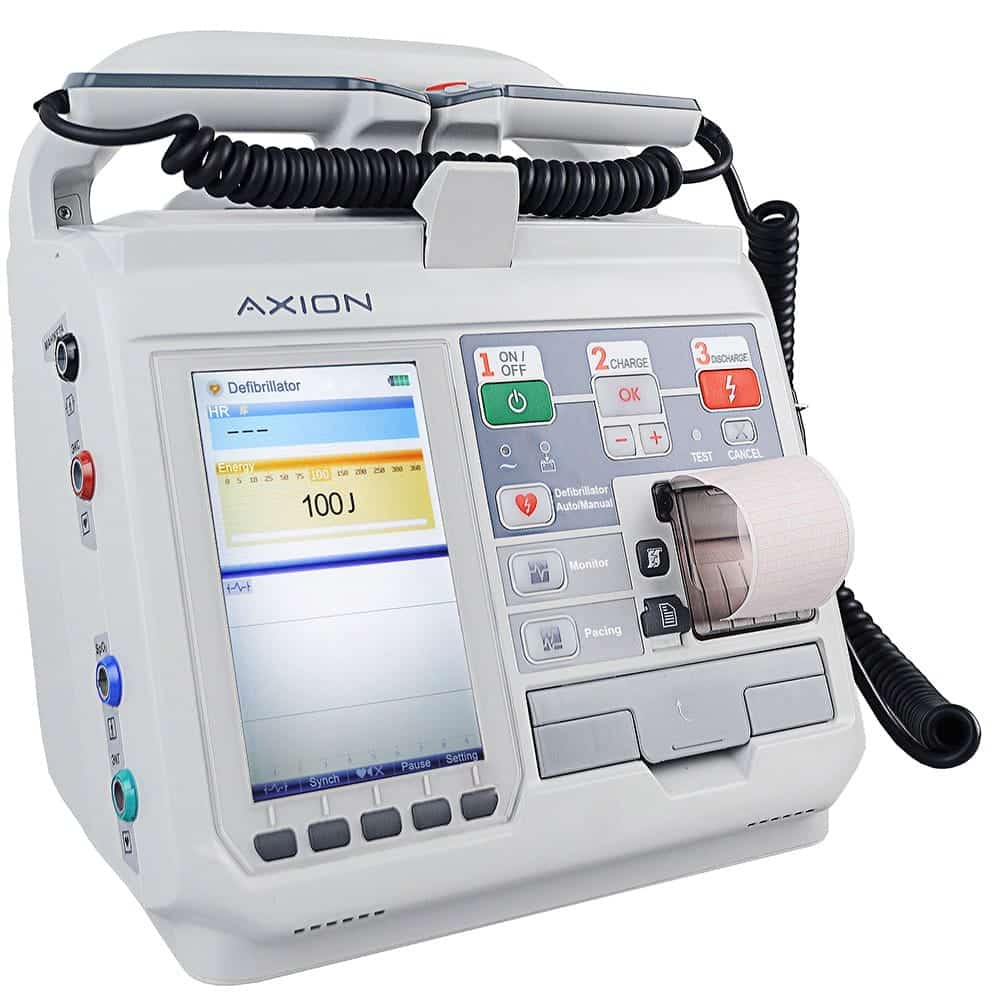

•Defibrillator- Monitor «AXION» Is New Device In The Product Range Of Ltd. Concern “AXION”.
• All Technical Characteristics Of The Model DKI-N-11 “AXION” Are Saved: The Formation Of Physiologically Optimal Bipolar Pulse Energy To 360 J.
• Functions Of External, Endocardial And Trans Esophageal Pacing.
• Kids And Adults Electrodes. Time Of Energy Accumulation 200 J- 6 Sec, 360 J – 10 Sec.
• Voice Support Of The Operator’s And Device Operation.
• All Information Is Displayed On The TFT-Screen And Recorded On Thermal Printer.
• Power Supply 220 V Is Added. Storage Battery Is Built-In. There Is A Replaceable Memory Card.
Defibrillation:
Pulse
• Physiologically Optimal Bipolar Pulse With Automatic Correction Of Duration And Shape Depending On The Patient Impedance
Defibrillation Pulse Energy, J
• For Adults 5/10/25/50/75/100/150/200/250/300/360(Additional Function Of Power Accumulation Over 200J, With The Adult Electrodes)
• For Children 5/10/25/50/75/100/150(Shut-Down Of Power Over 150J, When Working In The Children’s Mode)
Time Of Energy Accumulation, No More Than, Sec (200J 6)
Number Of Defibrillation Pulses From The Fully Charged Storage Battery, No More Than (200J70) (360J40)
Time Of Holding Accumulated Energy With Indication Of Remaining Seconds, With Subsequent Automatic Reset Of The Stored Energy To The Internal Load, No More Than, Sec(30)
ECG:
| From Defibrillation Electrodes And Separate ECG Cable | Two ECG Receiving Channels |
| I…II, AVR…AVF | ECG-Monitoring Through A 4-Lead ECG Cable |
| I…III,AVR…AVF, V1…V6 | ECG-Monitoring Through A 10-Lead ECG Cable (Option) |
| 5, 10, 20 | ECG Channel Sensitivity, Mm/MV |
| 12,5; 25; 50 | Image Motion Speed, Mm/Sec |
| From 30 To 300 | HR Measuring Range, Bpm |
| ±2 | The Absolute Error Of HR Measuring, Bpm |
| 58 | Paper Width, Mm |
| Presence | Possibility Of Grid Printing At A Pitch Of 1mm |
| 12,5, 25,50 | Sweep Speed, Mm/Sec |
:Safety
| Colour TFT | LCD Display |
| 152х91mm | Display Size |
| 7” | Diagonal |
| 800Х 640 Pixels | Resolution |
| 6Sec | Time Of Monitor Restoration After Defibrillation, No More Than |
Displaying Information:
• Values Of The Preset Energy, Three ECG Leads, The Replacement Battery Condition, Upper And Lower Alarm Limits For Heart Rate And The Current Value, Energy Accumulation Process, Current Date And Time, Recording Mode, Current Applied And The Resistance Of The Patient’s Chest, Photo Plethysmogram, Pulse Frequency, SpO2 Value, Systolic And Diastolic Blood Pressure Values, Pacing Channel Settings, Message Duplication Of Voice Support Of The Operator’s Actions And Device Operation
Power Supply:
When Operated From Replaceable Storage Battery
| 4h | Battery Charging Time, At Least |
| 12-20V | When Operated From DС Mains |
| 190-250V Of Frequency 50-60Hz | When Operated From AC Mains |
| 168h | Period Of Continuous Operation When Operated AC Mains, At Least |
| 210VA | Mains Power, No More Than |
| 3h | Period Of Continuous Operation In Monitoring Mode When Operated From The Rechargeable Storage Battery, At Least |
| 100-360J | Automatic External Defibrillation (AED) — Option |
| Option | Blood Pressure Channel |
| From 20 To 280 | Range Of Blood Pressure Measurements, Mm Hg |
| ±3 | The Absolute Error Of Blood Pressure Measurement In Cuff, Mm Hg |
| Option | Pulse Oximetry Channel |
| 0-100 | % The Range Of SpO2 Measurement |
| ±3 | % The Absolute Error Of SpO2 Readings |
| From 30 To 240 | The Range Of Pulse Rate Measurement, Bpm |
| ±2 | The Absolute Error Of Pulse Rate Measurement, Bpm |
| Option | Pacing |
| External (EKSN) Endocardial (ENDO) Trans Esophageal (TEES) |
Types Of Pacing (External Cardio Stimulatory Channel) |
| Fixed Overdrive Demand |
External Cardio Stimulatory Channel Modes |
External Pacing
Frequency Setting, Pulse/Min
| From 40 To 180 | Fixed And Demand Modes |
| From 40 To 250 | Overdrive Mode |
| From 20 To 40 | Pulse Duration Setting, Msec |
| From 10 To 180 | Pulse Current Setting, MA |
| 100-500 | Allowed Load Range, Ом |
Endocardial Pacing
Frequency Setting, Pulse/Min
| From 40 To 180 | Fixed And Demand Modes |
| From 40 To 900 | Overdrive Mode |
| 0,5; 1 | Pulse Duration Setting, Msec |
| From 4 To 20 At A Pitch Of 2 | Pulse Current Setting, MA |
| 400-600 | Allowed Load Range, Ohm |
Trans Esophageal Pacing
Frequency Setting, Pulse/Min
| From 40 To 180 | Fixed And Demand Modes |
| From 40 To 900 | Overdrive Mode |
| 5; 10 | Pulse Duration Setting, Msec |
| From 4 To 50 At A Pitch Of 2 | Pulse Current Setting, MA |
| 700-1300 | Allowed Load Range, Ohm |
:Data Processing
| Micro SD | Memory Card Slot |
:Supply Package
Basic Equipment
| 1Pc | Defibrillator-Monitor With Built-In Power Supply Unit And Charging Unit |
| 1Pc | Storage Battery (NiCd, 14,4V, 1900 MA•H) |
| Built In | Battery Charging Unit With Automatic Shutdown |
| Built-In | Registrar Of Recording On Paper With Automatic And Manual Switching |
| 1Pc | Power Cord 1,8m |
| 50Pcs | Disposable Electrodes For ECG Monitoring |
| Built-In | Adult And Kids Electrodes, Reusable |
| 1Pc | ECG Cable For 4 Electrodes With Plug Of “Crocodile” Type |
| 1Pc | Carrying Bag |
| 1Set | Operational Documentation |
| 2Pcs | Paper |
Additional Equipment
| 1Pc (At The Customer’s Request) | Mains Unit 12- 20 V |
| 6Pcs (At The Customer’s Request) | Chest ECG Electrodes |
| 1Set (At The Customer’s Request) | Limbs ECG Electrodes |
| 1set | Disposable Electrodes For External Cardiac Stimulation |
| 1Pc (At The Customer’s Request) | ECG Cable For 10 Electrodes With 4 Mm Pin |
| 1Pc | Cuff, Average Size, For Adults |
| 1Pc | Pulsoximetrical Cabel |
| 1Pc (At The Customer’s Request) | Endocardial Pacing Set |
| 1Pc (At The Customer’s Request) | Trans Esophageal Pacing Set |
:General Characteristics
| 310х340х175 | Dimensions, Mm |
| 7 | Weight, Kg, Max |
| Group 5 | Resistance To Mechanical Stress (GOST R 50444) |
