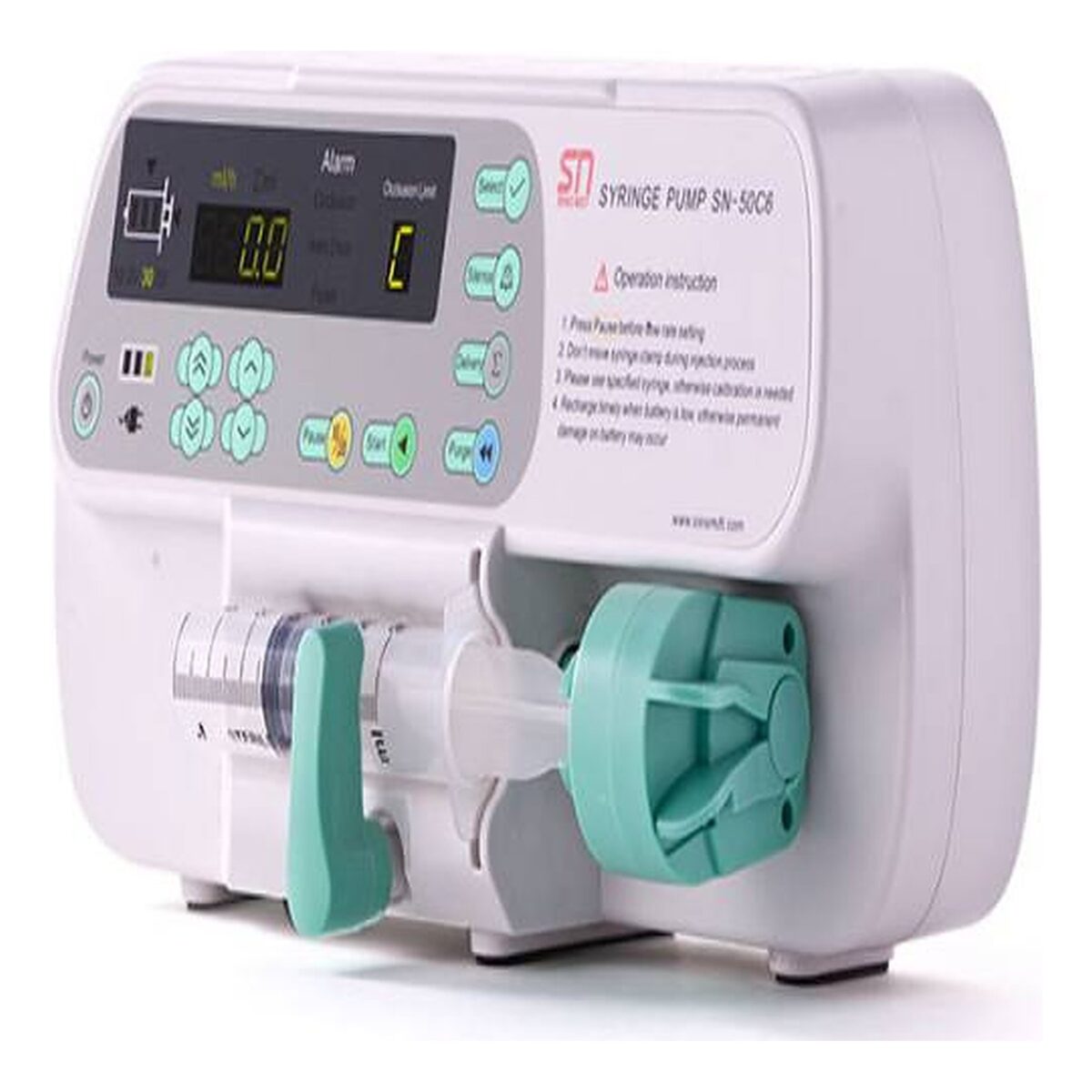

•Single Channel Syringe Pump Is A The Most Common See And Popular Iv Syringe Driver Pump Among All Models.
• It Features Stable Quality, Easy To Operate, And Automatic Calibration And Most Importantly Accurate Injection.
• Various Modes Support Includes Time Mode, Speed Mode, Body Weight Mode And Drug Library Mode.
FEATURES
• Calibrating Syringe Automatically
• Identifying Syringe Size Automatically
• 3-Level Occlusion Alarm Limits Setting
• Automatically Reducing Impacts Does Release After Occlusion
• Limits Setting
• Delivered Volume Inquiry
• KVO Flow Rate (0.1-1.0 Ml/H Adjustable)
• Fast Rate Control
• “Purge” Button Activates Safe Projection
• Flow Rate Setting Button Lock
• Abundant Optic And Sound Alarm
• Ac And Internal Power Indications
• Standard Rs232 Interface
• 1000 History Of Records
• Multi-Direction Clamp For Either Horizontal Or Vertical Fixation
PRODUCT SPECIFICATIONS
| SYRINGE | 10,20,30,50 mL of calibration syringe |
| FLOW RATE | · 0.1-1500mL/h
· 0.1-900mL/h · 0.1-600mL/h · 0.1-400mL/h |
| PURGE RATE | 1500mL/h 50mL syringe
900mL/h 30 mL syringe 600mL/h 20mL syringe 400mL/h 10mL syringe |
| ACCURACY OF FLOW RATE
(NOMINAL VALUE) |
Accuracy including syringe: within±2%
Mechanical accuracy: within ±1% |
| DISPLAY RANGE OF VOLUME DELIVERED | 0.1-9999 mL |
| SETTING OF DELIVERY LIMIT | 0.1-9999 mL |
| OCCLUSION DETECTION PRESSURE | H: 800 ±200 mmHg
C: 500 ±100 mmHg L: 300 ±100 mmHg |
| ALARMS | Occlusion
Near empty Finish Syringe dislocated Plunger/Clutch disengaged Battery low Battery exhausted Power cable disconnected Flow rate over limit Volume over limit Non-operation time over |
| POWER |
AC 110-220v ±10%,50/60 Hz ±Hz Inner NiMH battery: DC 12 V Continuous operation time battery: over 6 hours for one channel when the battery is recharged for 12 hours, at flow rate of 5 mL/h |
| OPERATION CONDITIONS | Ambient temperature: 5 to 40’c
Relative humidity:20-50’c |
| STORAGE CONDITIONS | Ambient temperature: -20 to 50’C
Relative humidity:<95% |
| ELECTRIC SHOCK PROTECTION | Class 1 and internal power supply: Type CF, Continous operation |
| WATERPROOF LEVEL | IPX4 |
| WEIGHT | 2.25kg (with clamp base) |
| DIMENSION | 306mm (w)x135mm (H)x127mm(D) |
