Features

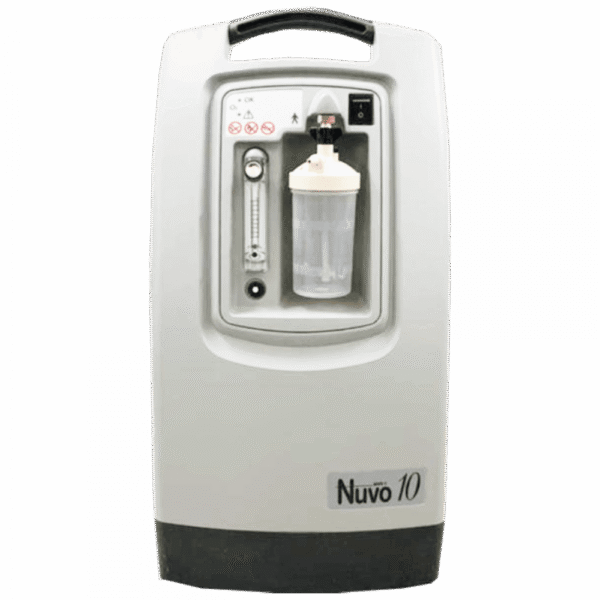

- Nidek Nuvo 10 Oxygen Concentrator provides oxygen 10 litres per minute to the patient requiring long term oxygen therapy.
- It is simple and easy to use and comes with patented RPSA technology.
- The rear panel allows easy access to filter, gauge and battery while its sleek design provides easy handling.
- This portable unit can be wheeled from room to room and can be fitted with a double outlet to split the flow so it can be used simultaneously with one line to an anesthetic machine and one line to a cage.
- Nidek Nuvo 10 Oxygen Concentrator provides oxygen up to 10 LPM (Liter Per Minute) to patients that require Long Term Oxygen Therapy (LTOT)
- Device is manufactured to provide a combination of reliable proven technology and ease of use
- Quiet operation with less than 48 dba
- Sleek design for easy handling
- Simple and easy to use
- Quick snap rear panel allows easy access to filter, gauge and battery
- Built on the reliable Nuvo platform
- Superior Grade of Molecular Sieve
- Easy Access to filter and hour meter
- Spring mounted high efficiency compressor
Specifications
| Average Power Consumption | 600W |
| Oxygen Concentration | 90% +5%/-3% at 10 LPM |
| Liter Flow | 2 to 10 LPM |
| Sound Level | 48 dBA |
| Outlet Pressure | 15 PSIG |
| Weight | 55.5 lbs |
OXYGEN CONCENTRATOR SPECIFICATIONS
| Electrical Requirements | 230 Volt – 50/60 Hz |
| Flow Delivery Rate | 2 to 10 LPM |
| Oxygen Concentration | 90% (+5.5% / -3%) |
| Sound Level | <47 dBA |
| Power Consumption | 490/585 Watts Average |
| Operating System | Timed Cycle / Rapid Pressure Swing |
| Safety Alarms & Features | Power Failure Process Failure High Pressure / Low Pressure Low Oxygen Concentration (in OMS Model) Current overload or line surge shutdown Thermal Switch 40 psig Pressure Relief Valve Low Battery Test |
| Filters | Cabinet & Compressor Intake & Bacteria |
| Operating Environment | Ambient Temperature: 50°F to 100°F (10°C to 40°C) Humidity: 15% to 95%, non-condensing |
| Storage Range | Temperature: 0°F to 140°F (-20°C to 60°C) Humidity: 15% to 95%, non-condensing |
| Dimensions | 394mm L x 396mm W x 760mm H |
| Weight | > 23 kg |
