3 Channel Ecg With Monitor Ecg300 GA-جهاز رسم قلب 3 قناة
16,499 EGP

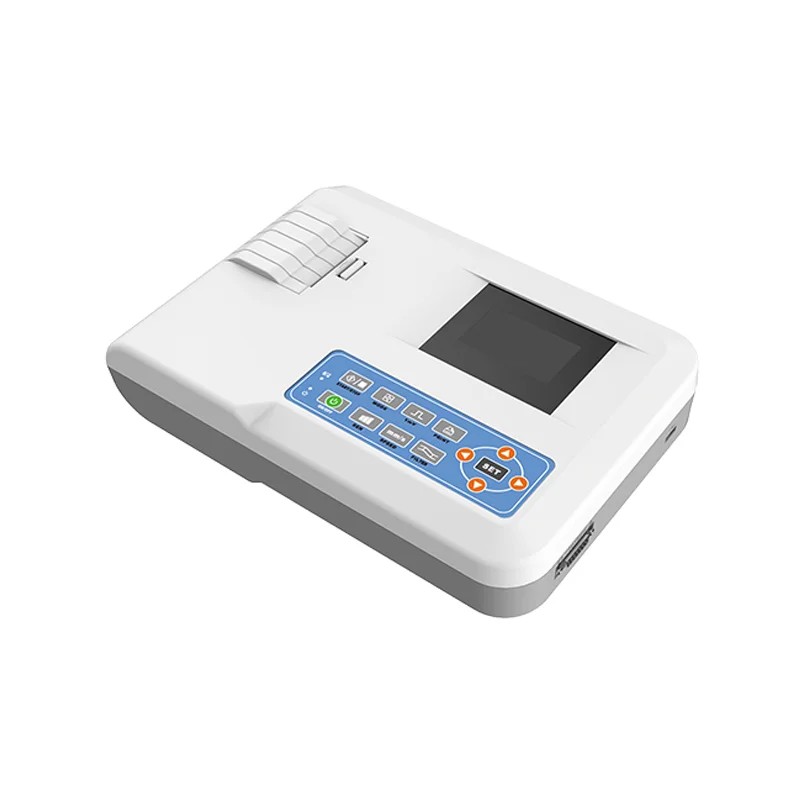

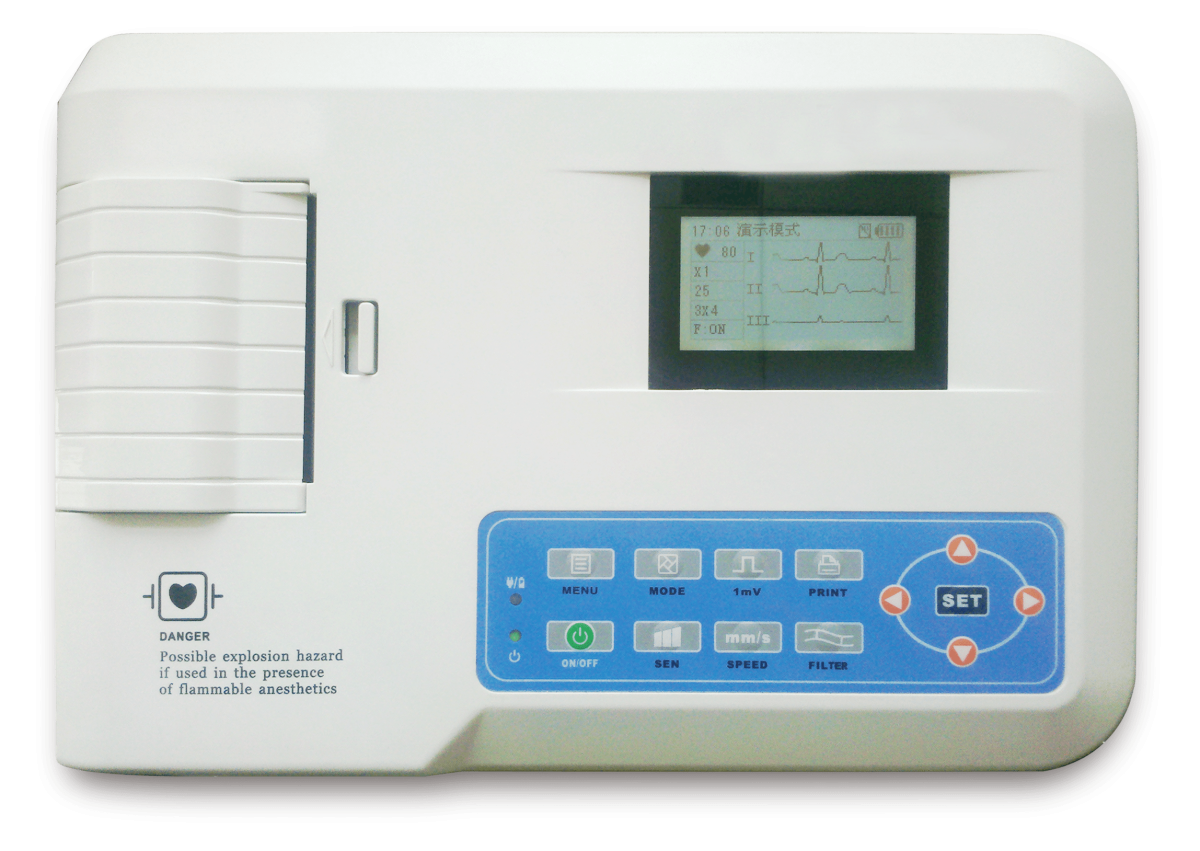

Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by the thermal printing system.
Warranty Period: 2 Years
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
Introduction
- ECG300GA is an Electrocardiograph which can collect 12-lead ECG signal
- simultaneously and print waveform by the thermal printing system.
- It features in,recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically
- prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management.
Function
- Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
- Display of 1/3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
- Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, etc. Waveform length printed can be adjusted, and with timed print function, which meets different requirements.
- With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5) +S(V1), etc. which reduces the doctor’s burden.
- Build-in memory stores 15 cases, optional SD card stores up to 100 cases, which is convenient for doctor to review case and statistic.
- Multi- language (Chinese, English) interface and report.
- Optional ECG-Sync software, connect with PC by USB2.0 interface to form an ECG workstation, import real-time data to the software for analyzing and report printing, and old cases stored in Electrocardiograph can be uploaded to PC.
- Power supply: AC/DC and built-in rechargeable lithium battery. In optimal DC state, up to 4-hour standby time, continuous print 70-minute and 175-ECG, which meets the requirements of visiting a patient at home and body examination.
FEATURES
- Accurate and clear ECG waveform
- Working state display
- Economical to save recording paper
FUNCTIONS
- Sync collection for 12-lead ECG adopt digital signal processing technology to get high-quality ECG waveforms via AC filter
- Baseline filter and EMG filter of ECG signal
- Display of 1/2/3-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
PRODUCT SPECIFICATIONS
| Input Mode | Floating And Defibrillation Safety |
| Frequency Response | 0.05Hz ~ 150Hz(-3dB~+0.4dB) |
| CMRR | > 60dB, > 100dB (Add Filter) |
| Time Constant | 3.2s |
| Patient Leakage Current | < 10μA |
| Calibration Voltage | 1mV |
| Sensitivity | 2.5, 5, 10, 20, 40 Mm / MV ±5 Percent, Normal Sensitivity: 10mm / MV±2 Percent |
| Noise Level | < 15μVp-P |
| Sampling Accuracy | 12-Bit |
| Safety Classification | Class I, Type CF And Defibrillation-Proof Part |
| Recording Mode | Thermal Printing Device |
| Auto Recording | Set Auto Record Format And Mode calculate and analyze automatically |
| Rhythm Recording | Set Rhythm Recording Format And Mode |
| Manual Recording | Set The Record Format, Switch Manually |
| Measures Of Measurement | HR, P-R Duration, P Length, QRS Duration, T Duration, Q-T Interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5) +S(V1) |
| Paper Size | 80mm(W)20m(L) |
| Sampling Frequency | 1000Hz |
| EMG Interference Filter | 25Hz/35Hz (-3dB) |
| Power Frequency Filter | AC 50Hz/60Hz(-20dB) |
| Paper Speed | Auto: 25, 50mm / S, ±5 Percent Rhythm |
