On-platform, compact ultrasound system CBit 9-جهاز سونار ترولي

Specifications

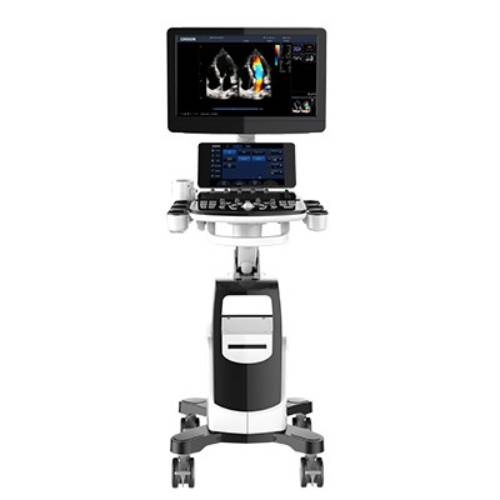

COLOR ULTRASOUND MACHINE CBIT9

A revolutionary invention with everything you can imagine makes you more professional.

FEATURES

• 21.5 inch LED screen with high resolution.
• 10.1-inch-high-sensitive touch screen.
• Interactive keyboard with backlight
• There are 4 transducer ports.
• Integrated 500G hard drive, 6 USB ports, DVD-R / W.
• Built-in battery can operate continuously for 80 minutes without plugging in.
• Connect to video printer.
• Automatically track and measure pulse Doppler motion in real time.
• Multi-language display.
• Image storage system
• Patient information management system.

 Technical Specifications

• Applications: Abdominal (Gynecology & Urology), Fetus / Obstetrics, Small Parts (chest, testes, snow armor), Pediatrics, Peripheral Blood Vessels, Normal and Surface Musculoskeletal shallow, Tim (adults & children), Transvaginal, …
• Mode: B, B / M, M, 2B, 4B, CFM, 2D, 4D, PD, DPD, PW, B / BC, CW, Color M, ECG, CPI, TDI, Quad / Dual, Duplex, Triplex, Elastography, Quadplex, Trapezoidal, …
• Technologies: SRA, FHI, AIO, Virtual 4D, Depth view, X-contrast, Q-flow, Q-beam, Q-image, Compound, …

Dimensions and Weight

• Dimensions of main unit (approx.): 810mm(Depth)*635mm(Width)*1330mm(Height) D
• Net weight of main unit (approx.): 76kg (no probe included)

Electrical Power

• Power supply voltage: Auto adaptable for AC100-240V
• Power supply frequency: 50-60 Hz
• Power consumption: 600 VA

Applications

• Abdominal (Gynecology & Urology)
• Fetal/OB
• Small Organ (Breast, Testes, Thyroid)
• Pediatric
• Peripheral Vascular
• Musculo-skeletal Conventional & Superficial
• Cardiac (adult & pediatric)
• Transvaginal
• Electronic convex Scanning Method
• Electronic linear
• Electronic micro convex
• Electronic phased array
• Volume convex

Transducer Types

• Convex transducer: D3C60L
• Linear transducer: D7L40L
• Linear transducer: D12L40L
• Trans-vaginal transducer: D6C12L
• Trans-vaginal transducer: D7C10L
• Phased array transducer: D3P64L
• Phased array transducer: D5P64L
• Volume transducer: V4C40L
• Micro convex transducer: D6C15L
• Micro convex transducer: D3C20L
• Single crystal linear transducer: M8L40L
• High density transducer: M8L50L
• High density transducer: M8L60L
• TEE transducer
• Bi-plane transduce

Image Modes

• B Mode
• B/M mode
• M mode
• 2B Mode
• 4B Mode
• CFM Mode
• 2D Steer
• PD Mode
• DPD Mode
• PW Mode
• B/BC Mode
• Triplex
• Quadplex
• CW Mode
• Free Steering M Mode
• TDI
• Color M Mode
• Curved Panoramic Imaging
• Trapezoidal imaging
• Compound
• SRA
• Elastography
• Stress echo
• ECG
• Super Needle
• 4D
• Virtual HD
• FHI mode
• AIO

Clinical Analysis Packages

• GYN
• URO
• Cardiac
• Vessel
• Small parts
• Pediatrics
• TCD
• Breas
