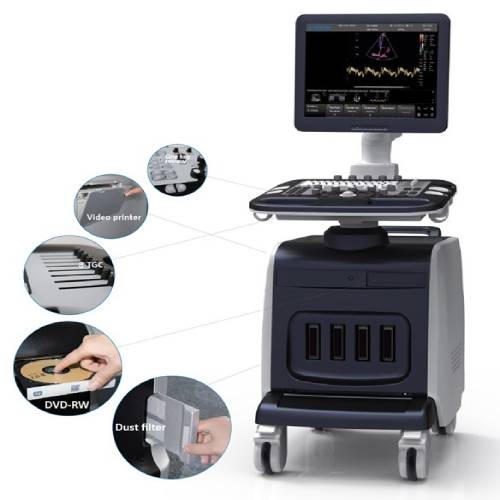

On-platform, compact ultrasound system I8-جهاز سونار ترولي

Specifications

• ALL IN ONE, Beyond Your Expectation
• Chison i8 is a new generation ultrasound system. Integrated with advanced technology, superior image quality and ergonomic design, i8 provides you with comfortable and efficient scanning experience.
• The shared service configuration allows you to easily select any of many clinical applications including AB, OB/GYN, Cardiology, Vascular, Small Parts, Breast, and MSK.

Features
Virtual HD (option):

• The latest innovation in real- time 4D with powerful turbo imaging engine.
• Greatly strengthen the bond between mother and fetus.
• With moveable virtual light source.

Elastograohy (Option):

• Elastography Displays tissue stiffness in real time to provide Doctors with additional diagnostic
• Information when Scanning organs like liver and breast.

Super Needle (Option):

With Super Needle, Clinicians can see needle inside tissue more clearly during medical procedures, Needle angle up to +-30 deg.

Curved Panoramic Imaging (option):

• Curved Panoramic Imaging Utilizes Pattern Recognition and images Synthesis to generate wide and flexible view to reveal more anatomic information for diagnosis.

Up to 18MHz High Frequency Linear Probe:

• Our high frequency linear probe provides unparalleled detail resolution and superior contrast resolution with up to 18 MHz imaging frequency.

Technical Specifications

• 19″ High Definition LCD Monitor, 4 probe connectors
• Advanced 4D technologies: 4D probe and package¿¿¿4D software & 4D hardware module
• Advanced Imaging Technologies: THI, SRA, Compounding, i-Image, Elastography (option), Super Needle (option)
• Shared Service: Cardiac, Vascular, ABD, OB/GYN, MSK, Small Parts, Breast, Urology, and Pediatric
• D6P64L

4.0MHz-10.0MHz Phased array probe

• D3P64L

2.5MHz-4.0MHz Phased array

• D6C15L

4.0MHz-10.7MHz Pediatric

• D5C20L

3.5MHz-8.0MHz Pediatric

• D3C20L

2.5MHz-6.4MHz Micro-Convex

• V4C40L

2.5MHz-5.3MHz 4D Volume

• D7C10L

4.0MHz-10.7MHz Transvaginal

• D6C12L

4.0MHz-10.0MHz Transvaginal

• D7L60L-60mm

4.0MHz-10.7MHz Linear

• D12L40L

7.0MHz-18.0MHz Linear

• D7L40L

5.0MHz-10.0MHz Linear

• D3C60L

2.5MHz-5.3MHz Convex
