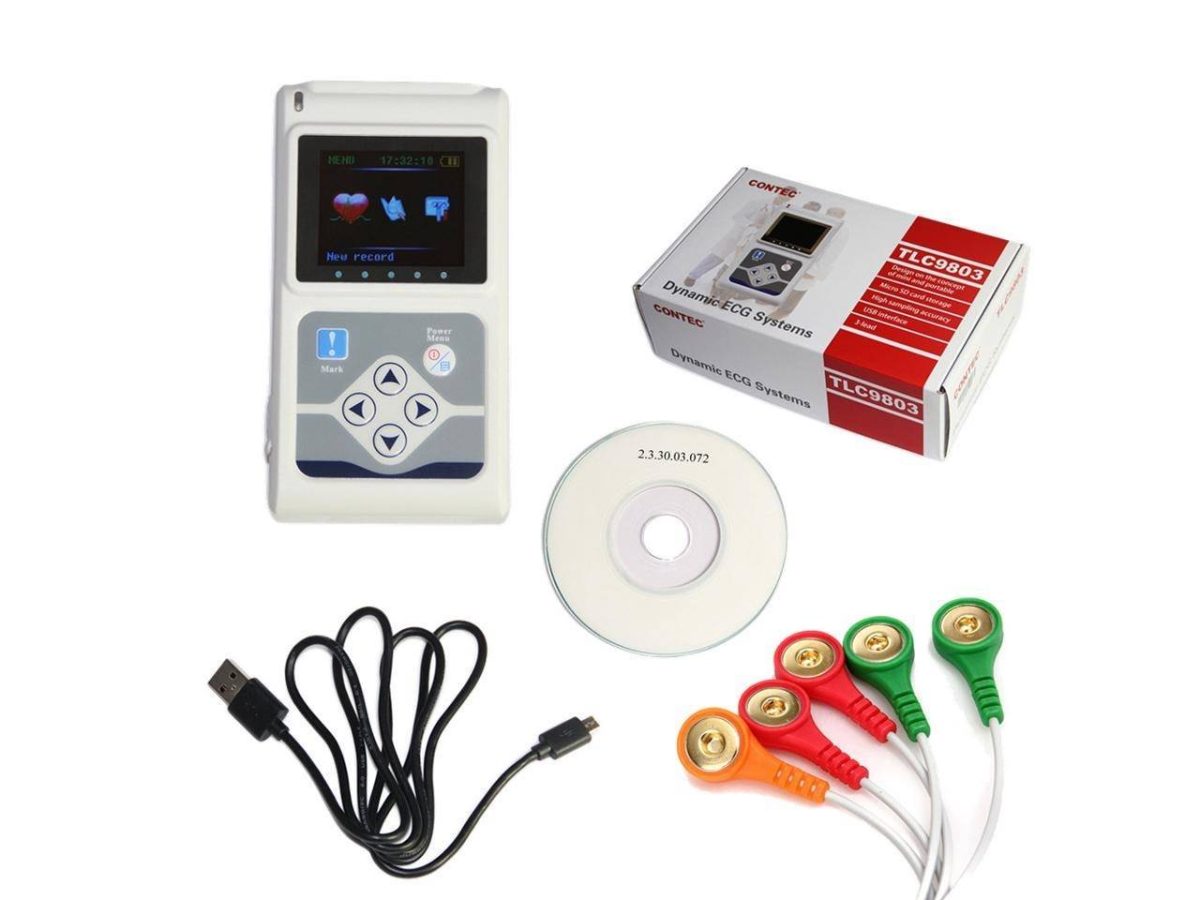

CONTEC TLC9803 3-Channel 24-Hour Holter ECG Recorder
A Holter ECG that records 3 channels for 24 hours on a built-in card of up to 2 GB; the analysis software reviews arrhythmia, atrial fibrillation, ST and heart-rate variability. The recorder weighs 102 g without batteries. Reading and interpreting the recording is the physician's responsibility.
2-year warranty
On CONTEC devices, from the date of purchase.
Lifetime service
Service and genuine spare parts, after the warranty too.
Accredited maintenance centre
By the General Authority for Industrial Control.
Direct CONTEC agent
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
The final choice is made with the cardiologist. These are the uses the device is made for.
A cardiology clinic
A full day's recording shows what a resting ECG may miss.
You need fast analysis
Average review of one case in under 40 seconds over USB 2.0.
Patients with pacemakers
The software analyses pacemakers, and the recorder captures them at a high sampling rate.
Holter in one line: a small recorder worn for 24 hours records the ECG while the patient lives a normal day, then the physician reviews it in the software.
TLC9803 features
24 hours, 3 channels
10000 Hz sampling and 12-bit accuracy, capturing waveform detail and pacemaker spikes.
Small OLED screen
160×128, with waveform preview, record review and event marking.
Built-in TF card up to 2 GB
Raw data stored uncompressed, with no card to remove and reinsert.
Comprehensive analysis software
Arrhythmia, atrial fibrillation, ST, HRV, HRT, T-wave alternans and 10+ templates.
Real-time clock
The recording start time is logged exactly.

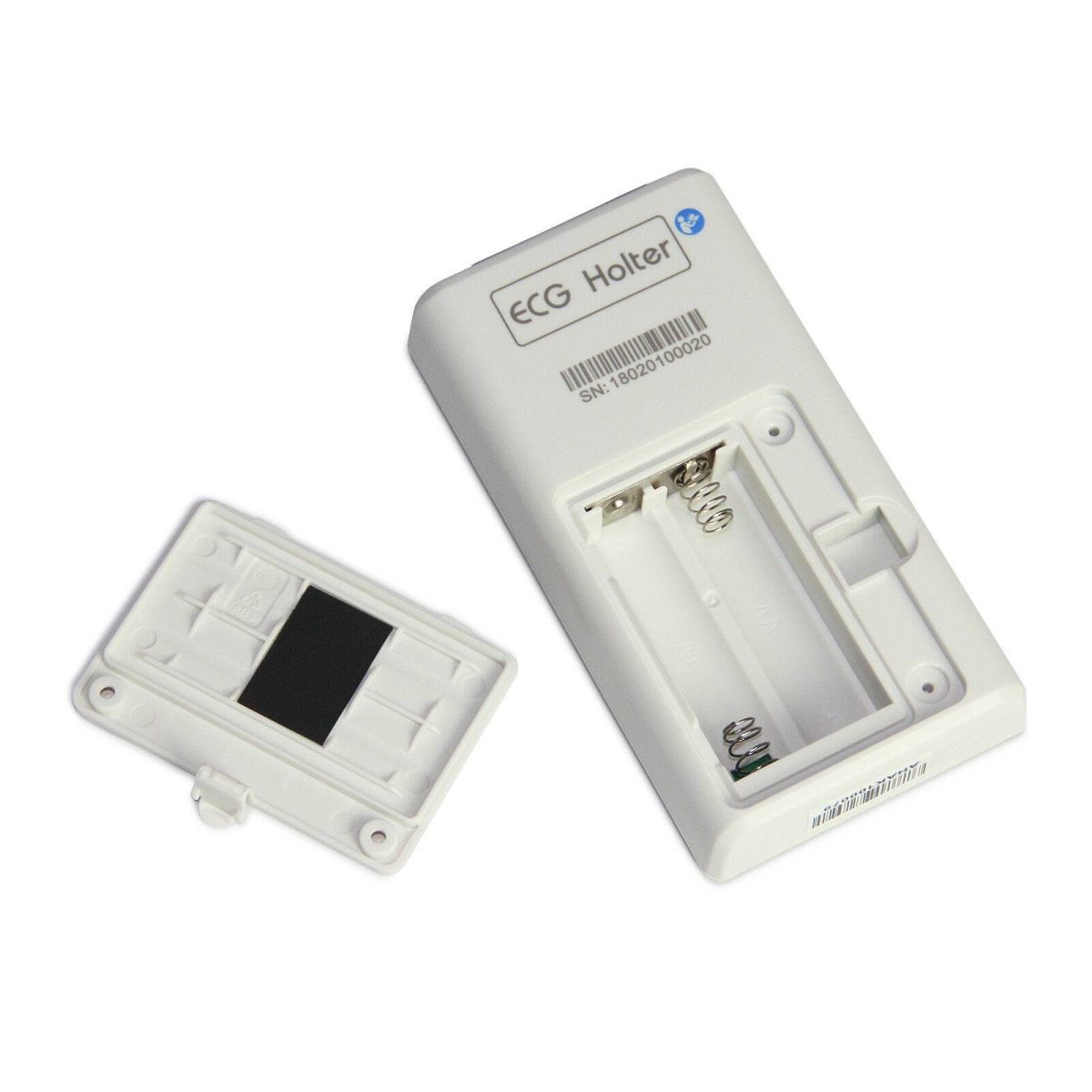

2 × AA batteries
111 × 60 × 25 mm.
Technical specifications
Safety
- Electrical safety class
- Type B (internally powered)
Monitoring
- Channels
- 3 channels
- Recording time
- 24 hours
- Analysis software
- Analysis software: arrhythmia, atrial fibrillation, ST, HRV, HRT, T-wave alternans, pacemaker analysis, 10+ templates
- Sampling rate
- 10000 Hz, 12-bit
- Signal specifications
- Noise ≤ 30 µV, CMRR ≥ 60 dB, polarization voltage ±300 mV, least signal 50 µVp-p
Display
- Display
- Small 160×128 OLED with waveform preview, record review and event marking
Data & connectivity
- Data storage
- Built-in TF card up to 2 GB, raw data stored uncompressed
- Data transfer
- USB
Power
- Battery
- 2 × AA batteries
Physical
- Weight
- 102 g
- Dimensions
- 111 × 60 × 25 mm
Warranty & after-sales
- Ali Ben Ali warranty
- 2 years
Frequently asked questions
About the TLC9803
What is the difference between a Holter and a resting ECG?
A resting ECG records a few minutes in the clinic. A Holter records 24 hours while the patient moves normally, catching what happens at different times of day.
Who reads the recording?
The cardiologist. The software analyses and displays; the diagnosis is the physician's decision.
Are leads and spares available?
Yes, genuine Holter leads and transfer cables are available from us.
What does it run on?
2 × AA batteries; recordings transfer to the computer over USB 2.0.
Can the patient mark a symptom?
Yes, there is an event-mark key on the recorder, and the physician finds the mark in the recording.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
We are a direct agent of the manufacturer; the device comes straight from the factory with the Ali Ben Ali warranty. You can also see it in person at any of our branches before you buy.
About usIs the device registered with the Egyptian Drug Authority?
Yes, this device is registered with the Egyptian Drug Authority.
How long is the warranty, and who provides it?
2 years from Ali Ben Ali from the date of purchase, on CONTEC devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device breaks after the warranty, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Service and genuine spare parts stay available for the device's whole life.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
