Monopolar diathermy · for minor surgeryNo reviews yet

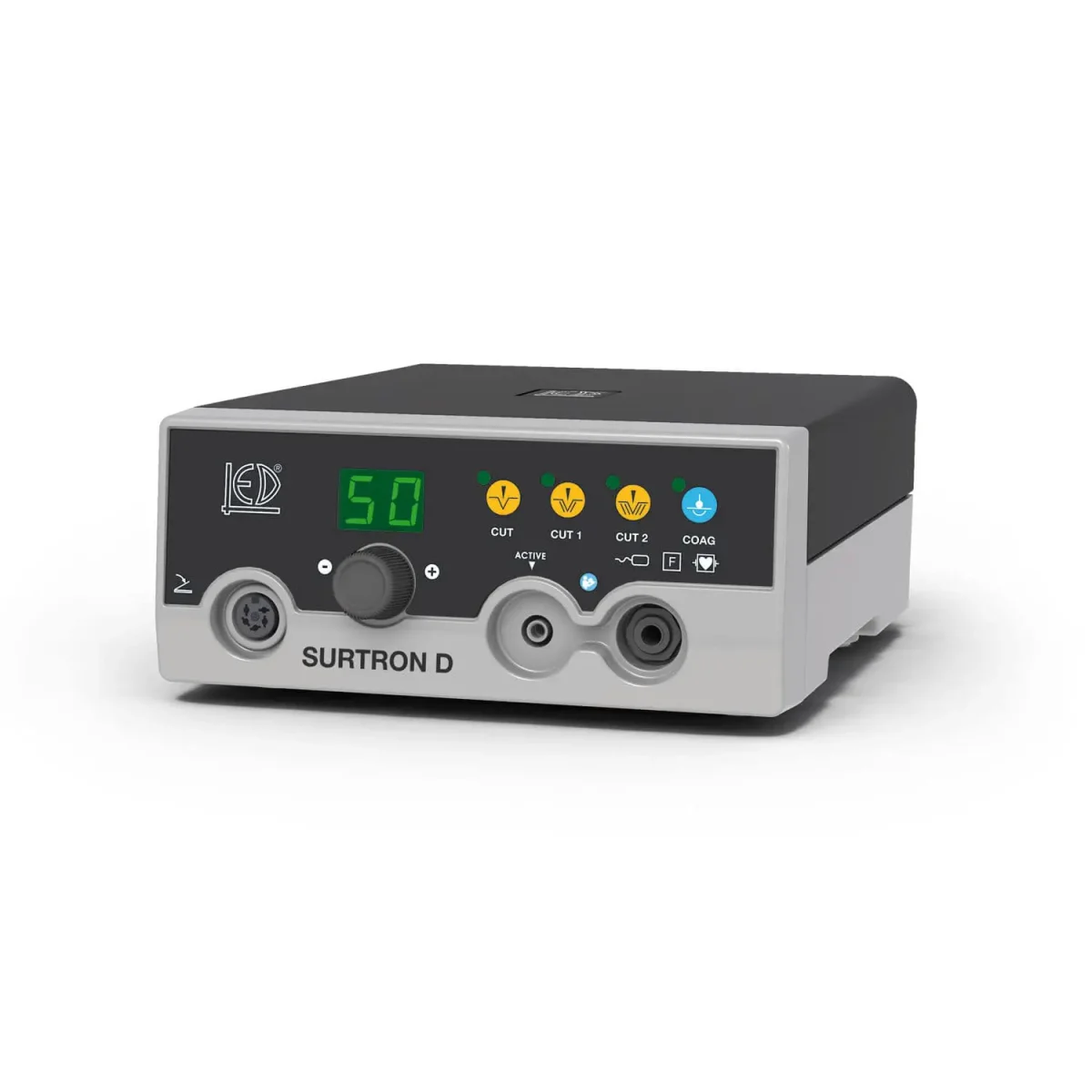

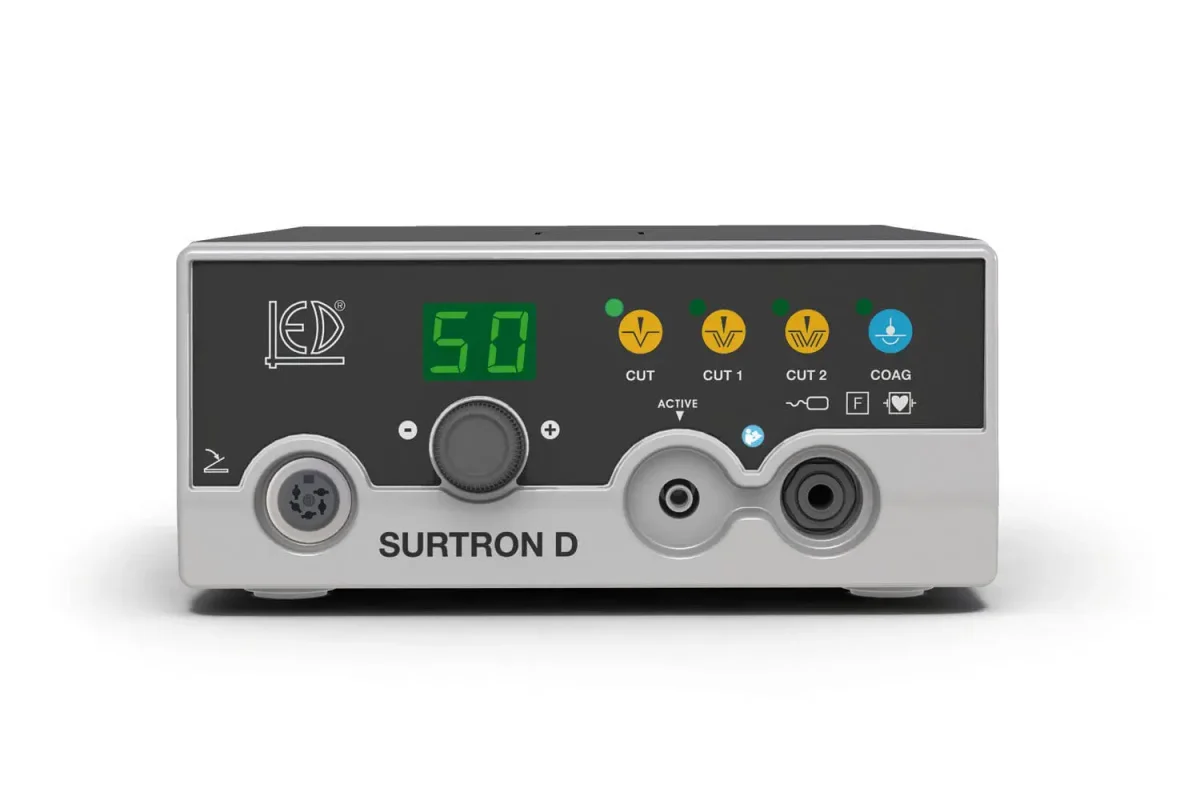

LED Surtron 50D Monopolar 50 W Electrosurgical Unit for Minor Surgery

Name: Diathermy Machine Surtron 50D (50 Watt)
Brand: LED
SKU: 46189
Price: 24699 EGP
Availability: InStock

A monopolar electrosurgical (diathermy) unit from Italy's LED SpA, made for minor surgery. It cuts at up to 50 W and offers pure cut, two cut-coagulation levels and coagulation, with a digital display. It weighs 2.5 kg. The surgeon sets the mode and power for each procedure.

Manufacturer certifications (LED):CE markISO 9001 (manufacturer)ISO 13485 (manufacturer)EUR.1 origin certificate

MonopolarFor minor surgery

Cut and coagPlus two cut-coag levels

CompactSmall and light

EGP 24,699In stock

Add to wishlist

Need help choosing?Our sales team answers on WhatsApp or by phone.

WhatsApp 01212333328

2-year warranty

On Surtron devices, from the date of purchase.

Lifetime service

Service and genuine spare parts, after the warranty too.

Accredited maintenance centre

By the General Authority for Industrial Control.

Direct LED agent

In the medical equipment trade since 1987, with 4 branches.

This device may suit you if...

The final choice is made with the surgeon or the biomedical engineering team. These are the uses the device is made for.

A dental, dermatology or day-surgery practice

Suited to dental, dermatology, ambulatory surgery, first aid and vascular surgery.

Your work is monopolar only

This unit is monopolar. For bipolar, the Surtron 80 and above have it.

You need a small unit

190 × 85 × 239 mm and 2.5 kg.

Monopolar vs bipolar in one line: in monopolar the current leaves the pen and returns through a neutral plate on the patient's body; in bipolar it passes only between the two tips of the forceps.

Surtron 50D features

Pure cut up to 50 W

At 400 Ω, with an on-board microcontroller controlling the output.

Two cut-coagulation levels

CUT/COAG 1 at 45 W and CUT/COAG 2 at 40 W.

Coagulation up to 40 W

COAG mode at 400 Ω.

Digital display and self check

Output power monitoring and a self check.

Genuine accessories available

Genuine LED handles, cables and foot switches are available from us.

Runs on 115 or 230 V

Selectable voltage, 50–60 Hz.

Technical specifications

Output & modes

Output type: Monopolar
Maximum cutting power: 50 Wat 400 Ω
Maximum monopolar coagulation power: 40 WCOAG, at 400 Ω
Cutting and coagulation modes: Pure CUT, cut-coagulation CUT/COAG 1 and CUT/COAG 2, and COAG
Output per mode: CUT 50 W / 400 Ω · CUT/COAG1 45 W / 400 Ω · CUT/COAG2 40 W / 400 Ω · COAG 40 W / 400 Ω
Working frequency: 600 kHz

Safety

Safety controls: Output power monitoring, self check
Electrical safety and standards: Class I, type CF · EN 60601-1, EN 60601-1-2, EN 60601-2-2 · MDD 93/42/EC class IIb

Power

Power input: 115/230 V AC selectable, 50–60 Hz
Electrical input power: 280 VA

Physical

Weight: 2.5 kg
Dimensions: 190 × 85 × 239 mmW × H × D

Warranty & after-sales

Ali Ben Ali warranty: 2 years

Identity

Specialties: Dental, dermatology, ambulatory surgery, first aid, vascular surgery, veterinary

Download the full catalog (PDF)

Compare with other Electrosurgical unit devices

Show differences only

	SURTRON 50DThis page	SURTRON 80Go to product	SURTRON 120Go to product
Output type	Monopolar	Monopolar and bipolar (bipolar with a special adapter)	Monopolar and bipolar (bipolar with a special adapter)
Maximum cutting power	50 W (at 400 Ω)	80 W (at 250 Ω)	120 W (at 250 Ω)
Maximum monopolar coagulation power	40 W (COAG, at 400 Ω)	50 W (FORCED COAG, at 150 Ω)	80 W (FORCED COAG, at 150 Ω)
Bipolar coagulation power	–	30 W (at 100 Ω)	40 W (at 100 Ω)
Cutting and coagulation modes	Pure CUT, cut-coagulation CUT/COAG 1 and CUT/COAG 2, and COAG	Pure CUT, cut-coagulation BLEND, superficial FORCED COAG, deep SOFT COAG without necrosis, BIPOLAR coagulation	Pure CUT, cut-coagulation BLEND, superficial FORCED COAG, deep SOFT COAG without necrosis, BIPOLAR coagulation
Working frequency	600 kHz	600 kHz	600 kHz
Minimally invasive surgery	–	Yes	Yes
Activation from handpiece or pedal	–	Yes	Yes
Settings memory	–	Remembers the last settings used; working conditions can be planned	Remembers the last settings used; working conditions can be planned
Neutral-plate contact monitoring	–	Yes	Yes
Electrical input power	280 VA	230 VA	300 VA
Weight	2.5 kg	5 kg	5 kg
Dimensions	190 × 85 × 239 mm (W × H × D)	254 × 104 × 288 mm (W × H × D)	254 × 104 × 288 mm (W × H × D)
Ali Ben Ali warranty	2 years	2 years	2 years

A dot next to a value means it differs from the device on this page.

Frequently asked questions

About the SURTRON 50D

What is the difference between the Surtron 50D and the Surtron 80?

The 50D is monopolar only, cuts at up to 50 W and weighs 2.5 kg. The Surtron 80 is monopolar and bipolar (bipolar with a special adapter), cuts at up to 80 W, adds BLEND, superficial and deep coagulation, monitors the neutral plate, and weighs 5 kg.

Who sets the mode and power?

The surgeon sets the mode and power for each procedure and tissue. The unit shows the settings on a digital display.

Does it monitor the neutral plate?

Patient/plate circuit monitoring is on the 80D only, not the 50D. The 50D monitors its output power and runs a self check. Surtron units from the 80 up monitor the neutral plate.

Are accessories and spare parts available?

Yes, genuine LED accessories such as handles, cables and foot switches are available from us.

What power supply does it need?

115 or 230 V, selectable, 50–60 Hz; electrical input power 280 VA.
