Applications:
– During surgery
– In reanimation
– On dehydrated patients
Flow and performance:
| Flow | From 0.1 To 1 500 Ml/H |
| VTBI | 0.1 To 999.9 Ml/H, Increment Is 0.1 Ml/H, 1 000 To 9 999 Ml/H, Increment Is 1 Ml/H |
| Accumulated Volume | 1 – 9999ml |
| Accuracy: ± 5% • KVO Rate | 0.5 Ml/H |
| Bolus Rate | From 0,10 To 1 500 Ml/H |
| Occlusion | · Low: 150 ± 125 MmHg
· Medium: 525 ± 125 MmHg · High: 900 ± 180 MmHg
|
| Air Bubble Detection | · Single Bubble Detection: 50, 100, 250, 500 And 800 Μl
· Accumulated Bubble Detection: From 0.1 To 4.0 Ml/H
|
Display:
- Flow rate
- Programmed volume
- Accumulated infusion volume
- Battery load indicator
- Over (infusion completed)
Technical data:
| Flow | 1 500ml/h |
| Accumulated volume | 1 – 9999 ml |
| Accuracy | ± 5% |
| Alarm volume | 8 levels |
| Dimensions | 146 x 193 x 95 mm |
| Weight | 1.6 Kg |
| Power | 100-240V, 50/60 HZ |
| Battery | Lithium Battery operation time: > 4 hours @ 25 ml/h |
| Charging time | ≥ 6 hours |
| Data interface | RS232 |
Alarm:
- VTBI done, VTBI near done, VTBI finish
- Bottle empty
- Door open
- Occlusion
- Air in line
- System error, system abnormal
- Battery low, battery empty
- Reminder
- AC power disconnection
Ergonomy:
- 2.5 LCD screen
- Embedded handle for easy transportation
- Anti-free flow clamp
Application fields
- Intensive care
A continuous infusion is vital to any dehydrated patient.
The flow rate is conditioned by the required volume and the duration of the infusion:
Volume to infuse = initial deficit to compensate (1) + maintenance need (2) + loss (3)
- Deficit to compensate in liter = Weight (Kg) x % of dehydration / 100
During surgery:
| Low blood loss | 10 ml/kg/h / with |
| Normal blood loss | 15 ml/kg/h |
| High blood loss | 20 ml/kg/h |
| Infusion liquid | Lactated Ringer’s solution |
| Post-operatory care until discharge | 2 ml/kg/h |
| Infusion liquid | 1/3 of isotonic sodium chloride solution, 2/3 of isotonic glucose solution |
Long-term infusion:
- Long-term infusions show much better results than other ways of administration.
Accuracy:
- By means of an IV pump the animal can be supplied with exactly the necessary volume of medication or liquid according to its size and needs.

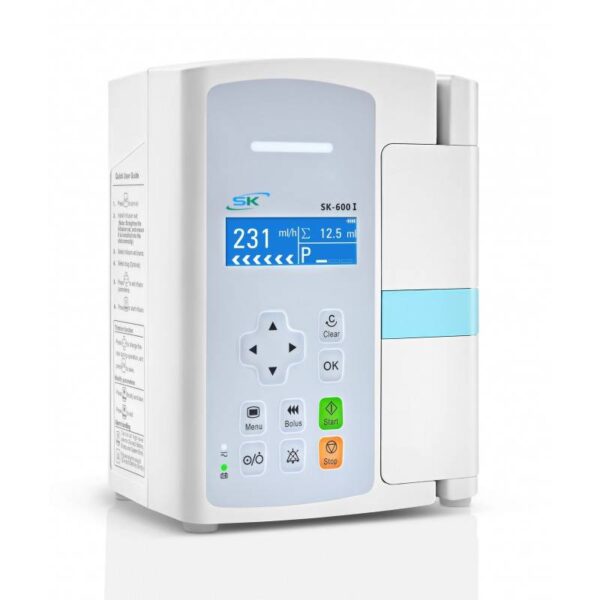

SK 600I V2 beneficial:
- SK 600I V2 infusion pump can be used with most of the current IV sets. The investment gives an excellent return. Moreover, an infusion pump is comfortable and safe both for you and your client and ensures advanced care efficiency.
