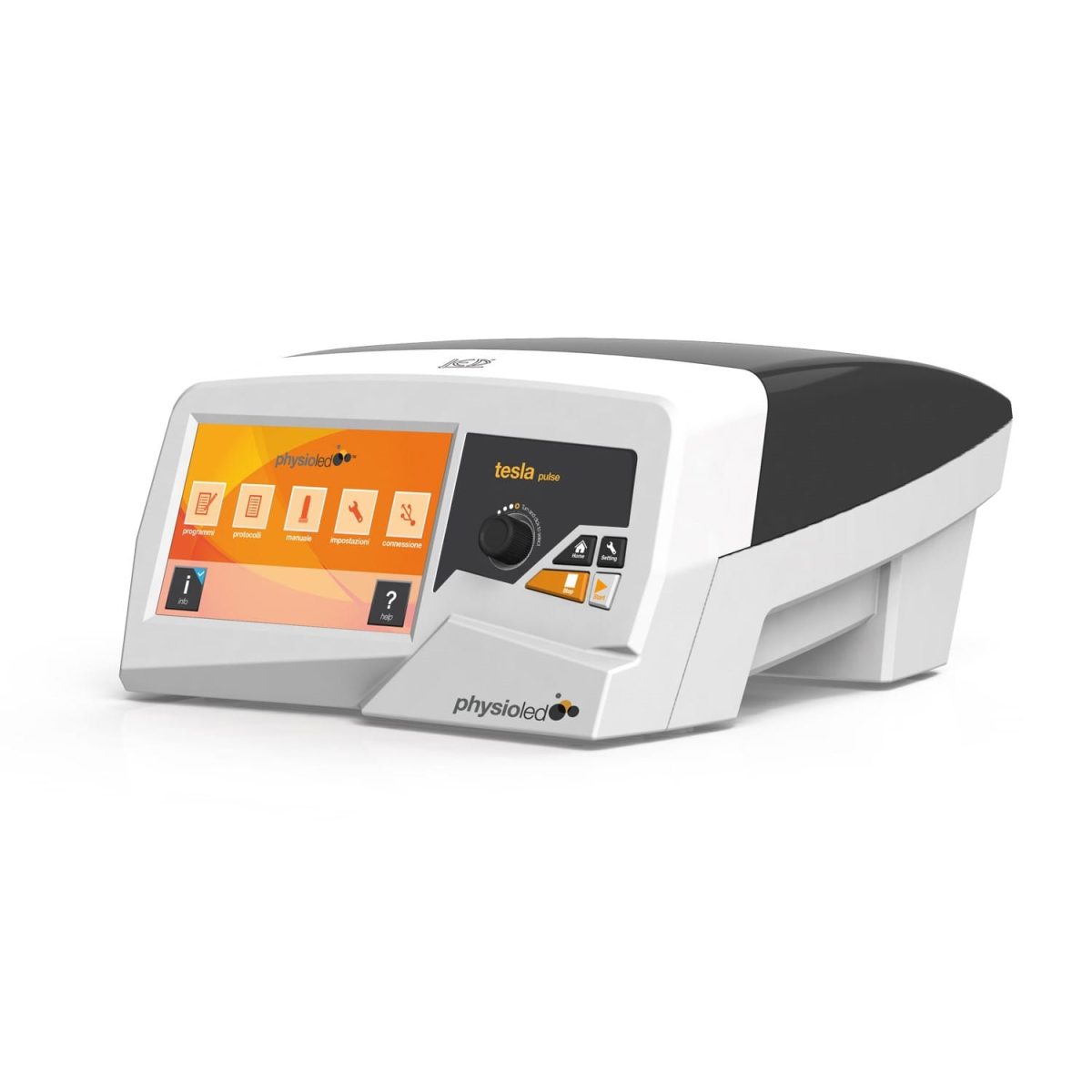

LED PhysioLED Tesla Pulse Magnetotherapy Unit with 1 T Pulsed Field
A magnetotherapy unit from Italy's LED SpA with two methods: a low-frequency (BF) field of up to 100 Gauss at 2 to 100 Hz, and a pulsed (PULSE) field of up to 1 T (10 kGauss) from the TSLM01 handpiece at 0.5 to 5 Hz. Each output can be activated individually, with 45 stored protocols and a 7-inch touchscreen. The physiotherapist or doctor sets the parameters.
2-year warranty
On PhysioLED devices, from the date of purchase.
Lifetime service
Service and genuine spare parts, after the warranty too.
Accredited maintenance centre
By the General Authority for Industrial Control.
Direct LED agent
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
Treatment decisions and settings belong to the doctor or physiotherapist. These are the uses the device is made for.
A physiotherapy or orthopaedic clinic
Low-frequency and pulsed magnetotherapy in one unit.
You need a strong pulsed field

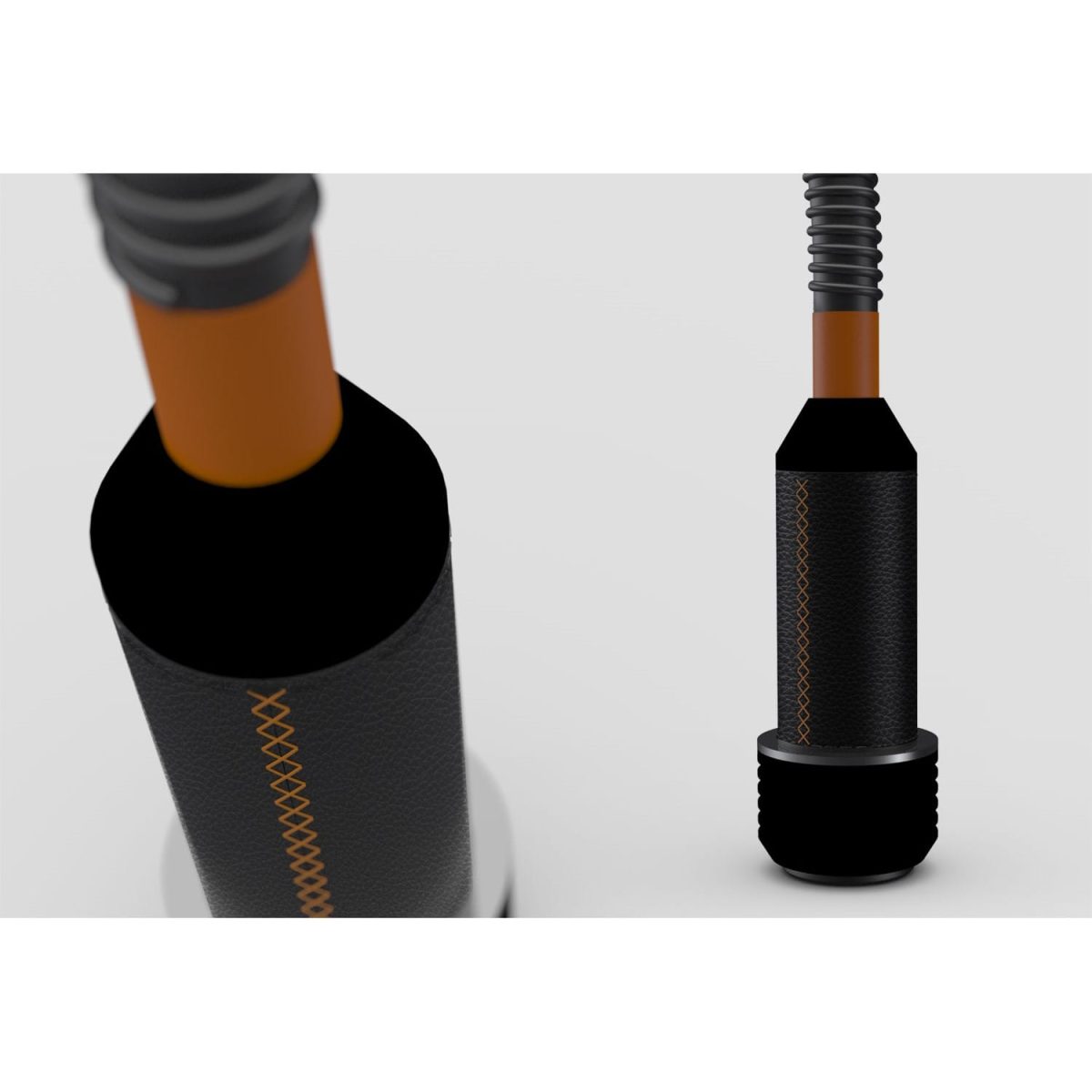

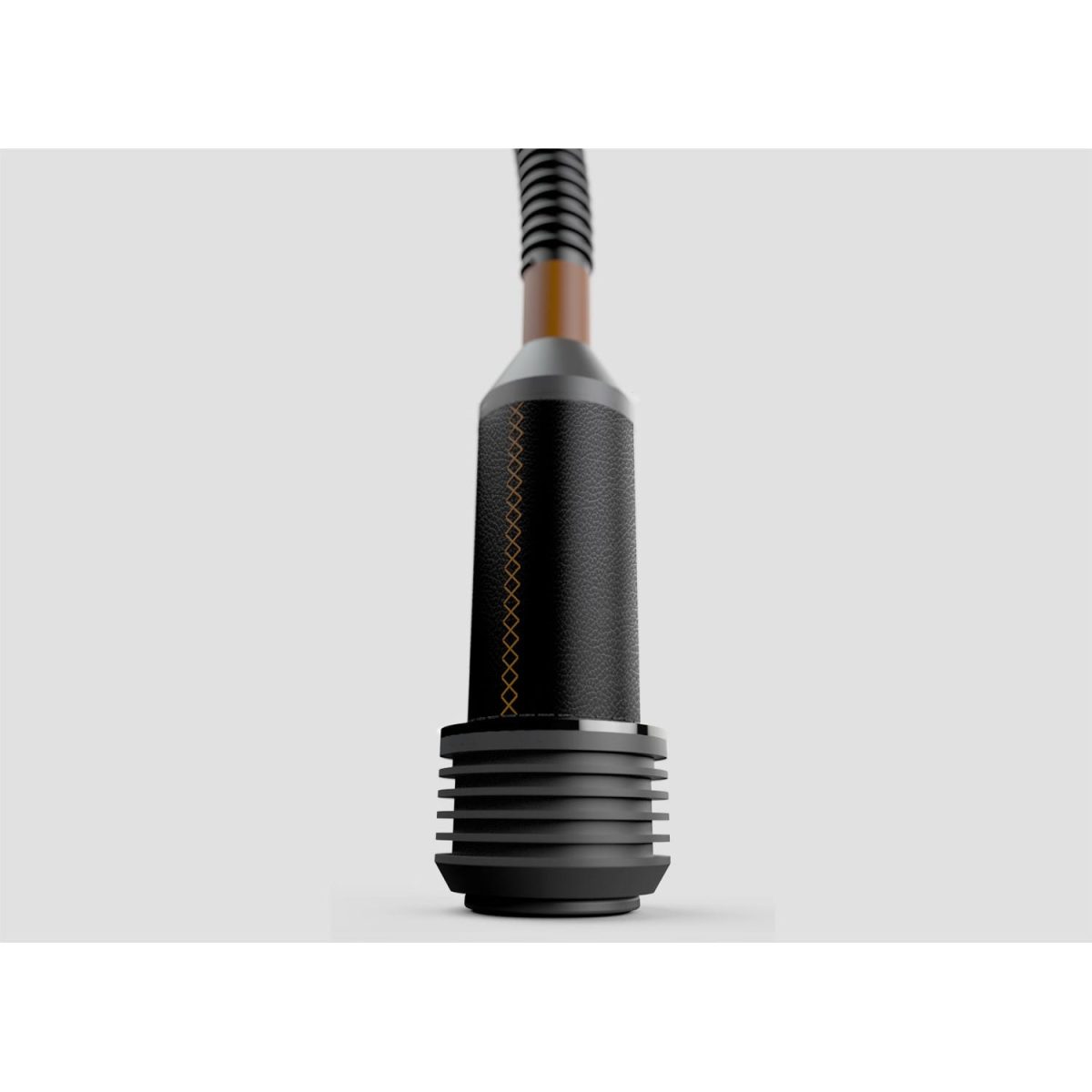

TSLM01 handpiece with an interchangeable circular head, up to 1 T.
You already use magnetotherapy plates
Accepts a pair of TSLP01 plates (100 Gauss) as an optional accessory and recognises the connected accessory automatically.
Magnetotherapy in one line: a low-frequency magnetic field with a negligible electric field and negligible heat; in PULSE mode the handpiece emits strong magnetic pulses of 1 msec each.
See the device on video
The manufacturer's device video · Tesla PulseTesla Pulse features
Pulsed field up to 1 T
PULSE up to 10 kGauss, 0.5 to 5 Hz, 1 msec pulses.
Low-frequency magnetotherapy
BF up to 100 Gauss (10 mT), 2 to 100 Hz.
Two independent outputs
One for a pair of plates and one for the PULSE handpiece, each activated individually.
Accessory recognition
Automatic; maximum intensity follows the connected accessory.
7-inch touchscreen
45 stored protocols, your own saved programs, sessions in 1 to 3 phases.
Technical specifications
Safety
- Electrical safety and standards
- Class I, type BF · EN 60601-1 · Directive 93/42/CE as amended by 2007/47/CE
Therapy
- Output
- BF: up to 100 Gauss (10 mT), depending on the accessory · PULSE: up to 10 kGauss (1 T), pulse duration 1 msec
- Frequency
- BF: 2–100 Hz · PULSE: 0.5–5 Hz
- Modes
- 1 to 3 phases; plate placement COHERENT, NORMAL-EXTENDED or NORMAL
- Channels
- One output for a pair of flat plates and one for the PULSE handpiece, each activated individually
- Handpieces and applicators
- Pulse magnetotherapy handpiece TSLM01 with an interchangeable circular head; accepts a pair of TSLP01 plates (100 Gauss) as an optional accessory; automatic recognition of the connected accessory
- Treatment time
- 1–60 min
- Programs
- 45 stored protocols, plus your own saved programs
Display
- Screen size
- 7 inch
- Touchscreen
- Yes
Power
- Power input
- 90–240 V AC, 50–60 Hz
- Electrical input power
- 120 VA
Physical
- Weight
- 7 kg
- Dimensions
- 170 × 315 × 390 mmH × W × D
Warranty & after-sales
- Ali Ben Ali warranty
- 2 years
Identity
- Therapy type
- Low-frequency (BF) plus pulsed (PULSE) magnetotherapy
Compare the Tesla magnetotherapy units
| Tesla PulseThis page | TeslaGo to product | |
|---|---|---|
| Therapy type | Low-frequency (BF) plus pulsed (PULSE) magnetotherapy | Low-frequency (ELF) magnetotherapy |
| Output | BF: up to 100 Gauss (10 mT), depending on the accessory · PULSE: up to 10 kGauss (1 T), pulse duration 1 msec | Up to 100 Gauss (10 mT) with the TSLP01 plates |
| Frequency | BF: 2–100 Hz · PULSE: 0.5–5 Hz | 2–100 Hz |
| Modes | 1 to 3 phases; plate placement COHERENT, NORMAL-EXTENDED or NORMAL | 1 to 3 phases; plate placement COHERENT, NORMAL-EXTENDED or NORMAL |
| Channels | One output for a pair of flat plates and one for the PULSE handpiece, each activated individually | One output for a pair of flat plates and one for a cylinder, usable at the same time |
| Handpieces and applicators | Pulse magnetotherapy handpiece TSLM01 with an interchangeable circular head; accepts a pair of TSLP01 plates (100 Gauss) as an optional accessory; automatic recognition of the connected accessory | Two TSLP01 plates (100 Gauss); accepts TSLC24 (24 cm, 100 Gauss), TSLC50 and TSLC60 (80 Gauss) cylinders as optional accessories; automatic recognition of the connected accessory |
| Treatment time | 1–60 min | 1–60 min |
| Programs | 45 stored protocols, plus your own saved programs | 45 stored protocols, plus your own saved programs |
| Screen size | 7 inch | 7 inch |
| Touchscreen | Yes | Yes |
| Electrical input power | 120 VA | 120 VA |
| Weight | 7 kg | 3.5 kg |
| Dimensions | 170 × 315 × 390 mm (H × W × D) | 170 × 315 × 390 mm (H × W × D) |
| Ali Ben Ali warranty | 2 years | 2 years |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the Tesla Pulse
What is the difference between the Tesla Pulse and the Tesla?
The Tesla Pulse has a pulsed magnetotherapy handpiece of up to 1 T (10 kGauss) at 0.5 to 5 Hz, takes plates as an optional accessory and weighs 7 kg. The Tesla works with two TSLP01 plates of up to 100 Gauss at 2 to 100 Hz, accepts cylinders, and weighs 3.5 kg.
Who sets the session parameters?
The physiotherapist or doctor sets intensity, frequency, duration and plate placement for each session. The unit holds 45 stored protocols, and you can save your own programs.
Who should not be treated with it?
Contraindications include a pacemaker or other implanted electronic device (or being near a patient who has one), pregnancy, and joint prostheses or metal implants. The doctor decides.
What power supply does it need?
90–240 V, 50–60 Hz; electrical input power 120 VA.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
We are a direct agent of the manufacturer; the device comes straight from the factory with the Ali Ben Ali warranty. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
2 years from Ali Ben Ali from the date of purchase, on PhysioLED devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device breaks after the warranty, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Service and genuine spare parts stay available for the device's whole life.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
