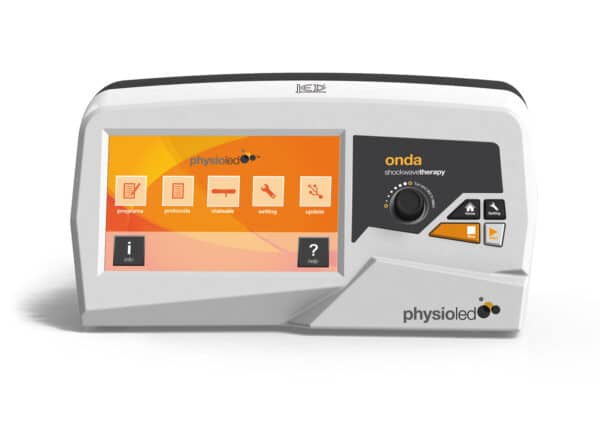

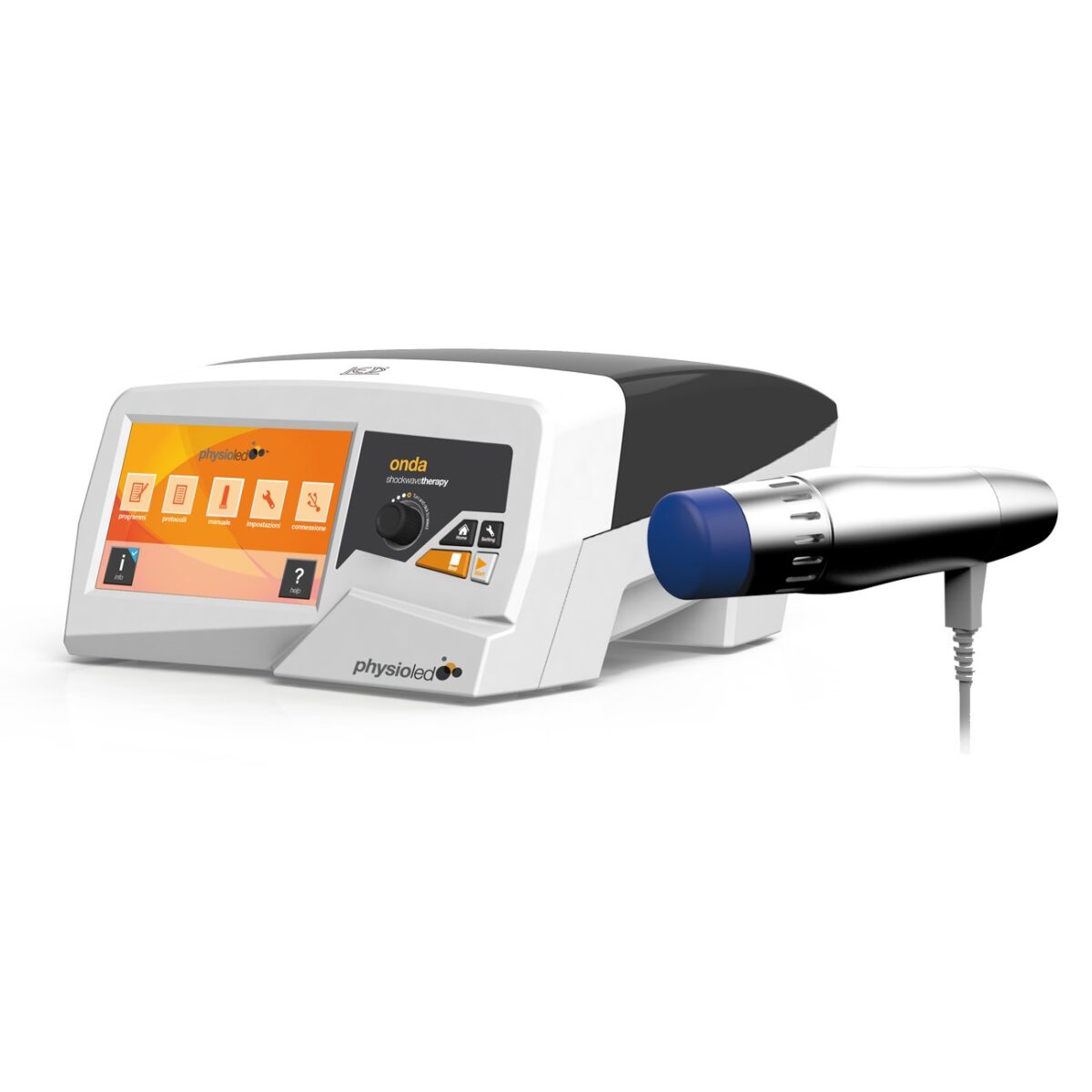

LED PhysioLED Onda Radial Shockwave Unit up to 185 mJ
A radial shockwave unit from Italy's LED SpA. Its ballistic handpiece drives an internal projectile with a magnetic field, delivering 60 to 185 mJ (equivalent to 1–6 bar on pneumatic systems) at 1 to 22 Hz, with interchangeable 6, 15 and 25 mm heads. It weighs only 3.7 kg and holds 33 stored protocols. The physiotherapist or doctor sets the parameters.
2-year warranty
On PhysioLED devices, from the date of purchase.
Lifetime service
Service and genuine spare parts, after the warranty too.
Accredited maintenance centre
By the General Authority for Industrial Control.
Direct LED agent
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
Treatment decisions and settings belong to the doctor or physiotherapist. These are the uses the device is made for.
A physiotherapy, orthopaedic or sports clinic
Radial shockwave without an air compressor, from a ballistic handpiece and a foot switch.
You work in more than one place
A compact 3.7 kg unit.
You want control over shot count
100 to 3000 shots, continuous or Burst 4, 8 and 12.
Radial shockwave in one line: a projectile inside the handpiece, driven by a magnetic field, strikes the head and sends a mechanical pressure wave spreading out from it.
See the device on video
The manufacturer's device video · OndaOnda features
Up to 185 mJ
60 to 185 mJ, equivalent to 1–6 bar on pneumatic systems.
Frequency and modes
1 to 22 Hz, continuous or Burst 4, 8 and 12, in 1 to 3 phases.
3 interchangeable heads
6, 15 and 25 mm on one handpiece.
Foot-switch activation
Delivery stops as soon as you release the foot switch.
Shot counter
Shots shown on screen; the handpiece records its total hits.
7-inch touchscreen
33 stored protocols, plus your own saved programs.
Technical specifications
Safety
- Safety controls
- Delivery stops as soon as the foot switch is released; shot counter on screen; the handpiece records its total hits and asks for a revision at 2,000,000 hits
- Electrical safety and standards
- Class I, type BF · IPX0 · EN 60601-1 · Directive 93/42/EC as amended by 2007/47/EC · for professional use only
Therapy
- Output
- Energy 60–185 mJ (equivalent to 1–6 bar on pneumatic systems)
- Frequency
- 1–22 Hz
- Modes
- Continuous or Burst 4 / 8 / 12; 100–3000 shots; 1 to 3 phases
- Handpieces and applicators
- Ballistic handpiece whose internal projectile is driven by the magnetic field of coils; interchangeable heads 6, 15 and 25 mm; foot-switch activation
- Treatment time
- Set by shot count: 100–3000 shots
- Programs
- 33 stored protocols, plus your own saved programs
Display
- Screen size
- 7 inch
- Touchscreen
- Yes
Power
- Power input
- 90–240 V AC, 50–60 Hz
- Electrical input power
- 250 VA
Physical
- Weight
- 3.7 kg
- Dimensions
- 170 × 315 × 390 mmH × W × D
Warranty & after-sales
- Ali Ben Ali warranty
- 2 years
Identity
- Therapy type
- Radial shockwave
Frequently asked questions
About the Onda
Who sets the session parameters?
The physiotherapist or doctor sets energy, frequency, shot count and head for each session. The unit holds 33 stored protocols, and you can save your own programs.
When does the handpiece need a revision?
The handpiece records its total hits; at 2,000,000 hits the unit reminds you at start-up that it needs a revision. Our maintenance centre carries it out.
Who should not be treated with it?
Contraindications include a pacemaker or other implanted electronic device, pregnancy, and reduced skin sensation. The doctor decides.
What power supply does it need?
90–240 V, 50–60 Hz; electrical input power 250 VA.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
We are a direct agent of the manufacturer; the device comes straight from the factory with the Ali Ben Ali warranty. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
2 years from Ali Ben Ali from the date of purchase, on PhysioLED devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device breaks after the warranty, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Service and genuine spare parts stay available for the device's whole life.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
