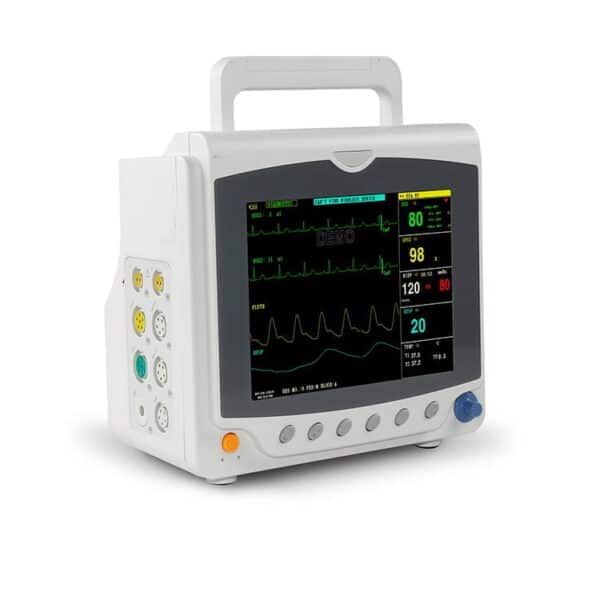

5 Function 8.4 inch Patient Monitor CMS6000-مونيتور 5 وظيفة 8.4 بوصة

Specifications

• The monitor has abundant monitoring functions and is used for monitoring of adult, pediatric and neonate.
• User may select different parameter configurations according to different requirements.
• It displays real-time data and waveform by 8” TFT color LCD, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously.
• 48mm thermal printer is optional.
• In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.
• This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP, etc.
• It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment.
• At the same time, its built-in replaceable battery provides convenience for patient moving.

Main Features

• 8” TFT color LCD, multi-language interface (Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
• Fan less design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
• All-round monitor for adult, pediatric and neonate.
• With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.
• Waveform, parameter color and location can be set optionally.
• Operation mode: keys and buttons.
• Display up to 8-channel waveform on one screen.
• Display 7-lead ECG waveform on one screen, and with ECG step function.
• Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
• HRV analysis function.
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• Print trend table data with one-key.
• Connect to Central Monitoring System by 3G, WIFI or wired mode.
• AC/DC, built-in rechargeable lithium battery achieves uninterrupted monitoring.
• Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
