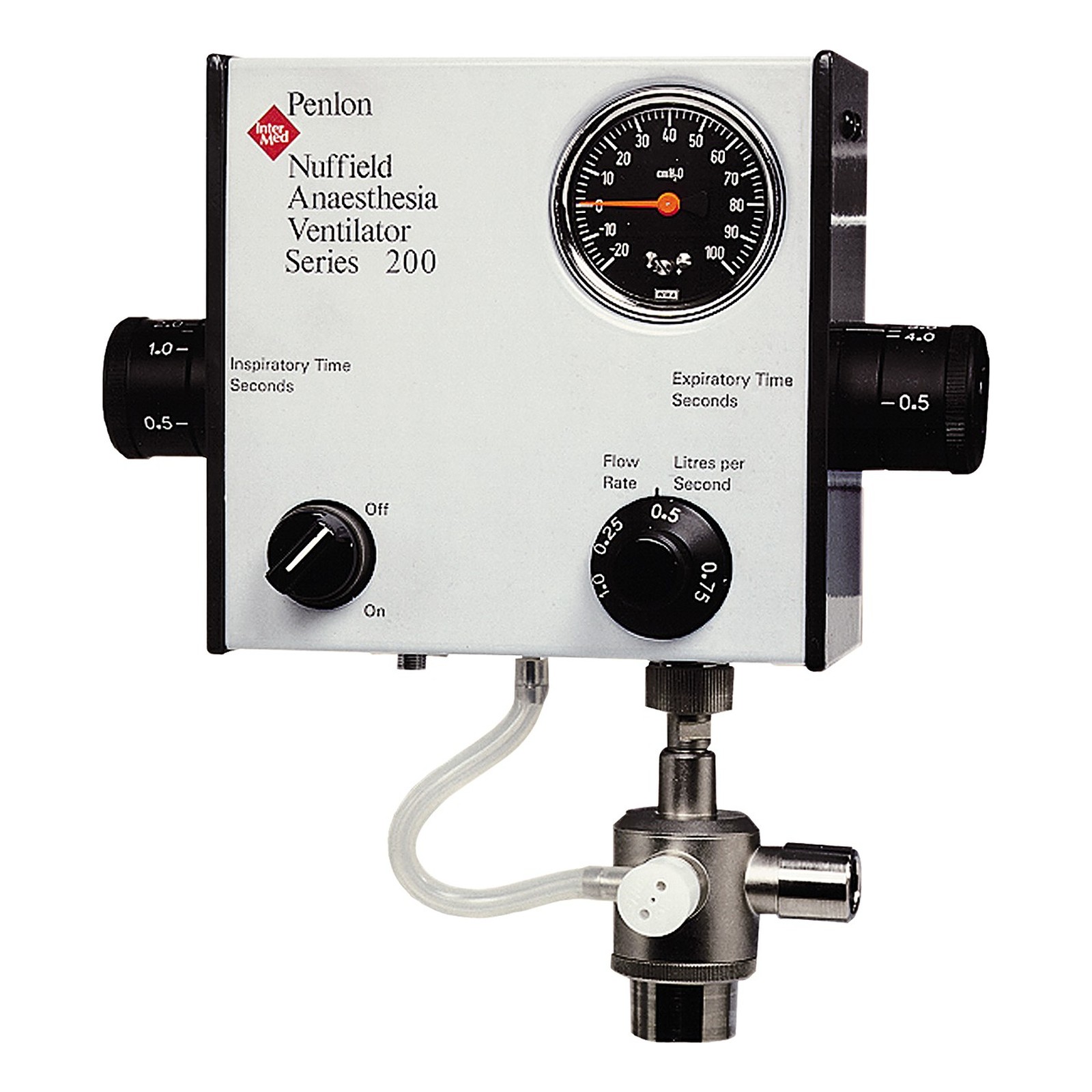

Anesthesia Ventilator Penlon Nuffield 200

Specifications

»The Nuffield 200 Ventilator has an enviable reputation as a reliable compact, powerful and easy to use anesthesia ventilator and is primarily for use with a Bain Co-Axial Circuit.

»The ventilator is equally suitable for use with an Ayre’s Tee Circuit for resuscitation, for High-Frequency Positive Pressure Ventilation with the use of a bronchoscope injector, and in a closed-circuit system incorporating a CO2 absorber.

»The time-cycled Penlon Nuffield 200 is powered by medical air or oxygen at 340 kPa- 410 kPa and has pre-set volume and flow rate for small and large animals. You can replace the standard patient valve with a Newton Valve and the ventilator range is further extended to include ventilation of small animals — a considerable achievement for a small, inexpensive ventilator. A considerable achievement for a small, inexpensive ventilator.

»The Nuffield 200 is a pneumatically driven time-cycled ventilator with preset volume and flow rate for adult or pediatric patients. The four simple controls provide a wide range of settings that enable a constant flow during the inspiratory phase and infinite variability of I: E settings. A suitable ventilator alarm and pollution control system can be attached to the ventilator if required.

»The Penlon Series 200 requires a higher drive pressure to work. It will not work with an O2 concentrator due to their low-pressure output.

• Compact, easy to use
• Multi-use capabilities, including Co-Axial Circuit, Ayre’s Tee Circuit, Circle System and Resuscitation
• Comes with adult & pediatric valve
• Standard Schrader probe oxygen hose fitting
• MRI compatible (optional)
• Main unit and valves can be sold separately – please ask

Technical Specifications
