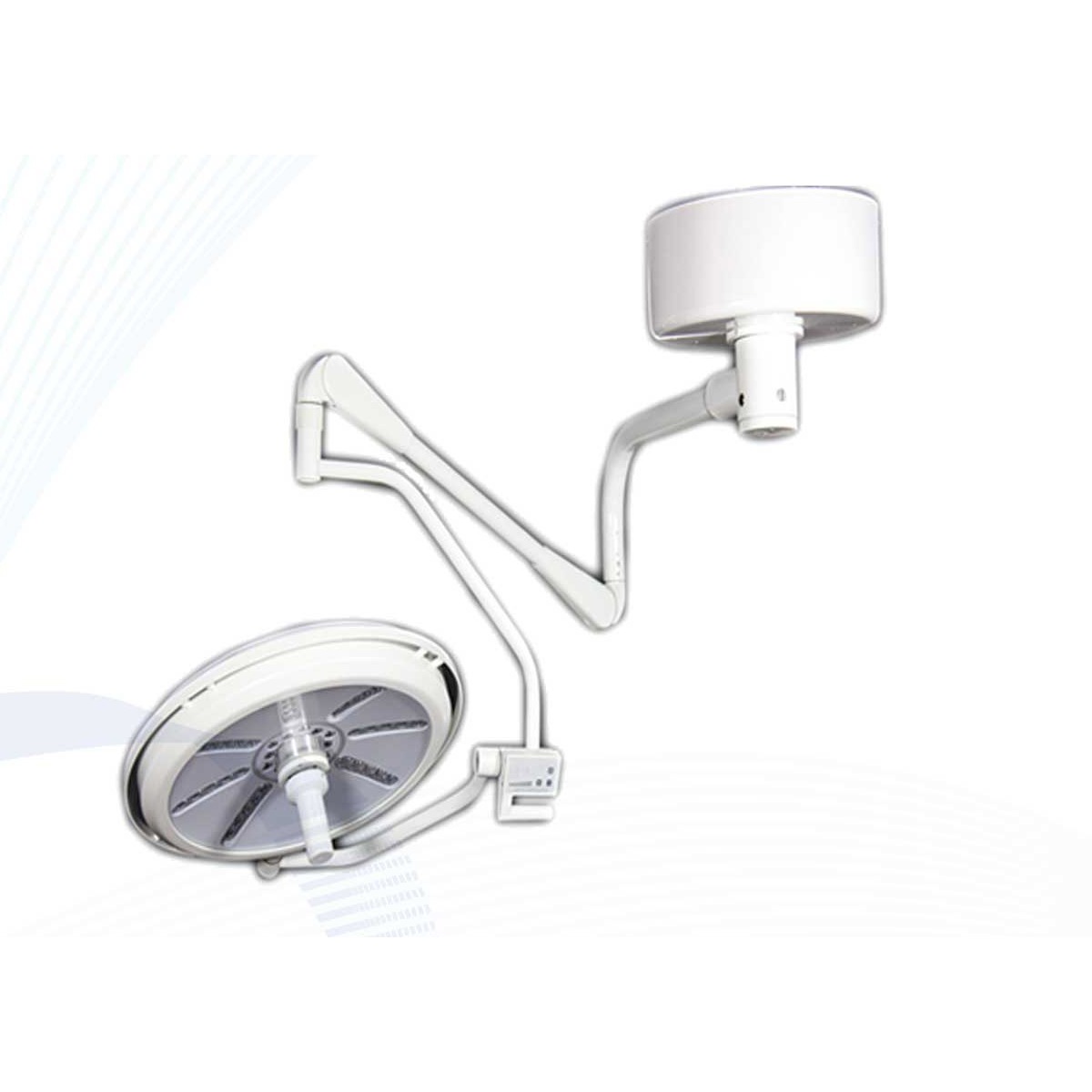

TRIUP TR2013-620 Single Head Ceiling LED Operating Light
A ceiling-mounted single-head LED operating light with a 670 mm head and 46 CREE bulbs, at least 160,000 lux and a colour rendering index of at least 97%. Its six-dimensional joint rotates 360 degrees, and the dimmer sets the illumination to the user's need. The surgical team decides the right light level.
2-year warranty
On the operating lights, from the date of purchase.
Accredited maintenance centre
By the General Authority for Industrial Control.
CE and ISO 13485
Manufacturer certifications.
Direct TRIUP agent
In the medical equipment trade since 1987, with 4 branches.
This light may suit you if...
The final choice is with the surgical team or hospital management. These are the uses the light is made for.
A major operating theatre
The brightest in the range.
You want lower running cost
LED saves over 75% against ordinary bulbs.
You want less maintenance
A 50,000-hour bulb life.
A ceiling light in one line: it fixes to the theatre ceiling on an arm that turns in every direction, so the floor stays clear.
TR2013-620 features
46 imported CREE LED bulbs
A cold light source.
At least 160,000 lux
With a colour rendering index of at least 97%.
670 mm lamp head
The largest head in the TRIUP range.
Six-dimensional joint, 360 degrees
Full movement around the surgical field.
Dimmer system
Sets the illumination to the user's need.
50,000-hour bulb life
And over 75% energy saved against ordinary bulbs.
Technical specifications
Output & modes
- Illuminance
- 160000 luxminimum
- Colour rendering index
- >= 97%
- Number of LED bulbs
- 46imported CREE LED
- Bulb life
- 50,000 hours
Power
- Power supply
- ~220 V, 50 Hz
- Input power
- 400 VA
Physical
- Lamp head diameter
- 670 mm
- Installation height
- Lowest installation height 2600 mm
- Materials
- Imported CREE cold LED light source, streamlined design
Warranty & after-sales
- Ali Ben Ali warranty
- 2 years
Identity
- Mounting
- Ceiling mounted, single head
- Adjustments
- Six-dimensional joint, 360 deg; a dimmer system that sets the illumination to the user's need
Compare with other Operating and examination lights devices
| TR2013-620This page | TRLEDSZ4Go to product | TR2015D-350Go to product | TR2015B-03Go to product | |
|---|---|---|---|---|
| Mounting | Ceiling mounted, single head | Ceiling mounted, single head | Mobile, on a wheeled stand | Mobile, on a wheeled stand |
| Illuminance | 160000 lux (minimum) | 100000 lux (40,000 - 100,000 lux at 1 m) | 70000 lux (minimum) | 10000 lux (minimum) |
| Colour temperature | – | 4500 +- 500 K | 4000 +- 500 K | 3300 +- 500 K |
| Colour rendering index | >= 97% | Ra between 85 and 100 | >= 85 | – |
| Number of LED bulbs | 46 (imported CREE LED) | 32 | 21 (3 W each, 63 W total) | – |
| Lamp head diameter | 670 mm | – | – | – |
| Spot diameter | – | D10: 180 +- 40 mm; D50: 110 +- 35 mm; light field diameter at 1 m: 10 - 28 cm | 150 - 300 mm | 100 - 150 mm |
| Working distance | – | 70 - 140 cm | – | – |
| Bulb life | 50,000 hours | 50,000 hours | – | – |
| Power supply | ~220 V, 50 Hz | 100 - 240 V, 50/60 Hz | ~220 V; LED bulbs at DC 24 V | – |
| Input power | 400 VA | 60 VA | 90 VA | – |
| Adjustments | Six-dimensional joint, 360 deg; a dimmer system that sets the illumination to the user's need | Stepless digital brightness regulation; the light field size is adjusted from the handle; the handle sheath is removable and can be disinfected | – | – |
| Height adjustment | – | – | – | Height adjustable over 400 mm |
| Installation height | Lowest installation height 2600 mm | Ceiling height for installation 270 - 320 cm | – | – |
| Materials | Imported CREE cold LED light source, streamlined design | No-welding titanium alloy arm with an imported spring; ultrathin optical lens; heat-to-light ratio under 6 mW/m2 lx | – | – |
| Weight | – | – | 29 kg | – |
| Specialties | – | – | – | Dental and gynaecological small surgery, and examination |
| Ali Ben Ali warranty | 2 years | 2 years | 2 years | 2 years |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the TR2013-620
How does it differ from the TRLEDSZ4?
The TR2013-620 gives at least 160,000 lux from 46 bulbs on a 670 mm head and draws 400 VA. The TRLEDSZ4 gives 40,000 to 100,000 lux from 32 bulbs and draws 60 VA, but has a titanium arm and a light field size you adjust from the handle.
Who sets the light level?
The surgical team, through the dimmer system.
What supply does it run on?
~220 V at 50 Hz, with an input power of 400 VA.
How much ceiling height does it need?
The lowest installation height is 2600 mm.
How often are the bulbs replaced?
Bulb life is 50,000 hours. Service runs through our maintenance centre accredited by the General Authority for Industrial Control.
