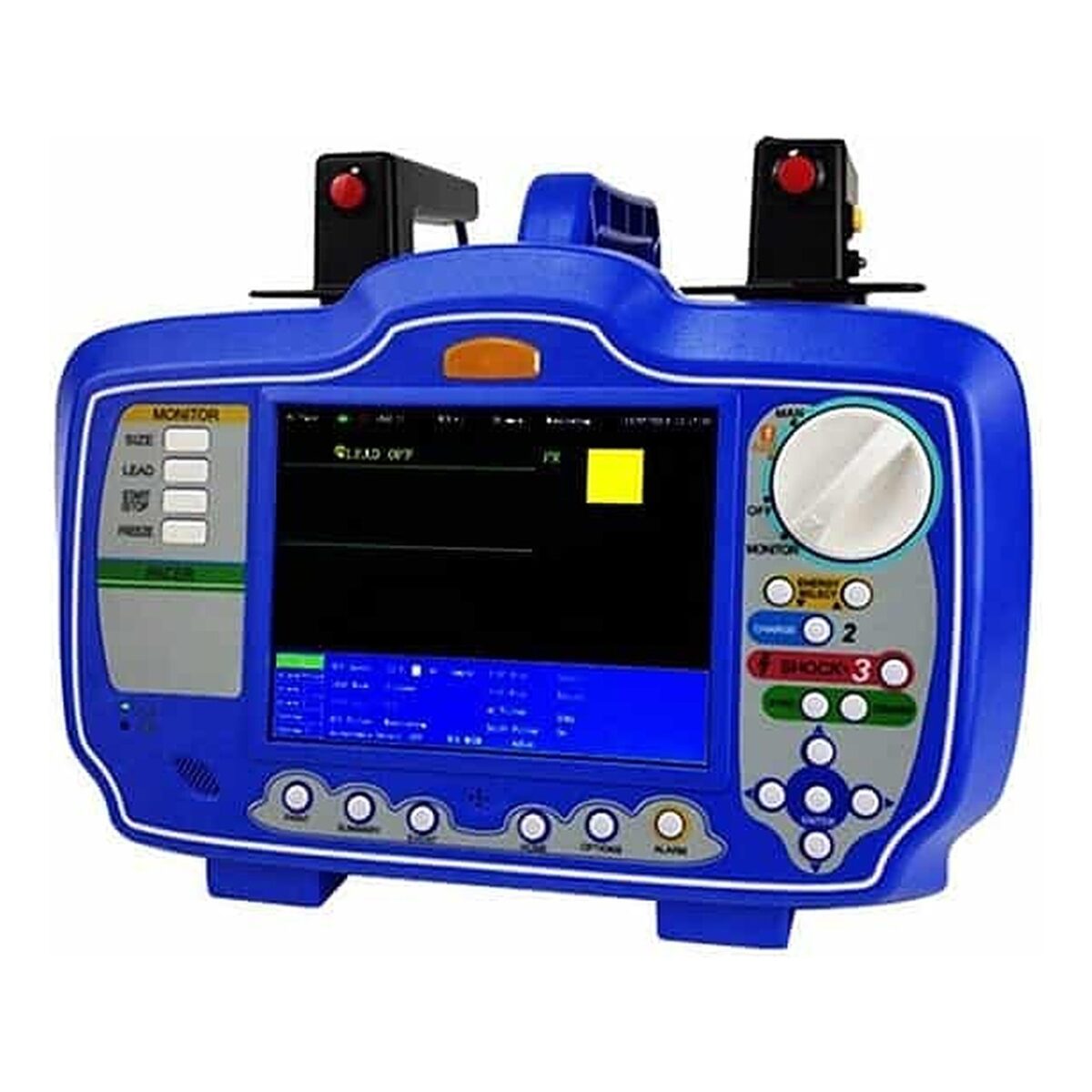

Meditech Defi Xpress Defibrillator Monitor
A Meditech defibrillator with ECG monitor: manual defibrillation up to 360 J, AED mode and synchronised cardioversion, an 8-inch colour TFT screen and a built-in thermal recorder. The doctor sets the mode and the energy.
1-year warranty
On Meditech devices, from the date of purchase.
Accredited service centre
By the General Authority for Industrial Control, at 31 El Rashidy St – Kasr El Aini.
Genuine product
By Meditech.
Ali Ben Ali
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
These are the places the device is made for.
You run an ICU, emergency department or cardiac care unit
Manual, AED and cardioversion in one device.
You need a printed record of each shock
The recorder prints 9 s on its own at an alarm, a charge or a discharge.
You want a unit that moves between wards
Runs on a rechargeable battery.
A defibrillator monitor in one line: it shows the ECG from the cable or the paddles, and the doctor selects the energy and delivers the shock, or lets the device analyse in AED mode.
Defi Xpress features
8-inch screen
Colour TFT, 800 × 600.
Up to 360 J
13 energy levels in manual mode.
Fast charge
Under 6 s to 200 J.
AED mode
Automatic analysis and charge up to 3 times.
3- or 5-lead ECG
Or through the paddles.
60-shock battery
At maximum energy, or 3 hours of ECG.
Technical specifications
Defibrillation
- Modes
- Manual defibrillation, synchronised cardioversion, AED and monitoring
- Waveform
- Biphasic truncated exponential
- Energy
- Manual: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J · AED: 50–200 J
- Charge time
- < 6 s to 200 J; < 12 s to 360 J after 15 discharges
- Rhythm analysis
- In AED mode it analyses and charges automatically up to three times, with voice and screen prompts
- Pads and paddles
- Paddles; charge and shock from the paddles or the front panel
Monitoring
- Leads
- 3- or 5-lead cable or the paddles; I, II, III, aVR, aVL, aVF, V
- Monitored parameters
- ECG and heart rate 20–300 bpm, with heart-rate alarm
Display
- Screen size
- 8 inch
- Display
- Colour TFT, 800 × 600
- Printing
- 50 mm thermal recorder (12.5, 25 or 50 mm/s); records 9 s automatically on an alarm, a charge or a discharge
Power
- Battery
- Rechargeable Ni-MH 12 V: 60 discharges at maximum energy or at least 3 hours of ECG monitoring
Warranty & after-sales
- Ali Ben Ali warranty
- 1 year
Identity
- Type
- Defibrillator monitor (manual and AED)
Compare with other Defibrillator devices
| Defi XpressThis page | DefiMonitor XDGo to product | DEFIGARD HD-7Go to product | CardioMaxGo to product | |
|---|---|---|---|---|
| Type | Defibrillator monitor (manual and AED) | Defibrillator monitor | Defibrillator monitor | Biphasic defibrillator monitor and cardioverter |
| Modes | Manual defibrillation, synchronised cardioversion, AED and monitoring | Manual defibrillation with energy selection, synchronised cardioversion, monitoring with alarm limits | 4 modes on one selector: monitoring, manual defibrillation, AED and pacer | Manual defibrillation, synchronised cardioversion and AED |
| Waveform | Biphasic truncated exponential | Biphasic, with thoracic impedance measurement and individual energy adjustment on every shock | – | Biphasic truncated exponential, adjusted for patient impedance |
| Energy | Manual: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J · AED: 50–200 J | 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300, 360 J | – | 1 to 10, 20, 30, 50, 80, 100, 150, 200, 250, 300, 360 J; 50 J maximum with the children's paddles |
| Charge time | < 6 s to 200 J; < 12 s to 360 J after 15 discharges | – | – | < 6 s to maximum energy, < 13 s from power-on; AED: 50 J in 2 s, 150 J in 4 s, 200 J in 6 s |
| CPR guidance | – | – | Metronome for the chest-compression rate | – |
| Leads | 3- or 5-lead cable or the paddles; I, II, III, aVR, aVL, aVF, V | 6-lead ECG with free choice of leads (I, II, III, aVR, aVL, aVF); two curves shown together | 6-lead ECG (SCHILLER technology) | 3- or 5-lead cable (3D and 7D), or through the paddles |
| Monitored parameters | ECG and heart rate 20–300 bpm, with heart-rate alarm | – | – | ECG and heart rate 15–350 bpm, respiration |
| Screen size | 8 inch | 5.7 inch | 7 inch | 8.4 inch |
| Printing | 50 mm thermal recorder (12.5, 25 or 50 mm/s); records 9 s automatically on an alarm, a charge or a discharge | Integrated printer for curves, vital signs and events, manual and automatic | Integrated 3-channel printer, post-defibrillation report | – |
| Battery | Rechargeable Ni-MH 12 V: 60 discharges at maximum energy or at least 3 hours of ECG monitoring | LiFePO4 battery: up to 5 h monitoring or 95 shocks at 360 J; mains operation possible | – | Removable rechargeable Li-Ion battery: 3 h monitoring, or at least 140 shocks at 360 J or 200 at 200 J |
| Water ingress protection | – | – | – | IPX1 |
| Weight | – | 5.3 kg | – | 5.15 kg |
| Ali Ben Ali warranty | 1 year | 1 year | 1 year | 1 year |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the Defi Xpress
How does it differ from the XD, the HD-7 and the CardioMax?
The Defi Xpress has an 8-inch screen, a built-in 50 mm recorder, manual and AED modes. The DEFIGARD HD-7 has a 7-inch touch screen with every mode on one selector. The CardioMax has an 8.4-inch screen. The DefiMonitor XD has a 5.7-inch screen and paddles with an integrated paediatric size.
Who selects the energy and the mode?
The doctor or trained staff. In manual mode they choose 2 to 360 J; in AED mode the device analyses and charges itself.
How does it show the ECG?
From a 3- or 5-lead cable or the paddles, on leads I, II, III, aVR, aVL, aVF and V.
How long does the battery last?
A rechargeable 12 V Ni-MH battery: 60 discharges at maximum energy or at least 3 hours of ECG monitoring.
What does it print?
A 50 mm thermal recorder at 12.5, 25 or 50 mm/s; it records 9 s on its own at an alarm, a charge or a discharge.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
The device is made by Meditech and comes with the Ali Ben Ali warranty; we have been in the medical equipment trade since 1987. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
1 year from Ali Ben Ali from the date of purchase, on Meditech devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device needs service, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Call the hotline 01212333328 and we will set a time with you.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
