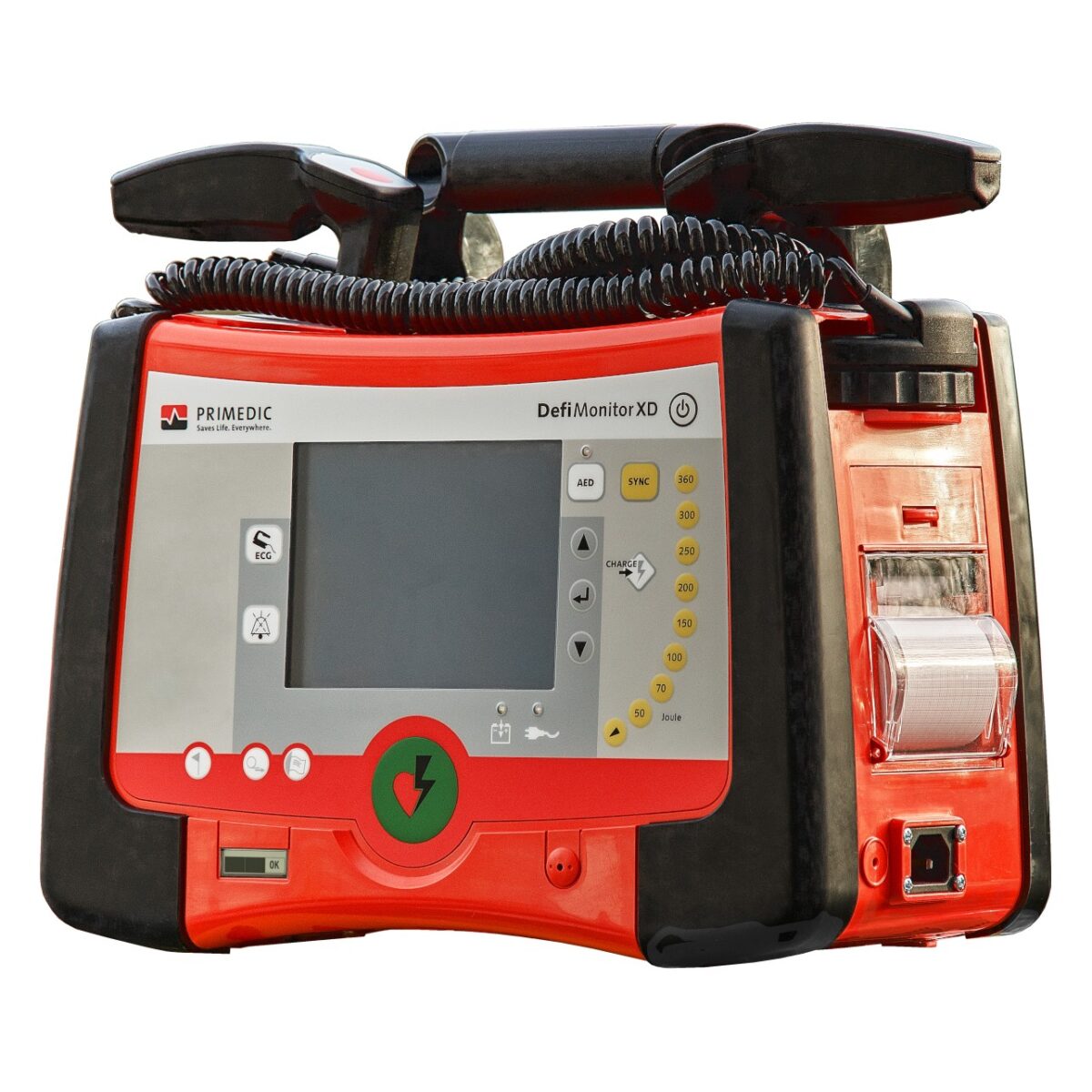

PRIMEDIC DefiMonitor XD Defibrillator Monitor
A PRIMEDIC defibrillator with a 6-lead ECG monitor: manual defibrillation from 2 to 360 J and synchronised cardioversion, adult and child paddles, a built-in printer and a LiFePO4 battery. The doctor sets the energy and the mode.
1-year warranty
On PRIMEDIC devices, from the date of purchase.
Accredited service centre
By the General Authority for Industrial Control, at 31 El Rashidy St – Kasr El Aini.
Genuine product
By PRIMEDIC.
Ali Ben Ali
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
These are the places the device is made for.
You run a clinic, hospital or ambulance service
A manual defibrillator with monitoring and alarm limits.
You work with adults and children
The paddles include the paediatric size; SavePads Connect electrodes are the alternative.
You want it always ready
Automatic daily self-test of device and battery.
A defibrillator monitor in one line: it shows the ECG from the cable or the paddles, and the doctor selects the energy and delivers the shock, or synchronises it with the ECG for cardioversion.
DefiMonitor XD features
14 energy levels
Biphasic, 2 to 360 J.
6-lead ECG
Two curves shown together.
5.7-inch screen
Illuminated LCD, 115 × 86 mm.
Built-in printer
Manual and automatic.
LiFePO4 battery
Up to 5 h monitoring or 95 shocks at 360 J.
About 5.3 kg
Without the battery.
Technical specifications
Defibrillation
- Modes
- Manual defibrillation with energy selection, synchronised cardioversion, monitoring with alarm limits
- Waveform
- Biphasic, with thoracic impedance measurement and individual energy adjustment on every shock
- Energy
- 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300, 360 J
- Pads and paddles
- Hard paddles for adults and children (paediatric size integrated), or SavePads Connect multifunction electrodes
Safety
- Self-test
- Automatic daily self-test with status display for function and battery
Monitoring
- Leads
- 6-lead ECG with free choice of leads (I, II, III, aVR, aVL, aVF); two curves shown together
Display
- Screen size
- 5.7 inch
- Display
- Illuminated LCD 115 × 86 mm; shows two ECG curves, vital signs, alarm limits, time in use, energy, mode and number of shocks
- Printing
- Integrated printer for curves, vital signs and events, manual and automatic
Data & connectivity
- Data storage
- Removable memory card for the application data
Power
- Battery
- LiFePO4 battery: up to 5 h monitoring or 95 shocks at 360 J; mains operation possible
Physical
- Weight
- 5.3 kg
Warranty & after-sales
- Ali Ben Ali warranty
- 1 year
Identity
- Type
- Defibrillator monitor
Compare with other Defibrillator devices
| DefiMonitor XDThis page | Defi XpressGo to product | DEFIGARD HD-7Go to product | CardioMaxGo to product | |
|---|---|---|---|---|
| Type | Defibrillator monitor | Defibrillator monitor (manual and AED) | Defibrillator monitor | Biphasic defibrillator monitor and cardioverter |
| Modes | Manual defibrillation with energy selection, synchronised cardioversion, monitoring with alarm limits | Manual defibrillation, synchronised cardioversion, AED and monitoring | 4 modes on one selector: monitoring, manual defibrillation, AED and pacer | Manual defibrillation, synchronised cardioversion and AED |
| Waveform | Biphasic, with thoracic impedance measurement and individual energy adjustment on every shock | Biphasic truncated exponential | – | Biphasic truncated exponential, adjusted for patient impedance |
| Energy | 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300, 360 J | Manual: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J · AED: 50–200 J | – | 1 to 10, 20, 30, 50, 80, 100, 150, 200, 250, 300, 360 J; 50 J maximum with the children's paddles |
| Charge time | – | < 6 s to 200 J; < 12 s to 360 J after 15 discharges | – | < 6 s to maximum energy, < 13 s from power-on; AED: 50 J in 2 s, 150 J in 4 s, 200 J in 6 s |
| CPR guidance | – | – | Metronome for the chest-compression rate | – |
| Leads | 6-lead ECG with free choice of leads (I, II, III, aVR, aVL, aVF); two curves shown together | 3- or 5-lead cable or the paddles; I, II, III, aVR, aVL, aVF, V | 6-lead ECG (SCHILLER technology) | 3- or 5-lead cable (3D and 7D), or through the paddles |
| Monitored parameters | – | ECG and heart rate 20–300 bpm, with heart-rate alarm | – | ECG and heart rate 15–350 bpm, respiration |
| Screen size | 5.7 inch | 8 inch | 7 inch | 8.4 inch |
| Printing | Integrated printer for curves, vital signs and events, manual and automatic | 50 mm thermal recorder (12.5, 25 or 50 mm/s); records 9 s automatically on an alarm, a charge or a discharge | Integrated 3-channel printer, post-defibrillation report | – |
| Battery | LiFePO4 battery: up to 5 h monitoring or 95 shocks at 360 J; mains operation possible | Rechargeable Ni-MH 12 V: 60 discharges at maximum energy or at least 3 hours of ECG monitoring | – | Removable rechargeable Li-Ion battery: 3 h monitoring, or at least 140 shocks at 360 J or 200 at 200 J |
| Water ingress protection | – | – | – | IPX1 |
| Weight | 5.3 kg | – | – | 5.15 kg |
| Ali Ben Ali warranty | 1 year | 1 year | 1 year | 1 year |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the DefiMonitor XD
How does it differ from the Defi Xpress, the HD-7 and the CardioMax?
The DefiMonitor XD has the smallest screen (5.7 inches), paddles with an integrated paediatric size and 14 energy levels up to 360 J. The Defi Xpress has an 8-inch screen, the CardioMax 8.4 inches and the DEFIGARD HD-7 a 7-inch touch screen.
Who selects the energy?
The doctor or trained staff, from 2 to 360 J, with the option to synchronise the shock with the ECG.
Can it be used on children?
Yes, the paddles include the paediatric size and the energy levels start at 2 J.
How long does the battery last?
The LiFePO4 battery gives up to 5 hours of monitoring or 95 shocks at 360 J; it also runs on mains.
Does it record each use?
Yes, on a removable memory card, and the built-in printer prints curves, values and events.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
The device is made by PRIMEDIC and comes with the Ali Ben Ali warranty; we have been in the medical equipment trade since 1987. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
1 year from Ali Ben Ali from the date of purchase, on PRIMEDIC devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device needs service, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Call the hotline 01212333328 and we will set a time with you.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
