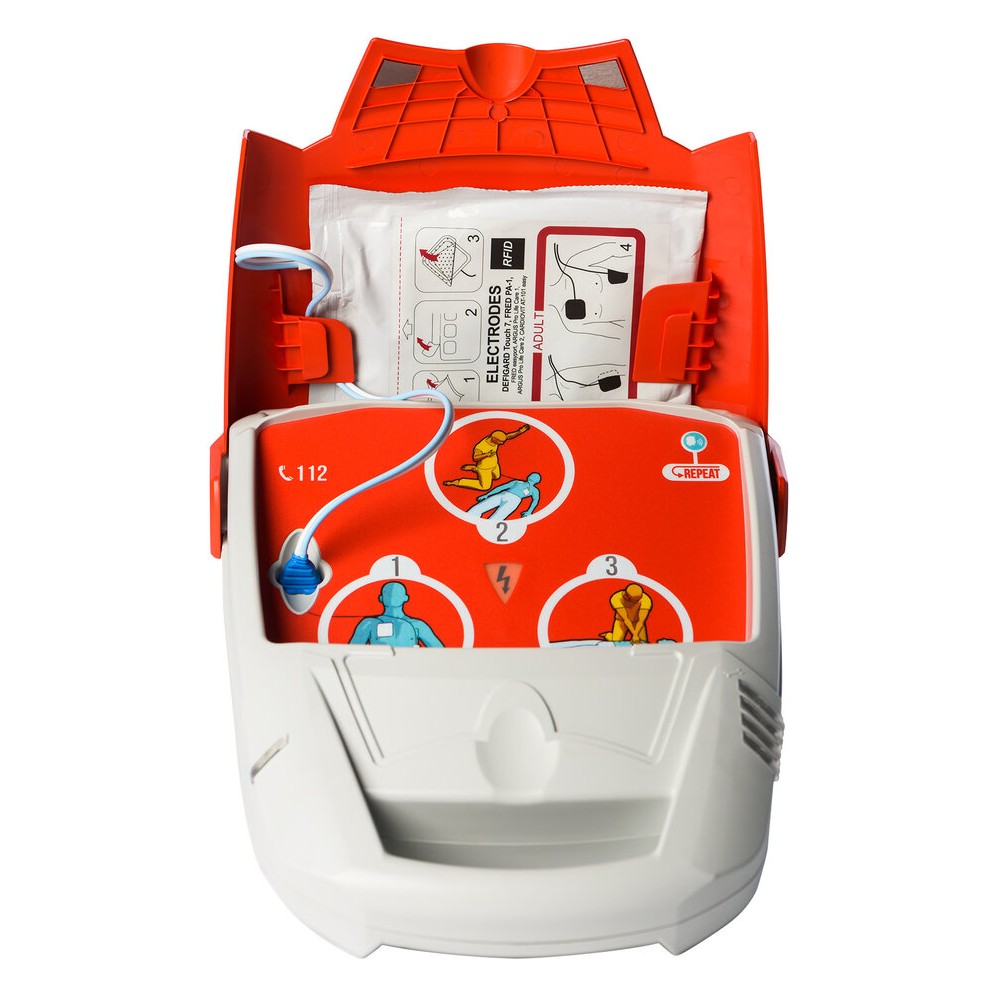

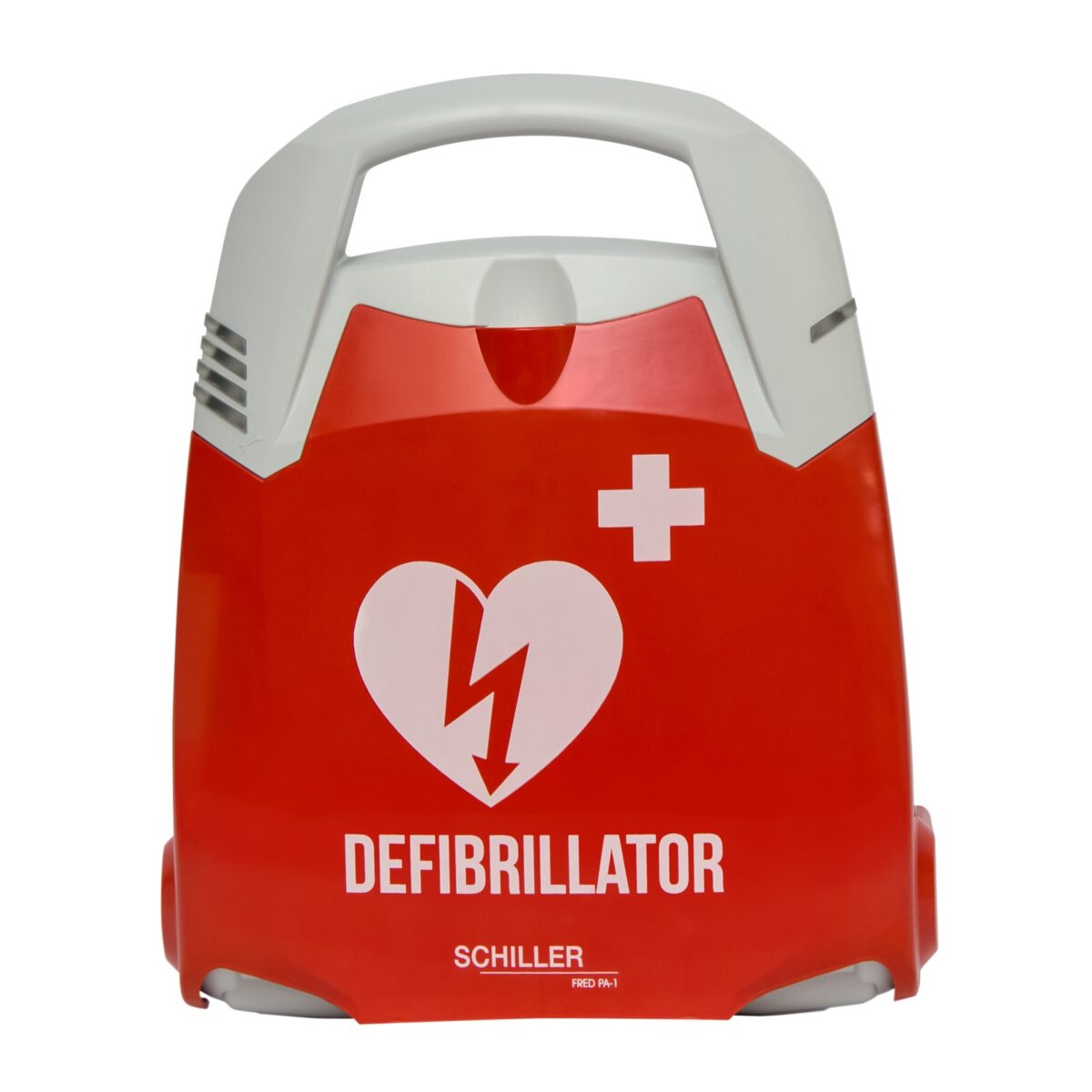

SCHILLER FRED PA-1 Public-Access Automated External Defibrillator
A SCHILLER AED for public places, with pre-connected electrodes carrying an RFID tag that checks their expiry; it recognises child electrodes and adjusts the energy itself, and guides the rescuer by voice with a metronome for the compression rate. It is used according to first-aid and CPR training.
1-year warranty
On SCHILLER devices, from the date of purchase.
Accredited service centre
By the General Authority for Industrial Control, at 31 El Rashidy St – Kasr El Aini.
Genuine product
By SCHILLER.
Ali Ben Ali
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
These are the places the device is made for.
You run a public place: a mall, club, airport or office
An AED made for public access.
You want it ready without preparation in an emergency
The electrodes are pre-connected.
You want little upkeep
Regular self-test; LED and audible indicators when the battery or electrodes need replacing.
An AED in one line: you place the pads on the casualty's chest, the device analyses the rhythm, tells you whether a shock is advised and guides you through CPR until the ambulance arrives.
See the device on video
The manufacturer's device video · FRED PA-1FRED PA-1 features
RFID electrodes
The device checks their expiry date.
Recognises child electrodes
And adjusts the energy itself.
Metronome
For the chest-compression rate.
Long battery life
6 years on FRED PA-1, 3 years on FRED PA-1 Online.
IP55
Protected against dust and water splashes.
Up to 3 languages
Preset on the device.
Technical specifications
Defibrillation
- Child mode
- Recognises child electrodes and adjusts the energy automatically
- Pads and paddles
- Pre-connected electrodes with an RFID tag that checks their expiry date
- CPR guidance
- Step-by-step voice guidance and a metronome for the chest-compression rate
Safety
- Self-test
- Regular automatic self-test; LED and audible indicators when the battery or electrodes need replacing
Display
- Languages
- Up to three preset languages
Power
- Battery
- Battery autonomy 6 years on FRED PA-1, 3 years on FRED PA-1 Online
- Water ingress protection
- IP55
Warranty & after-sales
- Ali Ben Ali warranty
- 1 year
Identity
- Type
- Public-access automated external defibrillator (AED)
Compare with other Defibrillator devices
| FRED PA-1This page | Defi 5Go to product | HeartSave AED-MGo to product | |
|---|---|---|---|
| Type | Public-access automated external defibrillator (AED) | Automated external defibrillator (AED) | Automated external defibrillator (AED) with a screen |
| Waveform | – | Biphasic truncated exponential | Biphasic, current-controlled impulse |
| Energy | – | Adult: 150, 150, then 200 J | 140–360 J according to patient impedance |
| Charge time | – | ≤ 10 s to 150 J, ≤ 15 s to 200 J | – |
| Child mode | Recognises child electrodes and adjusts the energy automatically | 50, 50, then 75 J | – |
| CPR guidance | Step-by-step voice guidance and a metronome for the chest-compression rate | – | – |
| Leads | – | – | One lead (Einthoven II) through the pads; heart rate 30–300 per minute |
| Screen size | – | – | 4.7 inch |
| Battery | Battery autonomy 6 years on FRED PA-1, 3 years on FRED PA-1 Online | Non-rechargeable 12 V, 2.8 Ah (LiMnO₂): 100 shocks at 200 J or 120 at 150 J; 5-year shelf life | – |
| Water ingress protection | IP55 | – | IP55 |
| Weight | – | 2 kg | 2.5 kg |
| Dimensions | – | 303 × 216 × 89 mm | 90 × 280 × 250 mm |
| Ali Ben Ali warranty | 1 year | 1 year | 1 year |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the FRED PA-1
How does it differ from the Defi 5 and the HeartSave AED-M?
The FRED PA-1 has pre-connected RFID electrodes and checks its battery and electrodes itself. The Defi 5 has two buttons with voice and light guidance. The HeartSave AED-M has a screen with written instructions and the ECG.
Who uses the device?
Anyone trained in first aid and CPR. The device analyses the rhythm, decides whether a shock is advised and guides the user step by step.
How long does the battery last?
6 years on FRED PA-1, 3 years on the FRED PA-1 Online version.
Can it be used on children?
It recognises child electrodes and adjusts the energy for them.
How do I know it is ready?
It runs a regular self-test and has LED and audible indicators when the battery or electrodes need replacing.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
The device is made by SCHILLER and comes with the Ali Ben Ali warranty; we have been in the medical equipment trade since 1987. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
1 year from Ali Ben Ali from the date of purchase, on SCHILLER devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device needs service, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Call the hotline 01212333328 and we will set a time with you.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
