Specifications

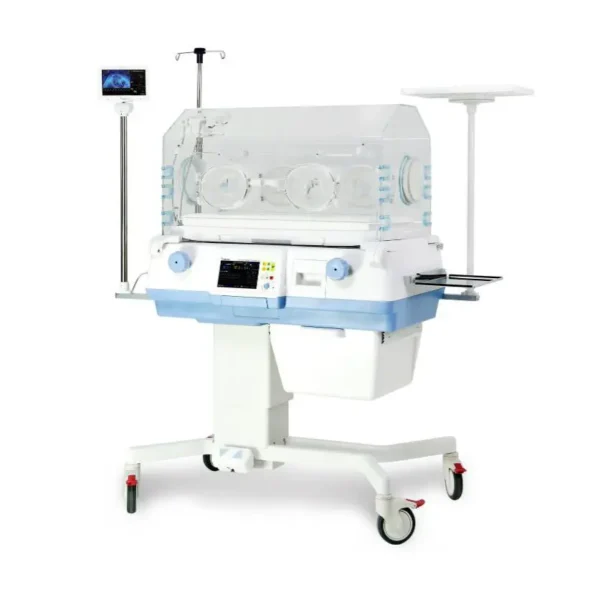

- The Bistos BT-500 is an FDA registered infant incubator, which can precisely control temperature and humidity with low noise providing the best environment for the recovery of neonatal patients. Also weighing scale provide total monitoring of neonate. The unit has ergonomic design.
Incubator Features:
- Accurate humidity control
- Comfortable and soft tilting structure
- 7” TFT color LCD display
- Various alarm function (27 events)
- Low noise hood • MASIMO SpO2 and CCD camera
- Accurate weighing scale (±10g)
Configuration
Standard: Temperature & Humidity servo control, Fixed stand, X-ray tray, Tilting, 2 pcs skin temp. sensor, 4pcs Air Filter
Options: IV pole, IV plate, lifting stand, O2 monitoring, O2 servo control, Weighing scale, Basket, Shelf, External monitor with Masimo SpO2 & CCD camera
- Power-on Self-test
The incubator performs a self-test each time it is turned on. This process allows the incubator to check various systems for proper operation. When the test is successfully completed, the BT-500 displays the main screen.
- Double Wall
The hood is used to protect an infant from the external environment and maintain the internal environment of hood to best condition. BT-500 has double wall structure to minimize heat loss. The analysis result of Air flow and temperature distribution are shown as below figure.
- Air Curtain
BT-500 has Air Curtain function to reduce temperature fluctuation in hood when the hood door is opened for treatment of infant.
- Alarm Function
Alarm of BT-500 indicates the condition of failure. According to each alarm condition, alarm messages are displayed and alarm sound is caused and sensor module’s LED blinks. There are 27 kinds of alarms by failure situation.
- System Alarms
Motor failed, Heater system failed, Humidity heater failed, Stuck key, Humidity sensor failure, Air sensor failure, Fan power failure, Air circulation failure, Skin probe fail, remove skin 2 probe, Sensor module disconnected, Sensor module not in position
- Temperature Alarms
Low air temperature, High air temperature, Low skin temperature, High skin temperature, High skin 1 temperature, High skin 2 temperature, High temperature cutout, Over skin temperature
- Humidity Alarms
Low humidity, Water empty
- Oxygen Alarms
O2 module power failure, O2 module detached, O2 sensor fault, Low oxygen, High oxygen
- Weighing Scale Alarms
Too much weight
- Quick Guide
BT-500 has Help function which provides the simple information about the equipment. The information is as below:
– Part of full set BT-500
– Main control panel and main display
– How to use and change mode and parameters
- External Monitor
BT-500 uses external 7” color TFT LCD monitor that displays measured values from the control and video of infant inside the hood. Cam mode, Graph mode and Masimo mode are shown as below.
Cam Mode (a) Air temperature, skin temperature, humidity, oxygen concentration and weighing scale are displayed on external monitor with real-time video of infant.
Graph Mode (b) Air temperature, skin temperature, humidity, oxygen concentration and weighing scale, SpO2 and PR are displayed on external monitor with real-time video of infant. Also, graphs of each parameters are displayed.
Masimo Mode (c) Air temperature, skin temperature, humidity, oxygen concentration and weighing scale are basically displayed. SpO2 and PR are mainly displayed.
Technical Specifications: BT-500 Infant Incubator
Incubator Physical characteristics (with standard accessories)
Size | 140 x 103 x 141 cm (H x L x D) |
Weight | 89 kg |
Control | Temperature |
Air temperature control range | 23.0 – 37.0 +/- 0.3 deg C (Override >39.0 deg C) |
Skin temperature control range | 35.0 – 37.5 +/- 0.3 deg C (Override >39.0 deg C) |
Peripheral Temperature | YES (Option) |
Control | Humidity |
Humidity Control Range | 40 – 95% +/- 5 % RH |
Measurement Range | 15 – 99% +/- 5 % RH |
Control System | Ultrasonic & Steam |
Water Tank Capacity | 1,000 Ml |
Incubator Display
Display Panel | 7″ TFT COLOR LCD |
Trend | Up To 7 Days |
Alarm | 19 Kinds Of Alarm |
Multi-Language Support | YES |
Hood | Hood Size 39 X 91 X 51 Cm (H X L X D)
Mattress Size 38 X 73 Cm Mattress Tilt 12 |
Air Velocity | < 10 Cm/S (At 10cm Above The Center Of Mattress) |
Warming-Up Time | (From Ambient 22 Deg C) < 35 Min |
Noise Level | < 45 DBA |
Micro Air Filter Particle Size | 0.3 Micron |
Micro Air Filter Efficiency | 99.8 % |
Options that are included in this unit’s pricing:
- Fixed Stand (FX)
Dimension | 100cm(W) X 81cm(D) X 80cm(H) |
Basket | 41cm X 42cm, 10kg (Weight Limit) |
- Lifting Stand (LS)
Weighting Scale
Dimension | 100cm(W) X 81cm(D) X 62cm-82cm(H) |
Speed | 180mm/Min |
Basket | 41cm X 42cm, 10kg (Weight Limit) |
Measurement | 0-10kgf, 50g |
Masimo | SpO2 |
SpO2 | 1-100% |
Pulse Rate | 25bpm – 240bpm |
Accuracy -SpO2 | Neonate 70-100% +/-3 Digits |
Pulse Rate | 25 -240 +/-3 Digits |
- Monitoring System
External | 7″ color TFT LCD |
CCD Camera | 510 x 492 (Resolution) |
Masimo | technology display |
