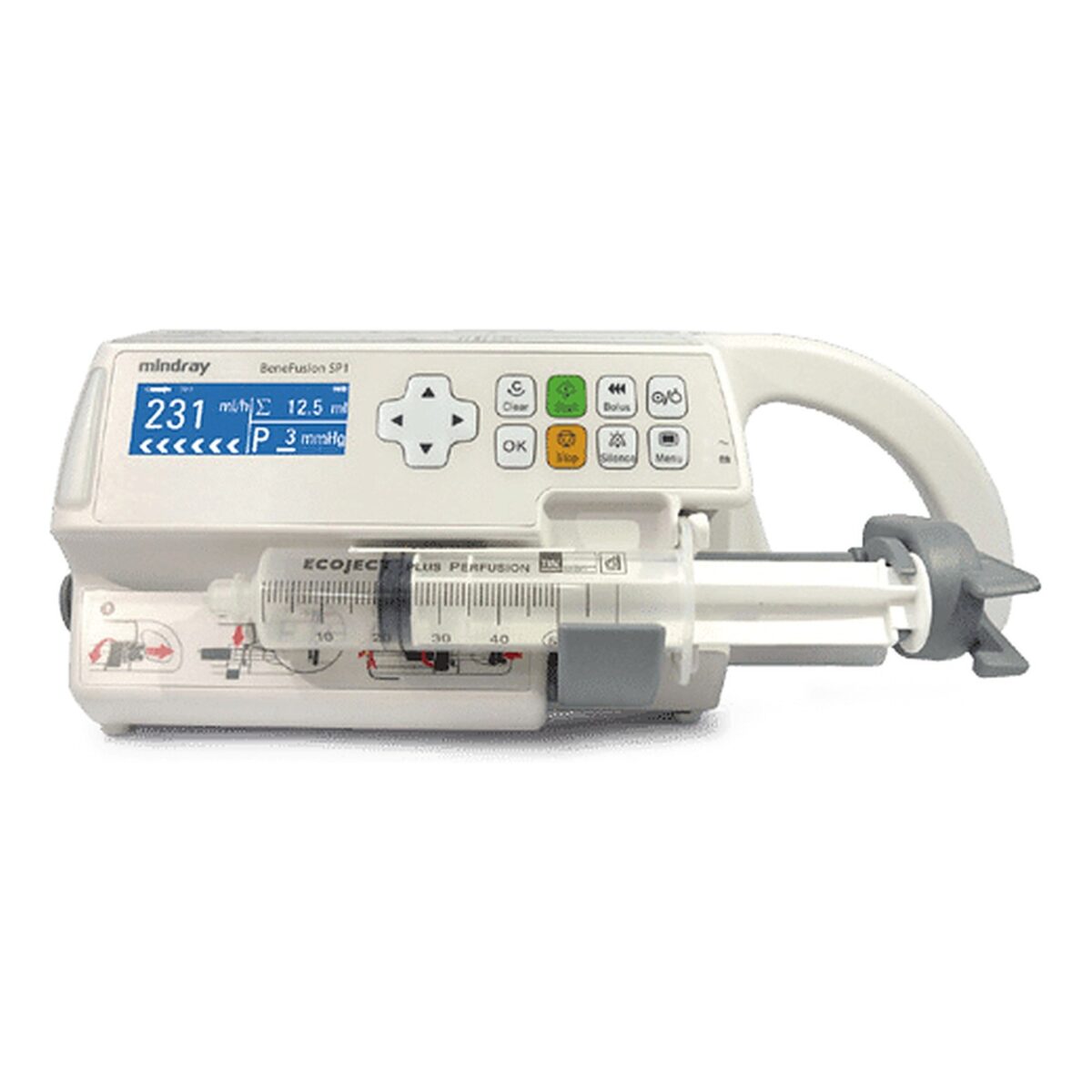

Mindray BeneFusion SP1 Syringe Pump with ±2% Accuracy
A Mindray syringe pump with ≤ ±2% accuracy and a flow rate from 0.1 to 1500 ml/h. It takes 5 to 60 ml syringes and recognises their size by itself, with 3 occlusion alarm levels and anti-bolus protection. The physician sets the drug and the rate.
1-year warranty
On Mindray devices, from the date of purchase.
Lifetime service
With genuine spare parts after the warranty too.
Accredited maintenance centre
By the General Authority for Industrial Control.
Ali Ben Ali
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
The final choice is made with the physician or the biomedical engineering team. These are the uses the device is made for.
Intensive care or inpatient wards
Steady, accurate infusion by syringe.
Patient transfer and emergency
Light, long battery life, suitable for ambulances (EN 1789).
Nursing staff who want a simple pump
One rate mode and a keypad made for one-hand operation.
The two numbers that matter in any syringe pump: accuracy and flow rate. ±2% accuracy means the volume actually delivered stays within 2% of what was set. Flow rate in ml/h is how many millilitres go in per hour; the SP1 covers 0.1 to 1500 ml/h. The occlusion level is the pressure at which the pump stops and alarms if the line is blocked.
BeneFusion SP1 features
≤ ±2% accuracy
Flow 0.1 to 1500 ml/h, in 0.1 ml/h steps up to 999.9 ml/h.
Automatic syringe recognition
5, 10, 20, 30 and 50/60 ml.
Occlusion alarm
3 levels: 300, 525 and 900 mmHg, with anti-bolus protection after an occlusion.
Long battery life
At least 6 hours at 5 ml/h; charges in 5 hours at most.
Ambulance ready
Suitable for ambulances (EN 1789), IP34 water and dust protection.
Light, one-hand use
Under 1.8 kg, mounts on a vertical pole, connects to nurse call and RS232.
Technical specifications
Infusion
- Infusion accuracy
- ≤ ±2%
- Flow rate range
- 0.1–1500 ml/h
- Rate increment
- 0.1 ml/h up to 999.9 ml/h; 1 ml/h from 1000 to 1500 ml/h
- Infusion modes
- Rate mode
- Syringe sizes
- 5, 10, 20, 30, 50/60 ml, with automatic syringe-size recognition
- Volume to be infused (VTBI)
- 0.1–9999 ml, in 0.1 ml steps
- KVO rate
- 0.5 ml/h, fixed
- Bolus rate
- 0.10–1500 ml/h
- Purge rate
- 150–800 ml/h
Safety
- Occlusion pressure levels
- 3 levels: 300, 525 and 900 mmHg
- Anti-bolus after occlusion
- Yes
- Keypad lock
- Keypad lock
- Electrical safety class
- Class I, type CF
Display
- Screen size
- 2.5 inch
- Display
- Monochrome LCD, 132 × 32 pixels
Data & connectivity
- Interfaces
- RS232, nurse call, DC input, dock support
Alarms
- Alarms
- Occlusion, VTBI done or near done, syringe empty or nearly empty, syringe disengaged or not inserted, battery low or empty, AC power disconnection, system error, reminder
Power
- Battery
- Lithium battery, at least 6 hours at 5 ml/h
- Battery charging time
- 5 hours at most
- Power input
- 100–240 V, 50/60 Hz
- Water ingress protection
- IP34
Physical
- Operating conditions
- 0–40 °C, 15–95% humidity
- Weight
- below 1.8 kg
- Dimensions
- 336 × 132 × 110 mm
Warranty & after-sales
- Ali Ben Ali warranty
- 1 year
Identity
- Mounting
- Vertical pole clamp, with a carrying handle
- Ambulance use
- Suitable for ambulances (EN 1789)
Compare with other Syringe pump devices
| BeneFusion SP1This page | BeneFusion SP3Go to product | |
|---|---|---|
| Infusion accuracy | ≤ ±2% | ≤ ±2% |
| Flow rate range | 0.1–1500 ml/h | 0.1–2000 ml/h |
| Rate increment | 0.1 ml/h up to 999.9 ml/h; 1 ml/h from 1000 to 1500 ml/h | Minimum increment 0.01 ml/h |
| Infusion modes | Rate mode | 9 modes: Rate, Body Weight, Time, Intermittent, Sequential, Loading Dose, Micro-infusion, TIVA and Ramp |
| Drug library | – | Up to 200 drugs, can be switched on or off |
| Syringe sizes | 5, 10, 20, 30, 50/60 ml, with automatic syringe-size recognition | 5, 10, 20, 30, 50 and 60 ml, with automatic syringe-size recognition |
| KVO rate | 0.5 ml/h, fixed | 0.1–30 ml/h, default 0.5 ml/h |
| Bolus rate | 0.10–1500 ml/h | 0.1–2000 ml/h, automatic or manual |
| Occlusion pressure levels | 3 levels: 300, 525 and 900 mmHg | 14 levels from 75 to 1050 mmHg; pressure shown in mmHg, kPa, bar or psi |
| Screen size | 2.5 inch | 3 inch |
| History log | – | Up to 2000 records |
| Battery | Lithium battery, at least 6 hours at 5 ml/h | Battery runs at least 6 hours at 5 ml/h |
| Water ingress protection | IP34 | IP34 |
| Weight | below 1.8 kg | below 1.8 kg |
| Dimensions | 336 × 132 × 110 mm | 340 × 125 × 135 mm |
| Ali Ben Ali warranty | 1 year | 1 year |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the BeneFusion SP1
What is the difference between the SP1 and the SP3?
Both are ≤ ±2% accurate. The SP3 adds a drug library of up to 200 drugs, 9 infusion modes instead of rate mode only, flow up to 2000 ml/h in 0.01 ml/h steps, 14 occlusion levels instead of 3, and a 2000-record log. The SP1 is simpler to run.
Who sets the dose and rate?
The physician prescribes the drug and rate, and a trained nurse enters them on the pump. The keypad lock prevents accidental changes after setup.
Does it take any syringe?
It takes 5, 10, 20, 30 and 50/60 ml syringes and recognises the size by itself. Use a syringe the pump is set up for; order any spare part from customer service on 01212333328.
Does it run on mains or battery?
Both. It runs on 100–240 V mains; if the power goes, the battery gives at least 6 hours at 5 ml/h, and the pump alarms when mains is disconnected or the battery runs low.
What happens if the line is blocked?
The pump measures pressure continuously; when it reaches the set occlusion level (300, 525 or 900 mmHg) it stops and alarms, and it reduces the unexpected bolus that could follow once the blockage clears.
