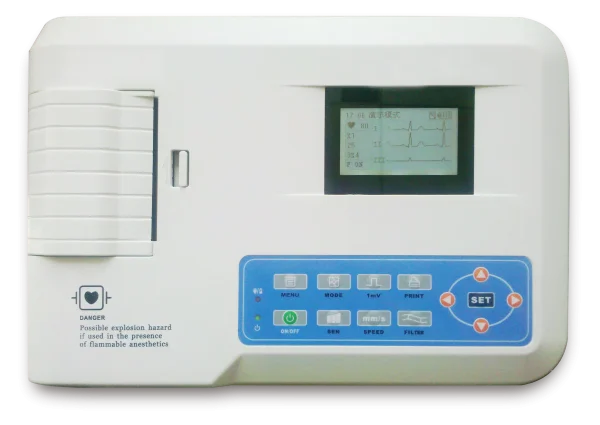

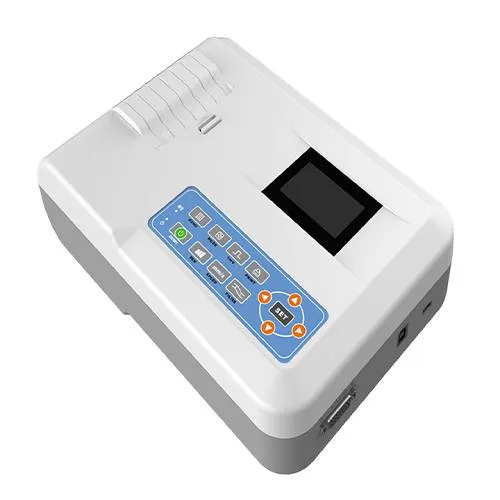

3 Channel Ecg With Monitor Ecg300 GA-جهاز رسم قلب 3 قناة

Introduction

• ECG300GA is an Electrocardiograph which can collect 12-lead ECG signal
• simultaneously and print waveform by the thermal printing system.
• It features in,recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically
• prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management.

Function

1. Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2. Display of 1/3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
3. Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, etc. Waveform length printed can be adjusted, and with timed print function, which meets different requirements.
4. With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5) +S(V1), etc. which reduces the doctor’s burden.
5. Build-in memory stores 15 cases, optional SD card stores up to 100 cases, which is convenient for doctor to review case and statistic.
6. Multi- language (Chinese, English) interface and report.
7. Optional ECG-Sync software, connect with PC by USB2.0 interface to form an ECG workstation, import real-time data to the software for analyzing and report printing, and old cases stored in Electrocardiograph can be uploaded to PC.
8. Power supply: AC/DC and built-in rechargeable lithium battery. In optimal DC state, up to 4-hour standby time, continuous print 70-minute and 175-ECG, which meets the requirements of visiting a patient at home and body examination.

FEATURES

• Accurate and clear ECG waveform
• Working state display
• Economical to save recording paper

FUNCTIONS

• Sync collection for 12-lead ECG adopt digital signal processing technology to get high-quality ECG waveforms via AC filter
• Baseline filter and EMG filter of ECG signal
• Display of 1/2/3-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.

PRODUCT SPECIFICATIONS
