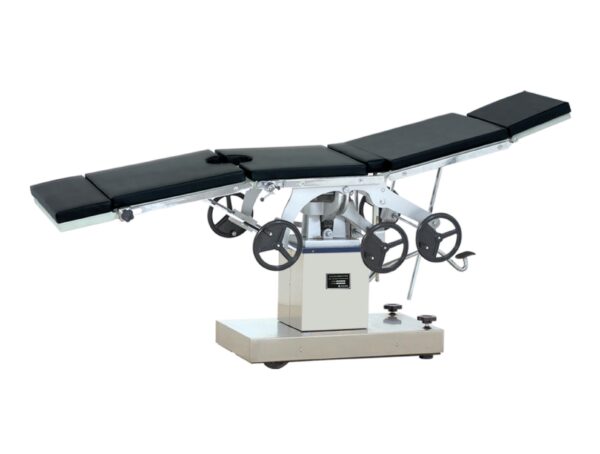

Manual hydraulic operation table 3001a-ترابيزة عمليات مانيوال

For more inquiries or to contact the sales manager, click here

For thoracic , abdominal , ophthalmology, otorhinolaryngology, obstetrics, gynecology, urinary and orthopedics.

Half made of stainless steel

Warranty Period: 2 Years

Applications:

The operating table is supplied for thoracic surgery, abdominal surgery, ophthalmology, otorhinolaryngology, obstetrics and gynecology, urinary surgery and orthopedics.

Feature:

Model 3001A: Based on 3001, base shell and stand column made of stainless steel.
Side operating universal table.
Lifting of this operating table is controlled by foot oil pump, and the rest of the movements are controlled by mechanical transmission side manipulation.
Side operating.

Length And Width For Tabletop	2100mm*480mm
Max. & Min. Height For Tabletop	1040mm*800mm
Max. Degree For Tabletop Forward And Backward Tilting	>30°,>20°
Tabletop Side Tilt	>18°
Oil Pump Vertical Of Oil Pump	240mm
Head Rest (275*310mm)	Can Be Adjusted Up And Down Direction And Can Be Elongation Or Discharge
Back Section(275*310mm)	Can Be Backward Tilt 18° Or Adjusted Up To 75°
Kidney Bridge (85*415mm)	Can Be Elevation 120mm Or On A Level With Table Top
Leg Section (500 *480mm)	Backward Folding >90°

Standard Accessories : A pair of shoulder support frame, a pair of body support frame, a pair of leg support frame, a screen frame

MAX LOAD 250KGS
