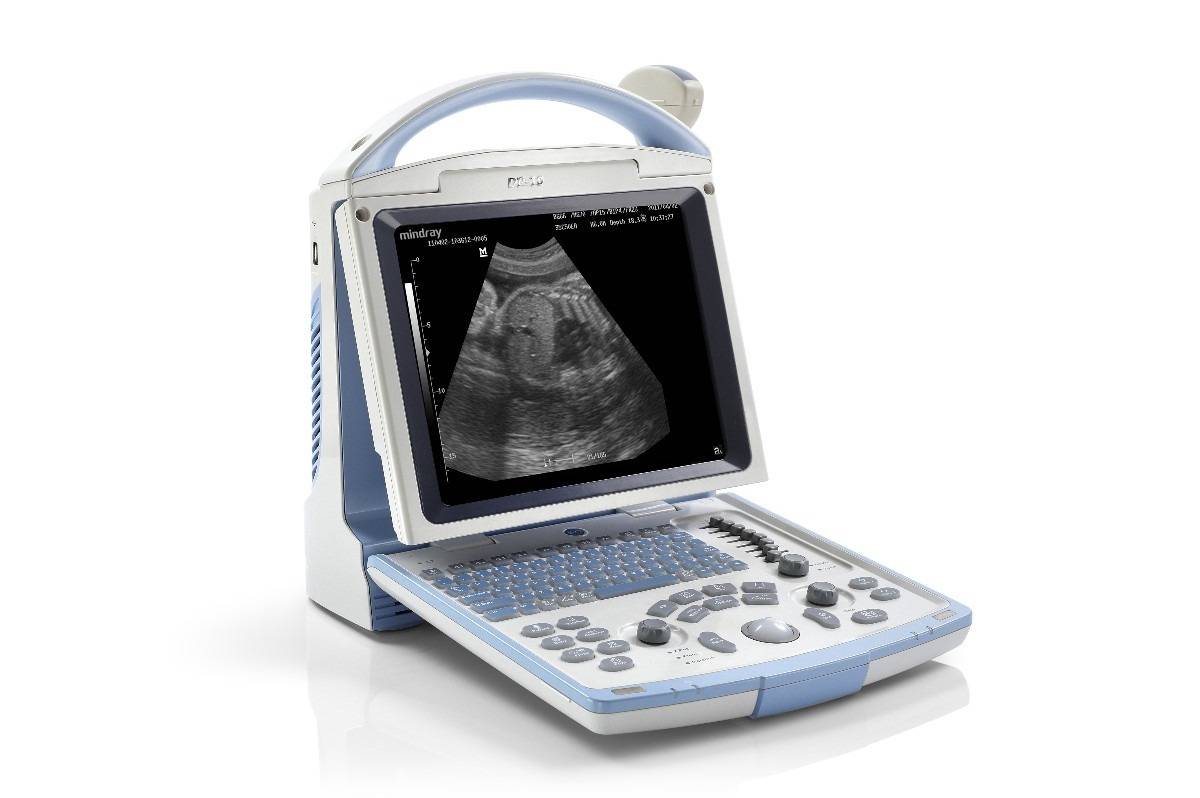

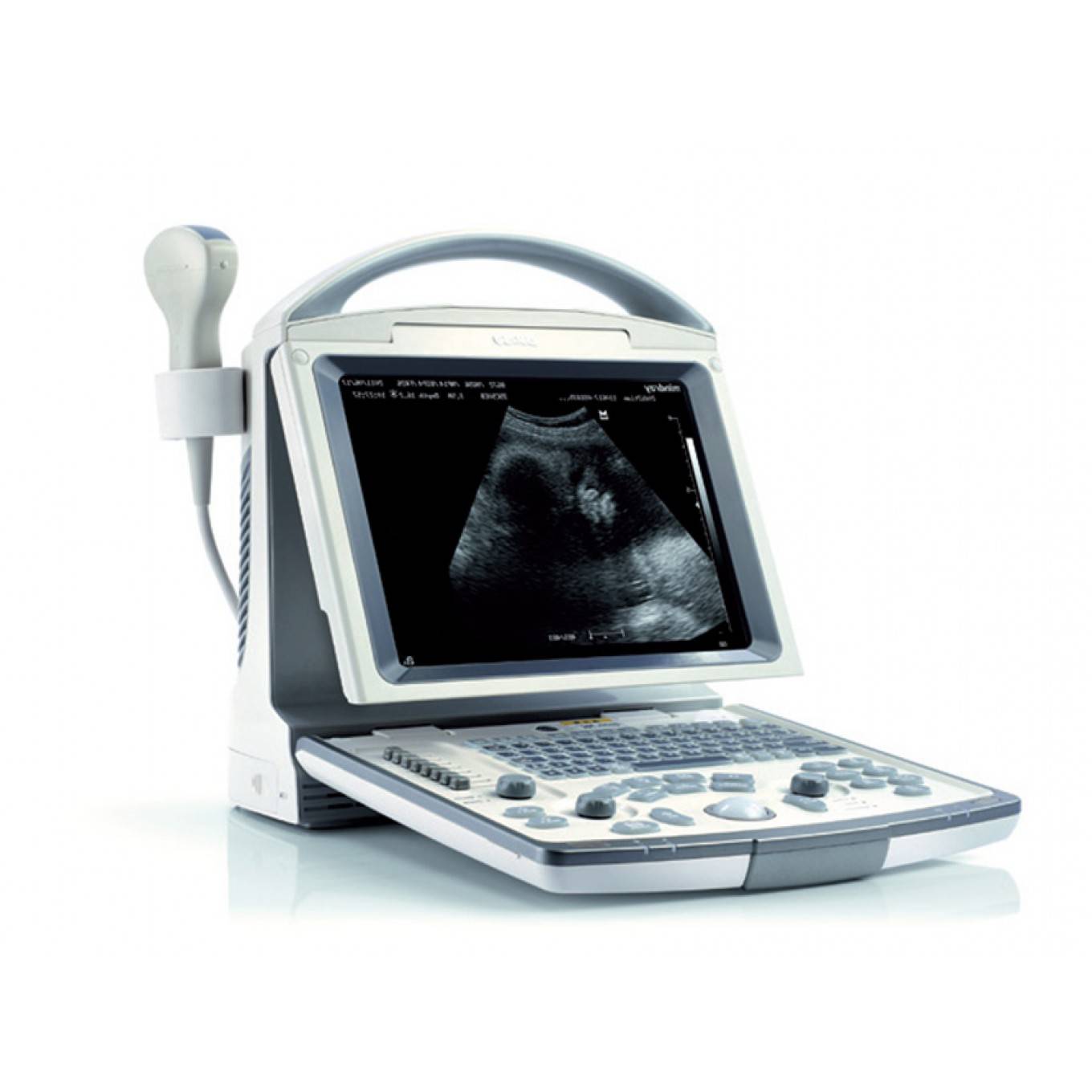

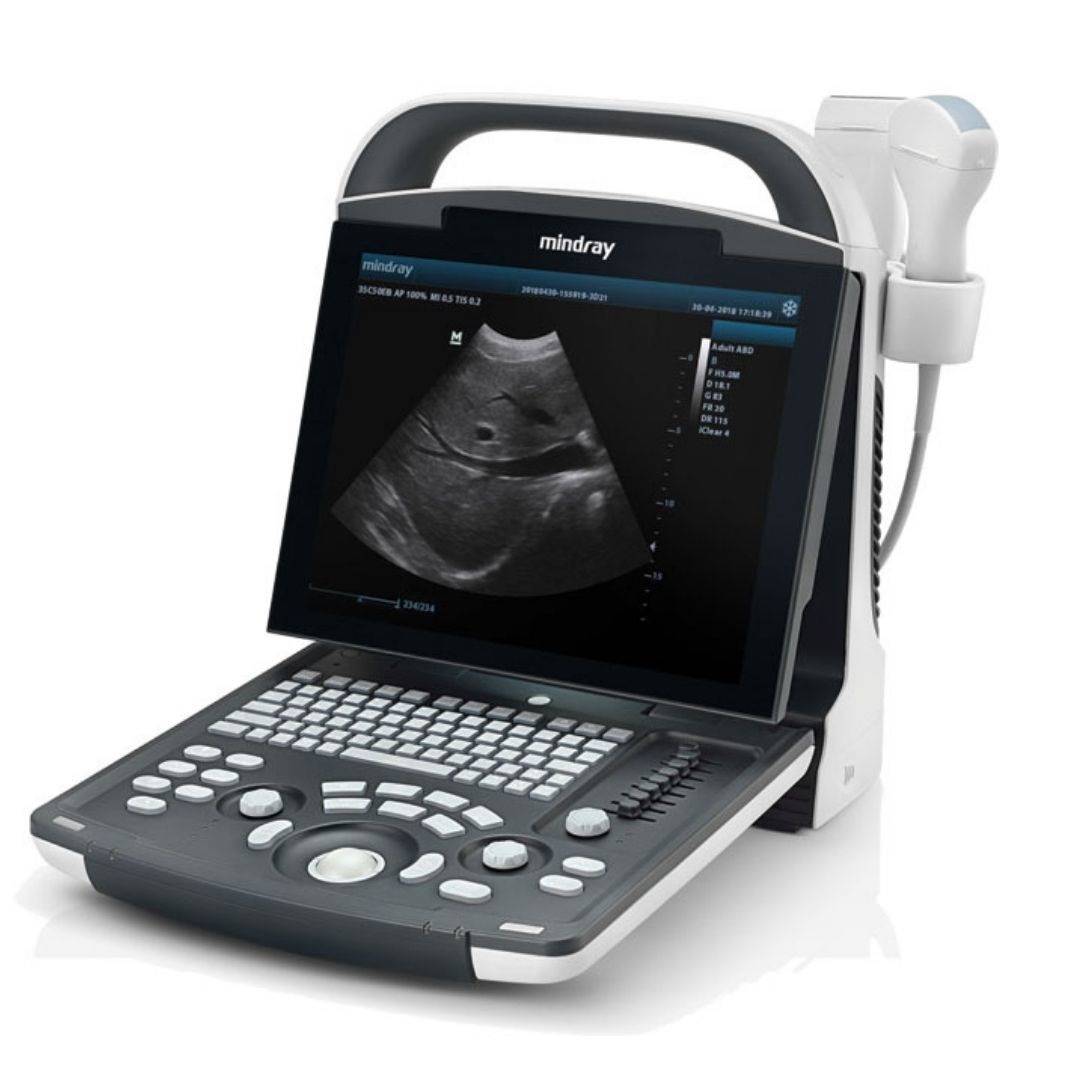

Portable Full Digital Ultrasound DP-20

• The best entry-level black & white ultrasound system in its class! The new Mindray DP-20 comes equipped with a combination of performance, affordability and intuitive workflow. Based on Intel’s powerful processor, the DP-20 forms an integral part of Mindray’s new generation of portable B/W ultrasound systems. The Mindray DP series platforms are equipped with latest imaging technologies, quality construction and convenient workflow options.

DP-20 Standard Features

• Tissue Harmonic Imaging: Utilizing second harmonics generated from tissue boundary layers, THI significantly enhances contrast resolution and improves image quality especially for technically difficult subjects.
• TSI: Tissue Specific Imaging optimizes the image quality based on the properties of the tissue being scanned.
• Four imaging options are available including general, muscle, fluid and fat.
• iClearTM: Gain improved image quality based on auto structure detection.
  -Sharper & Continuous Edges
  -Smooth Uniform Tissues
  -Cleaner ‘no echo area’s requirements.
• ExFOV: Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.

Workflow

Ergonomics

• High resolution 12.1” LED with tilt functionality
• User-friendly keyboard and controls
• Easy to carry with only 5.1 kg weight

Transducers

Convex

• 35C50EB Center Frequency: 3.5MHz
• 35C20EA Center Frequency: 3.5MHz
• 65C15EA Center Frequency: 6.5MHz

Endocavity

• 65EC10EB Center Frequency: 6.5MHz

Linear

• 75L38EB Center Frequency: 7.5MHz
• 75L53EA Center Frequency: 7.5MHz

Key Features

• Harmonic Imaging (THI) tissue improving contrast resolution
• IP – Optimization of one – key image (Image Processing)
• 8-segment TGC for accurate adjustment of the image
• Compact dimensions
• Scanning ready within 17s
• User-defined keys, customized operations programmable
• One-touch function for local disk or USB drive image and cine storage
• Lithium battery for continuous scanning up to 1.5 hours
• Review previously saved images
• Efficient integration of station patient data storage, archiving, reviewing and recovery
• Net weight: 5.5 kg (battery-free)

Optionally available probes:

• Convex sample (2 – 5Mhz)- 50 mm footprint for Abdominal, OB / GYN, Urology, Pediatric
• Linear sample (5 – 10Mhz) – 38 mm footprint for MSK, Cardiac, Urology, Abdominal, Nervous, Pediatric, Cephalic
• Linear sample (5 – 10Mhz)
• 53 mm footprint for MSK, Cardiac, Urology, Abdominal, Nervous, Pediatric, Cephalic
• Linear sample (8 – 12Mhz)
• 24 mm footprint for MSK, hands
• Micro-convex sample (5 – 8.5Mhz) — 15 mm footprint for MSK, Cardiac, Urology, Abdominal, Nervous, Pediatric, Cephalic
• Bi-Plane Micro – Convex (5 – 8.5Mhz)
• Endocavity Micro – Convex (5 – 8.5Mhz)
• 10 mm footprint for Gyn / OB
• Endorectal Linear (5 – 8.5Mhz)
• 60 mm footprint for Urology.
• Micro-convex sample (2 – 5Mhz) – 20 mm footprint for Gyn / OB, MSK, Abdominal, Pediatric, Cardiac, Vascular, Nerve
• Linear sample shapes (5 – 10Mhz)- 38 mm footprint for interoperative, small organs, orthopedic, nerve, vascular.
