BMC G3 B30VT BiPAP machine with integrated humidifier

3rd-generation BiPAP · S/T with target volume (Vt)No reviews yet

BMC G3 B30VT BiPAP Machine, S/T Mode with Target Tidal Volume (Vt)

Name: BiPAP Machine G3 B30VT – BMC
Brand: BMC

A third-generation bi-level (BiPAP) device whose signature mode is S/T with target volume (Vt): it follows the patient's breathing, delivers a backup breath if none comes, and adjusts inspiratory pressure to reach the volume the doctor sets. It detects obstructive and central apnea, has an integrated humidifier and runs below 26 dB. The treating physician sets it up.

Manufacturer certifications (BMC):CE markISO 13485 (manufacturer)European Free Sale certificate

BiPAP S/TFollows your breathing, with a backup breath if it stops

Built-in humidifierComes with heated tubing

Apnea detectionObstructive and central

Currently unavailable

Add to wishlist

Need help choosing?Our sales team answers on WhatsApp or by phone.

WhatsApp 01212333328

3-year warranty

On every BMC device, from the date of purchase.

Lifetime service

Service and genuine spare parts, after the warranty too.

Accredited maintenance centre

By the General Authority for Industrial Control.

Direct BMC agent

In the medical equipment trade since 1987, with 4 branches.

This device may suit you if...

The final choice is made with your doctor. These are the uses the device is made for.

Your doctor prescribed S/T BiPAP

It offers S/T, S, T and CPAP modes, with a backup rate of 3 to 40 breaths per minute.

You need a steady volume per breath

It averages the last 5 breaths and adjusts pressure to reach the volume your doctor sets.

Quiet and light matter to you

Below 26 dB in use, and 1.7 kg with the integrated humidifier.

CPAP vs BiPAP in one line: CPAP delivers one pressure all the time. BiPAP delivers a higher pressure on inhalation (IPAP) and a lower one on exhalation (EPAP), so breathing out is easier.

See the device on video

The manufacturer's device video · G3 B30VT

G3 B30VT features

Pressure that follows the patient

Inspiratory pressure from 4 to 30 hPa, with automatic mask-leak compensation.

0102030 hPa

Target tidal volume

150 to 1500 mL. The doctor sets the volume and the device raises or lowers inspiratory pressure to reach it.

05001e+031500 mL

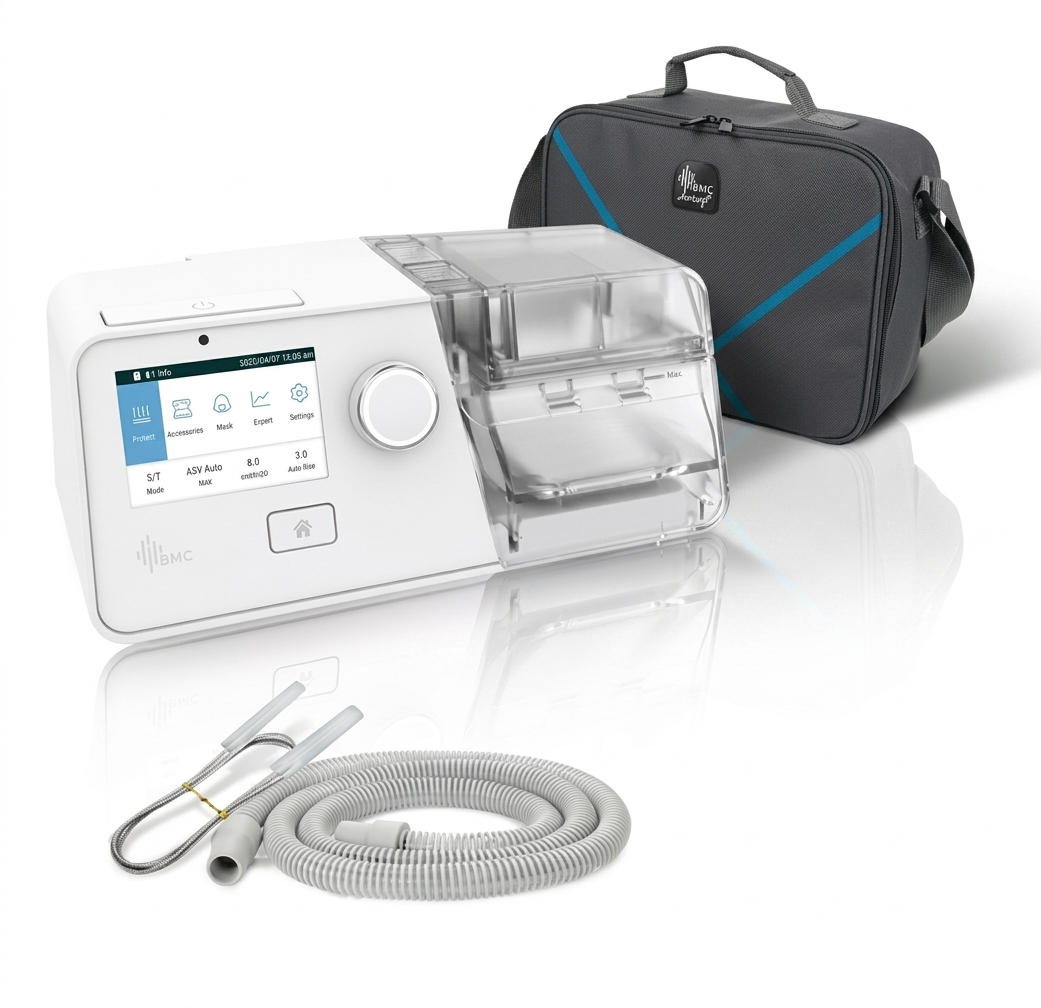

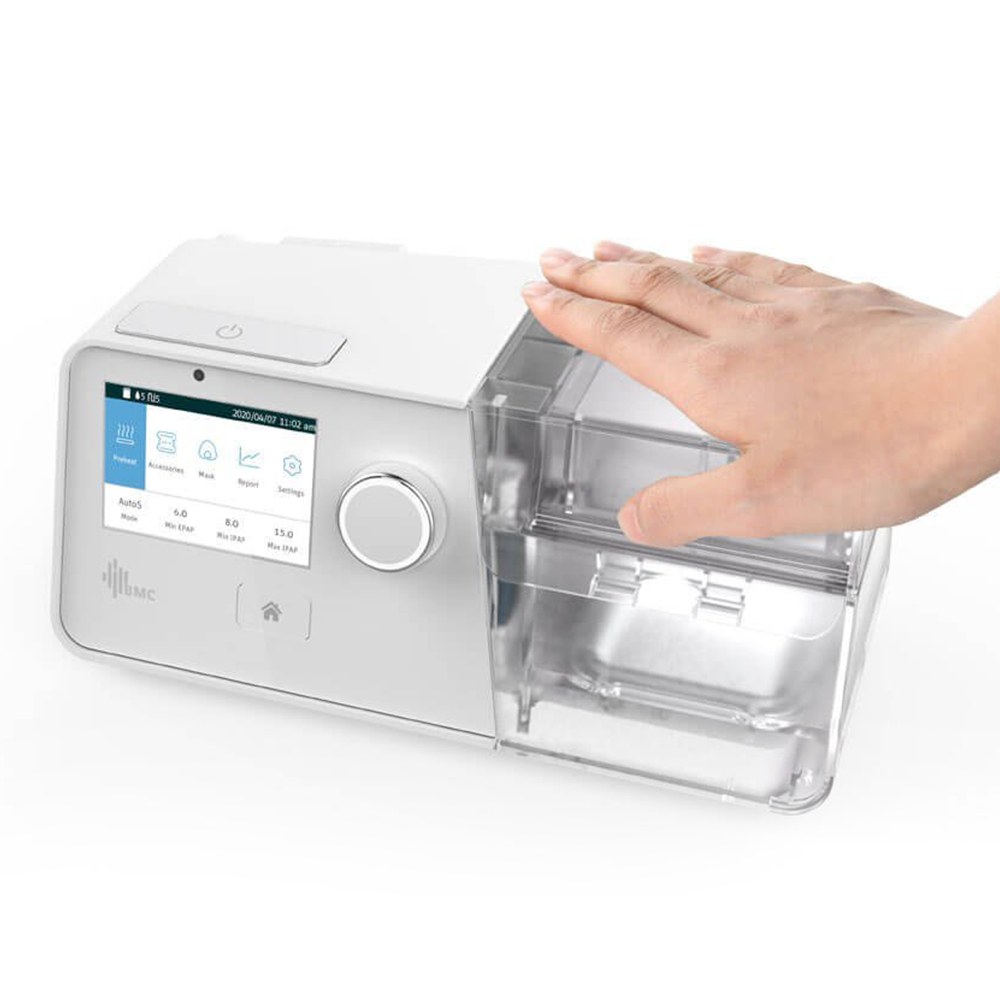

Integrated humidifier, refilled in place

360 mL tank, water pre-heating, and humidity control that prevents water building up in the tube.

Every night's report on your phone

The device records therapy data every night. You can view the report on the device screen, in the BMCares app on your phone or on the BMCares Cloud platform, as well as on the iCode website and in the RESmart PC software. Data moves over a WiFi or cellular module (an optional accessory) or an SD card.

Alarms for what matters

Leak, high/low respiratory rate, high/low pressure, low minute ventilation, power failure.

Replacement reminders

Reminders to replace the mask, tube and filter.

Technical specifications

Therapy

Device type: BiPAP S/T
Modes: CPAP · S · T · S/T · S/T with target volume (Vt)
IPAP range: 4 – 30 hPa
EPAP range: 4 – 25 hPa
Target tidal volume: 150 – 1500 mL
Backup rate: 3 – 40 BPM
Inspiratory time: 0.3 – 3 s
Inspiratory / expiratory trigger: 8 levels each for inspiration and expiration (1–8)
Pressure range: 4 – 20 hPain CPAP mode
Leak compensation: Yes

Monitoring

Apnea detection: Obstructive and central
SpO2 kit: Yes (optional accessory)

Comfort

Rise time: 4 levels (1–4)
Humidifier: Integrated
Humidifier capacity: 360 mLto maximum fill line
Humidifier settings: Off, 1 to 5, or Auto (35–68 °C); output no less than 15 mg H2O/L
Exhalation relief: Yes
Ramp time: 0 – 60 min
Water pre-heat: Pre-heats the humidifier water before therapy, for up to 30 min
Auto on/off: Yes
Replacement reminder: For the mask, air tubing and air filter, with a settable cycle
Heated tubing: Yes
Sound level: below 26 dBat 10 hPa

Display

Screen size: 3.5 inch
Real-time display: Pressure, tidal volume (Vt) and leak, plus real-time data, real-time waveform and current-settings screens

Data & connectivity

Data transfer: SD card · WiFi · CellularWiFi and cellular through an optional module
Data storage: On board: summary data always, detailed airflow data for 1 day. SD card: summary data always, detailed airflow data for 546 hours

Alarms

Alarms: Power Failure, Device Fault, Tube Disconnected, High/Low Pressure, High/Low RR, Leak, Mask Blocked, Low MV, Low Input Voltage, Humidifier Failure, filter / tubing / mask replacement, SD card, SpO2 fault

Power

Power input: 100–240 V AC, 50/60 Hz
Water ingress protection: IP22

Physical

Weight: 1.7 kg
Weight with humidifier: 1.7 kg
Dimensions: 265 × 145 × 114 mm
Tube length: 1.83 m

Warranty & after-sales

Ali Ben Ali warranty: 3 years

Identity

Mask: Included with the device
Optional accessories: SpO2 Kit, Cellular/WiFi Module, PM2.5 Filter Box, Power Bank, DC/DC Converter

Download the full catalog (PDF)

Compare with other BiPAP devices

Show differences only

	G3 B30VTThis page	RESmart GII Y-30TGo to product	RESmart GII Y-25TGo to product
Device type	BiPAP S/T	BiPAP S/T	BiPAP S/T
Modes	CPAP · S · T · S/T · S/T with target volume (Vt)	CPAP · S · T · S/T	CPAP · S · T · S/T
IPAP range	4 – 30 hPa	4 – 30 hPa	4 – 25 hPa
EPAP range	4 – 25 hPa	4 – 25 hPa	4 – 25 hPa
Target tidal volume	150 – 1500 mL	Yes	Yes
Backup rate	3 – 40 BPM	Yes	Yes
Inspiratory time	0.3 – 3 s	Yes	Yes
Inspiratory / expiratory trigger	8 levels each for inspiration and expiration (1–8)	Yes	Yes
Pressure range	4 – 20 hPa (in CPAP mode)	4 – 20 hPa (in CPAP mode)	4 – 20 hPa (in CPAP mode)
Leak compensation	Yes	Yes	Yes
Apnea detection	Obstructive and central	Obstructive only	Obstructive only
Humidifier	Integrated	Detachable	Detachable
Humidifier capacity	360 mL (to maximum fill line)	350 mL (at recommended water level)	350 mL (at recommended water level)
Exhalation relief	Yes	Yes	Yes
Ramp time	0 – 60 min	0 – 60 min	0 – 60 min
Heated tubing	Yes	Yes (optional accessory)	Yes (optional accessory)
Sound level	below 26 dB (at 10 hPa)	below 30 dB (at 10 hPa)	below 30 dB (at 10 hPa)
Alarms	Power Failure, Device Fault, Tube Disconnected, High/Low Pressure, High/Low RR, Leak, Mask Blocked, Low MV, Low Input Voltage, Humidifier Failure, filter / tubing / mask replacement, SD card, SpO2 fault	Leak, High/Low RR, High/Low Pressure, Low Minute Ventilation, Low SpO2, Power Failure	Leak, High/Low RR, High/Low Pressure, Low Minute Ventilation, Low SpO2, Power Failure
SpO2 kit	Yes (optional accessory)	Yes (optional accessory)	Yes (optional accessory)
Data transfer	SD card · WiFi · Cellular (WiFi and cellular through an optional module)	SD card · WiFi · GPRS · QR code (WiFi and cellular through an optional module)	SD card · WiFi · GPRS · QR code (WiFi and cellular through an optional module)
Screen size	3.5 inch	3.5 inch	3.5 inch
Weight	1.7 kg	1.5 kg	1.5 kg
Weight with humidifier	1.7 kg	2.5 kg	2.5 kg
Dimensions	265 × 145 × 114 mm	170 × 180 × 118 mm	170 × 180 × 118 mm
Ali Ben Ali warranty	3 years	3 years	3 years

A dot next to a value means it differs from the device on this page.

Frequently asked questions

About the G3 B30VT

What is the difference between the G3 B30VT and the RESmart GII Y-30T?

Both reach 30 hPa inspiratory pressure and both offer target tidal volume. The G3 is third-generation: it detects obstructive and central apnea where the Y-30T detects obstructive only, it is quieter (below 26 dB vs below 30), and its integrated humidifier keeps it at 1.7 kg. The Y-30T has a detachable humidifier and weighs 2.5 kg with it.

What do S/T mode and backup rate mean, and who sets them?

In S/T mode the device follows the patient's breathing and delivers a backup breath if no breath comes within a set time. On the G3 B30VT the backup rate is 3 to 40 breaths per minute. The treating physician sets the mode, pressures and rate; they should not be changed without them.

What happens during a power cut?

The device has a power-failure alarm. A power bank and a DC/DC converter can run it without mains power. These are optional accessories. If the patient needs the device for long periods, agree a power-cut plan with the doctor.

My nose or mouth feels dry. Does the device help?

The G3 B30VT has an integrated 360 mL humidifier with water pre-heating and humidity control, and it comes with heated tubing. If dryness continues, ask the doctor to review the settings.

Which mask should I use, and how often do I replace parts?

Mask type and size affect leaks and comfort; the doctor or respiratory therapist can help you choose. The device itself reminds you when to replace the mask, tube and filter, and genuine parts are available from us.

About buying medical devices from Ali Ben Ali

Is the device genuine, and how can I be sure?

We are a direct agent of the manufacturer; the device comes straight from the factory with the Ali Ben Ali warranty. You can also see it in person at any of our branches before you buy.

About us

Is the device registered with the Egyptian Drug Authority?

Yes, this device is registered with the Egyptian Drug Authority.

How long is the warranty, and who provides it?

3 years from Ali Ben Ali from the date of purchase, on every BMC device. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.

Maintenance centres

If the device breaks after the warranty, who repairs it?

Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Service and genuine spare parts stay available for the device's whole life.

Maintenance centres

Can I return or exchange the device?

Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.

Exchange and returns policy

Do I need a prescription or a doctor's report to buy?

The treating physician decides whether this device is right and sets it up, so it is best to have the doctor's report or recommendation before buying. We can then help you run the device on the settings they prescribe.

Do you deliver and install? Should I buy online or at a branch?

We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
