High flow · for hospitals and intensive careNo reviews yet

BMC H-80A High Flow Nasal Cannula Oxygen Therapy Device

Name: High Flow Oxygen H-80A – BMC
Brand: BMC

A BMC high-flow device delivering mixed air and oxygen up to 80 L/min, with oxygen concentration set automatically from 21 to 100 % in 1 % steps. It heats and humidifies the gas from 29 to 37 °C in 9 steps, and displays oxygen concentration, flow, temperature, respiratory rate and sPEEP. For spontaneously breathing patients in hospitals and long-term care institutions.

Manufacturer certifications (BMC):CE markISO 13485 (manufacturer)European Free Sale certificate

Up to 80 L/minMixed air and oxygen

Automatic oxygen21 to 100 %

Warm humidification29 to 37 °C

Currently unavailable

Add to wishlist

Need help choosing?Our sales team answers on WhatsApp or by phone.

WhatsApp 01212333328

3-year warranty

On every BMC device, from the date of purchase.

Lifetime service

Service and genuine spare parts, after the warranty too.

Accredited maintenance centre

By the General Authority for Industrial Control.

Direct BMC agent

In the medical equipment trade since 1987, with 4 branches.

This device may suit your department if...

Clinical decisions belong to the treating physician. These are the device's uses.

You treat spontaneously breathing patients who need high-flow oxygen

Including patients with an artificial airway, in hospitals and long-term care institutions.

Your oxygen supply varies

Runs on wall oxygen, a cylinder or an oxygen concentrator; the built-in oxygen sensor needs no maintenance.

You want less setup and disinfection time

Integrated disinfection-free design, automatic water filling and warm standby.

High flow in one line: the device delivers warm, humidified air and oxygen at a high flow through a nasal cannula, with the oxygen concentration, flow and temperature set by the physician.

See the device on video

The manufacturer's device video · H-80A

H-80A features

Flow 2 to 80 L/min

Two levels, HFlow and LFlow, from a dual-fan design.

026.753.380 L/min

Automatic oxygen concentration

21 to 100 % in 1 % steps, with a maintenance-free ultrasonic oxygen sensor.

Precise warm humidification

29 to 37 °C in 9 steps of 1 °C, and humidity compensation −3 to +3 in 7 steps.

More parameters on screen

Oxygen concentration, flow, temperature, respiratory rate and sPEEP on a 3.5-inch screen, with 1, 3 or 7-day trend review.

Warm standby

Pause therapy briefly without switching off, and resume without waiting for warm-up, saving oxygen.

Disinfection-free, automatic water filling

The water chamber has a backflow-prevention valve, and the device reminds you to replace the filter.

Technical specifications

Therapy

High-flow levels: Two levels: HFlow and LFlow
Flow range: 2 – 80 L/min
Oxygen concentration range: 21 – 100 %
Oxygen adjustment: Automatic, accurate to 1 %
Oxygen sources: Wall oxygen, cylinder or oxygen concentrator

Monitoring

Monitored parameters: Oxygen concentration, flow, temperature, respiratory rate, sPEEP

Comfort

Output temperature: 29 – 37 °C
Temperature steps: 9 steps
Humidity compensation: −3 to +3, 7 steps
Warm standby: Yes
Automatic water filling: Yes
Disinfection-free design: Yes
Replacement reminder: Filter-replacement reminder, settable

Display

Screen size: 3.5 inch
Trend review: 1, 3 or 7 days

Warranty & after-sales

Ali Ben Ali warranty: 3 years

Identity

Use setting: Hospitalhospitals and long-term care institutions
Optional accessories: Water chamber, water chamber exchange connector, LH2 heated tubing, high-flow nasal cannula (XS / S / M / L), medical trolley

Download the full catalog (PDF)

Compare with other High flow devices

Show differences only

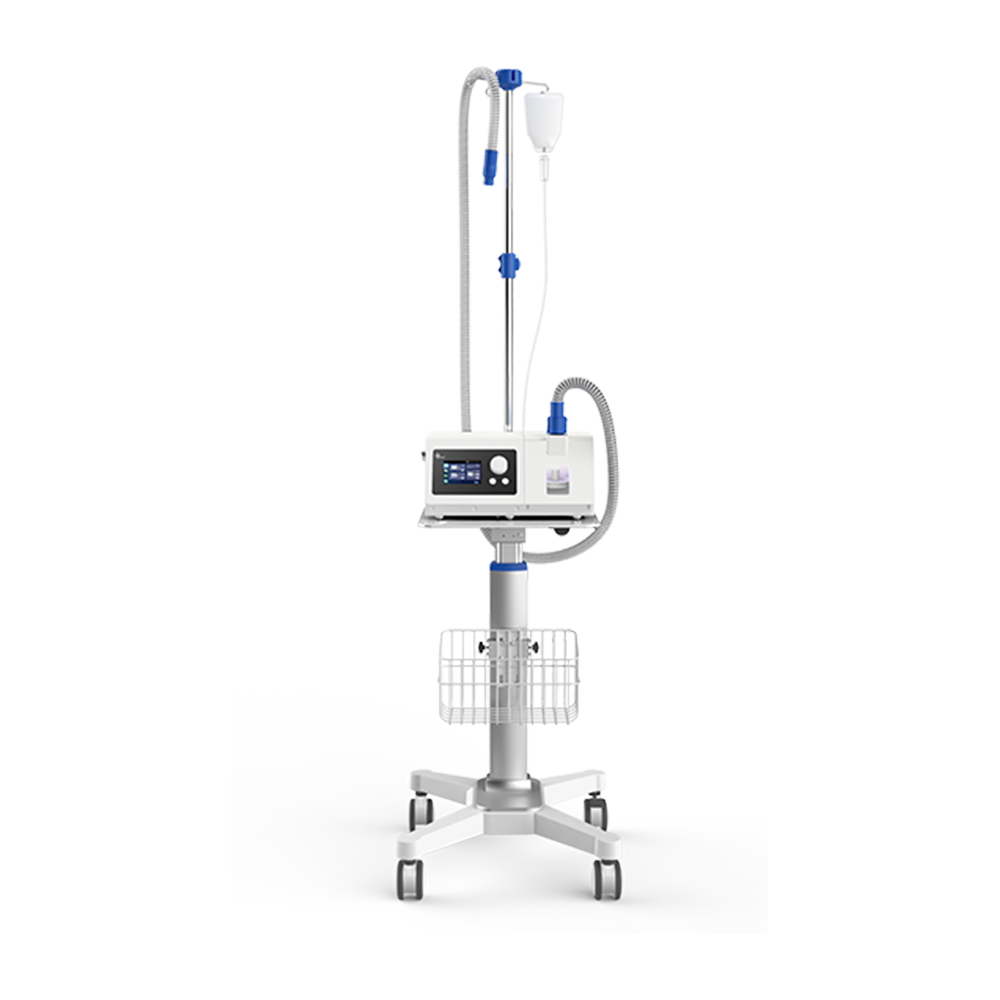

	H-80AThis page	R SeriesGo to product
High flow + non-invasive	–	High flow and non-invasive ventilation in one device
High-flow levels	Two levels: HFlow and LFlow	HFlow up to 80 L/min; LFlow suitable for children
Flow range	2 – 80 L/min	2 – 80 L/min
Oxygen concentration range	21 – 100 %	21 – 100 % (set automatically on R-90S, R-80S and R-80B; manual on R-80C)
Oxygen adjustment	Automatic, accurate to 1 %	Automatic on R-90S, R-80S, R-80B; manual on R-80C
Output temperature	29 – 37 °C	29 – 37 °C
Temperature steps	9 steps	9 steps
Humidity compensation	−3 to +3, 7 steps	−3 to +3, 7 steps
AutoFlow	–	R-90S and R-80S
SmartFlow	–	R-90S and R-80S
Monitored parameters	Oxygen concentration, flow, temperature, respiratory rate, sPEEP	Oxygen concentration, flow, temperature, respiratory rate, sPEEP
SpO2 kit	–	Yes (optional accessory)
Screen size	3.5 inch	3.5 inch
Trend review	1, 3 or 7 days	1, 3 or 7 days
Warm standby	Yes	–
Automatic water filling	Yes	Yes
Disinfection-free design	Yes	–
Ali Ben Ali warranty	3 years	3 years

A dot next to a value means it differs from the device on this page.

Frequently asked questions

About the H-80A

What is the difference between the H-80A and the R Series?

The H-80A is high flow only, 2 to 80 L/min. The R Series combines high flow and non-invasive ventilation in one device, with IPAP up to 50 cmH₂O on the R-90S. AutoFlow and SmartFlow are on the R-90S and R-80S, not on the H-80A.

Who sets the device up?

The treating physician sets flow, oxygen concentration and temperature for each patient. Our team helps with installation and trains the staff on operating the device.

Which oxygen sources does it work with?

Wall oxygen, an oxygen cylinder or an oxygen concentrator.

What accessories are there?

Water chamber, water chamber exchange connector, LH2 heated tubing, high-flow nasal cannula in XS, S, M and L, and a medical trolley. Ask the sales team what is included in the quotation.

How do I request a quotation?

Call the hotline 01212333328 or message us on WhatsApp with the number of devices and the department, and the sales team will reply with a quotation.

About buying medical devices from Ali Ben Ali

Is the device genuine, and how can I be sure?

We are a direct agent of the manufacturer; the device comes straight from the factory with the Ali Ben Ali warranty. You can also see it in person at any of our branches before you buy.

About us

Is the device registered with the Egyptian Drug Authority?

Yes, this device is registered with the Egyptian Drug Authority.

How long is the warranty, and who provides it?

3 years from Ali Ben Ali from the date of purchase, on every BMC device. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.

Maintenance centres

If the device breaks after the warranty, who repairs it?

Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Service and genuine spare parts stay available for the device's whole life.

Maintenance centres

Can I return or exchange the device?

Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.

Exchange and returns policy

Do I need a prescription or a doctor's report to buy?

The treating physician decides whether this device is right and sets it up, so it is best to have the doctor's report or recommendation before buying. We can then help you run the device on the settings they prescribe.

Do you deliver and install? Should I buy online or at a branch?

We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
