Specifications

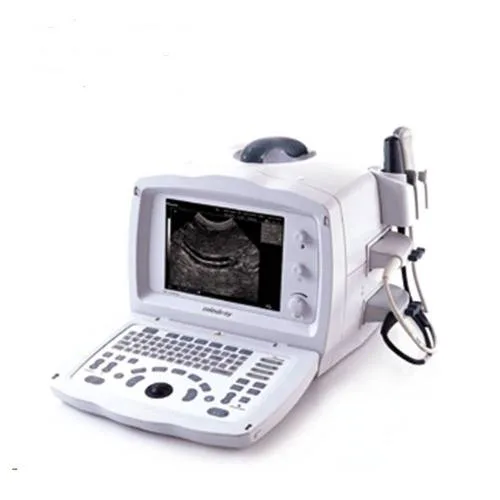

Digital Ultrasonic Diagnostic Imaging System
Model: DP-2200
Complete image solutions and economic price make DP-2200 meet challenges in today’s ultrasound market. With its full digital technology and high-quality transducers, DP-2200 provides the elegant image quality as an ideal portable working station. It will meet your daily diagnostic needs without any compromise.
Product Description
What are features of our DP-2200 ultrasound machine?
1.Digital beam-former
2.10″ non-interlaced monitor
3.Wide applications: abdomen, urology, GYN, OB, small parts, and orthopedics
4.One USB port and optional DICOM
5.Triple-frequency transducer series, Highest frequency up to 10MHz
6.Second transducer connector (optional)
Functions
- One loop:128-frame cine loop memory
- Storage media: Internal flash and USB
- Zoom: panoramic in real-time and frozen condition
- Built-In Image archive: permanent storage up to 90 images
Measurement & Calculation
- B-mode: distance, circumference, area, volume, angle, ratio histogram, profile, 5%
- M-mode: distance, time, velocity, heart rate (2 cycles)
- Software packages: abdomen, gynecology, obstetrics, orthopedics, small parts
What is specification of our b mode ultrasound machine?
| Imaging mode | B, B+B, B+M, M |
| Gray scale | 256 |
| Display | 10″non-interlaced |
| Transducer frequency | 2.5 – 10MHz |
| Transducer connector | 1 (standard), 2 (optional) |
| Dynamic Imaging technology | Digital Beam-forming (DBF) Dynamic Receiving Focusing (DRF) Up to 16 zone transmitting focusing Dynamic Frequency Scan (DFS) Real-time Dynamic Aperture (RDA) Dynamic Receiving Apodization (DRA) |
| Scanning angle | from 67 to 120 degree (depending on transducers) |
| Scanning depth (mm) | from 21.6 to 248(depending on transducers) |
| Pre-processing | dynamic range edge enhancement frame correlation 4-segmentTGC adjustment IP (Image Process) acoustic power adjustment high resolution/high frame rate select |
| Post-processing | gray reap left-right reverse up-down reverse |
| Peripheral port | video output 1 USB port 1 VGA output port 1 DICOM3.0 1(optional) |
| Power supply | 100-240VAC, 50Hz/60Hz |
| Dimensions | 360mm (W)*320mm (L)*270mm (H) |
| Net weight | 9.5kg |
What is configuration of our portable ultrasound machine?
Standard Configurations
- . DP-2200 main unit
- . 10″ non-interlaced monitor
- . One transducer connector
- . 128-frame CINE loop
- . 90-frame image storage
- . One USB port
- . Measurement and calculation software packages
- . Electronic convex array transducer: 35C50EB (2.5/3.5/5.0MHz)
Optional
- . Electronic linear array transducer: 75L38EB (5.0/7.5/10MHz)
- . Electronic linear array transducer: 75L60EA (5.0/7.5/10MHz)
- . Electronic endocavity transducer: 65EC10EB (5.0/6.5/8.0MHz)
- . Electronic micro-convex array transducer: 65C15EA (5.0/6.5/8.0MHz)
- . Electronic micro-convex array transducer: 35C20EA (2.5/3.5/6.0MHz)
- . Second transducer connector
- . Needle-guided brackets
- . DICOM3.0
- . Foot-switch
- . Mobile trolley
- . Transportation & operation bag
- . Hand carried bag
Full digital technology and wide applications
1.Full digital technology yields high-quality image, which will bring you more assurance for your daily diagnoses.
2.A suite of complete clinical solutions comes with a wide range of transducers for obstetrics, gynecology, abdomen, urology, small parts, orthopedics and pediatrics.
