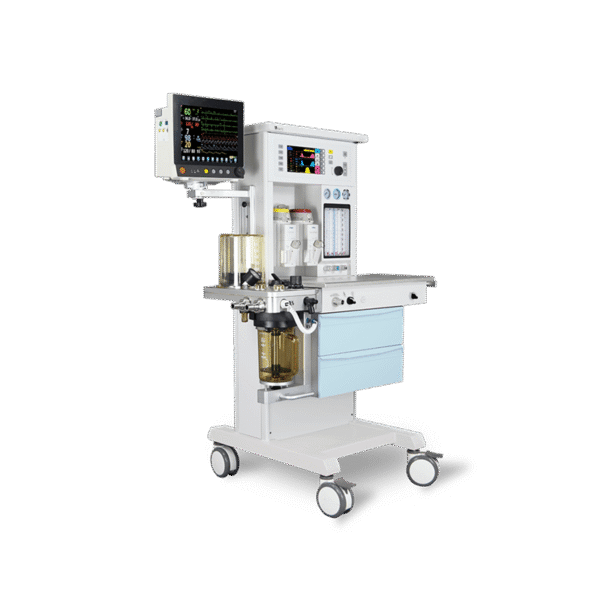

Northern Meditec Atlas N3 Anaesthesia Machine with Three Gases and Two Vaporizer Positions
A Northern Meditec anaesthesia machine whose ventilator offers V-CMV, P-CMV, PSV, volume and pressure SIMV and PRVC, with tidal volume from 10 to 1500 ml. It has 6 flow tubes for 3 gases, two vaporizer positions and an integrated heated breathing circuit. The anaesthetist sets the mode and the settings.
1-year warranty
On Northern Meditec devices, from the date of purchase.
Accredited service centre
By the General Authority for Industrial Control, at 31 El Rashidy St – Kasr El Aini.
Genuine product
By Northern Meditec.
Ali Ben Ali
In the medical equipment trade since 1987, with 4 branches.
This machine may suit you if...
The final choice is made with the anaesthetist or the biomedical engineering team. These are the uses the machine is made for.
Your theatre has oxygen, nitrous oxide and air
6 mechanical flow tubes for 3 gases.
You need volume and pressure modes
V-CMV, P-CMV, PSV, V-SIMV, P-SIMV and PRVC.
You want a practical workbench
Stainless steel with LED lighting, two drawers and 3 auxiliary outlets.
An anaesthesia machine in one line: it mixes oxygen, gases and the agent from the vaporizer, and its built-in ventilator delivers them by the volume or pressure the doctor sets, with fresh-gas, compliance and leakage compensation.
Atlas N3 features
8 modes
V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby and Manual/Spont.
Tidal volume 10–1500 ml
With fresh-gas, compliance and leakage compensation.
3 gases, 6 tubes
Oxygen, nitrous oxide and air, two vaporizer positions (Selectatec), ACGO standard.
Integrated heated circuit
Autoclavable metal and PPSU, one-hand CO2 absorber up to 134 °C.
Waveforms and loops
Up to 3 user-configurable waveforms; P-V, P-F, F-V and reference loops.
Installation alarm
Alarms if the breathing system or the soda-lime canister is fitted incorrectly.
Technical specifications
Ventilation
- Ventilation modes
- V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby, Manual/Spont
- Tidal volume
- 10–1500 ml
- Compensation
- Fresh-gas, compliance and leakage compensation
- Breathing circuit
- Integrated circuit with built-in heater, autoclavable metal and PPSU; ACGO standard; soda-lime bypass with an on-line canister detector; one-hand CO2 absorber in PPSU, autoclavable up to 134 °C
Gases & vaporizer
- Vaporizer positions
- 2 positions (Selectatec bar)
- Gas supply
- O2, N2O and air
- Flowmeters
- Mechanical: 6 flow tubes for 3 gases
Display
- Trend review
- Up to 3 user-configurable waveforms; P-V, P-F, F-V and reference loops
Alarms
- Alarms
- Alarm for incorrect installation of the breathing system and the soda-lime canister
Power
- Battery
- Li-ion battery, 4800 mAh
- Power input
- 3 auxiliary power outlets
Physical
- Drawers
- 2 drawers
- Casters
- 4 wheels (125 mm) with 2 separate brakes
- Workbench
- Stainless-steel workbench that withstands any chemical sterilization agent, LED work lighting; safe shelf loading 25 kg
- Dimensions
- 710 × 900 × 1460 mm
Warranty & after-sales
- Ali Ben Ali warranty
- 1 year
Compare with other Anaesthesia machine devices
| Atlas N3This page | AX-500Go to product | |
|---|---|---|
| Ventilation modes | V-CMV, P-CMV, PSV, V-SIMV, P-SIMV, PRVC, Standby, Manual/Spont | PRVC, SIMV and SIMV + PS, PSV with apnea backup |
| Tidal volume | 10–1500 ml | Minimum tidal volume 5 ml |
| PEEP | – | Electronic PEEP |
| Ventilation accuracy | – | 7% ventilation accuracy |
| Monitored parameters | – | Set and measured values on the same screen, respiratory mechanics with real-time waveforms |
| Vaporizer positions | 2 positions (Selectatec bar) | – |
| Gas supply | O2, N2O and air | – |
| Dimensions | 710 × 900 × 1460 mm | – |
| Ali Ben Ali warranty | 1 year | 1 year |
A dot next to a value means it differs from the device on this page.
Frequently asked questions
About the Atlas N3
How does it differ from the Comen AX-500?
Both offer PRVC, SIMV and PSV. The Atlas N3 has 6 flow tubes for 3 gases, two vaporizer positions, up to 3 waveforms with loops, and tidal volume 10–1500 ml. The AX-500 has an ascending bellows with 65 ml/min leakage and 7% accuracy, and tidal volume down to 5 ml.
Who sets the ventilation mode?
The anaesthetist chooses the mode and tidal volume for each patient; the machine compensates for fresh gas, compliance and leakage.
Which gases does it use?
Oxygen, nitrous oxide and air on 6 mechanical flow tubes, with two vaporizer positions on a Selectatec bar.
What if the power fails?
It has a 4800 mAh lithium battery, and 3 auxiliary outlets for the equipment next to it.
Is it easy to move?
Yes, on 4 wheels of 125 mm, 2 of them with separate brakes. It measures 146 × 90 × 71 cm.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
The device is made by Northern Meditec and comes with the Ali Ben Ali warranty; we have been in the medical equipment trade since 1987. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
1 year from Ali Ben Ali from the date of purchase, on Northern Meditec devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device needs service, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Call the hotline 01212333328 and we will set a time with you.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
