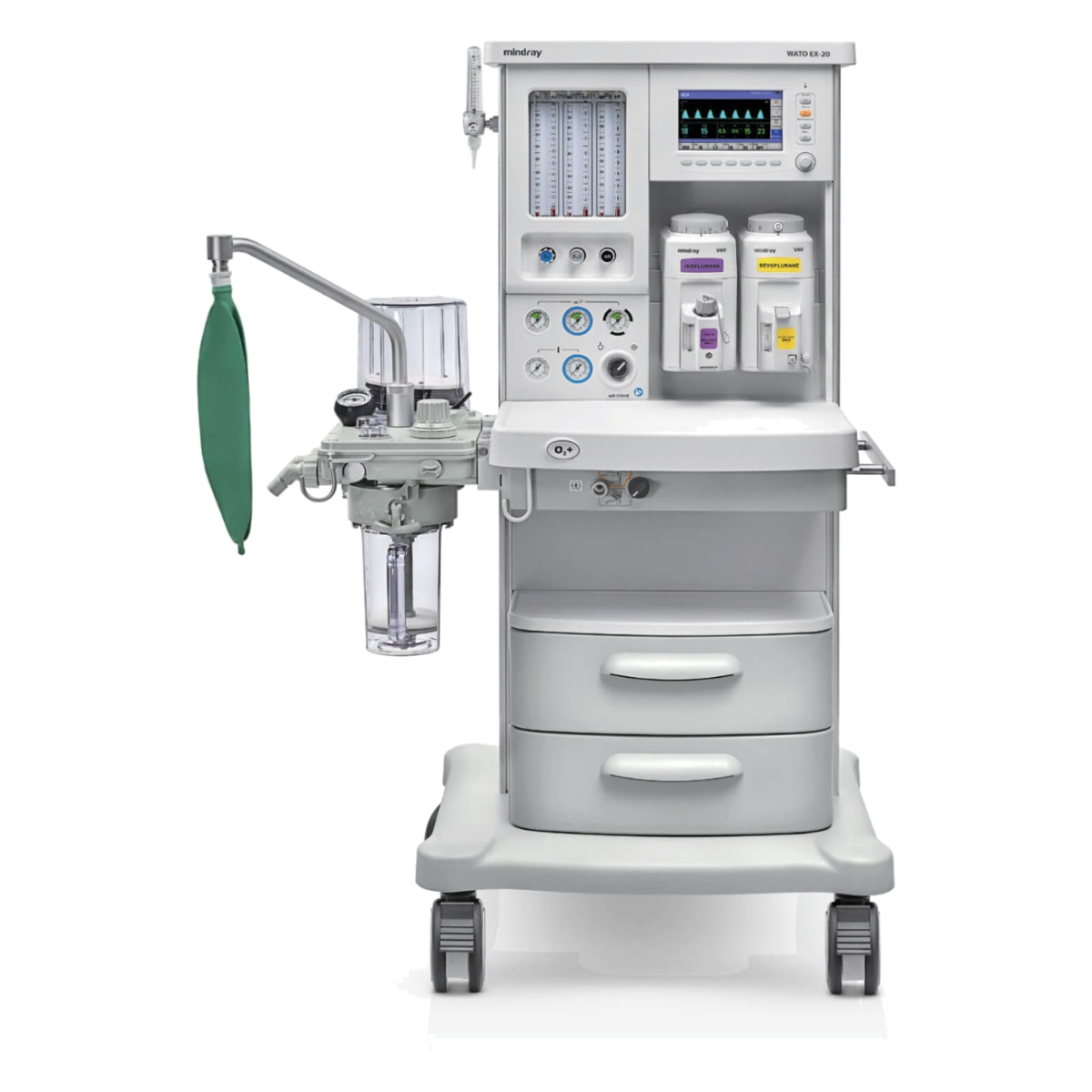

Mindray WATO EX-20 Compact Anaesthesia Machine with an Integrated Ventilator
A compact Mindray anaesthesia machine with an integrated ventilator in volume (VCV) and pressure modes, tidal volume from 40 to 1500 mL, electronic PEEP and two vaporizer positions. Its battery keeps it running for 90 minutes in a power cut. The anaesthetist sets the parameters.
1-year warranty
On Mindray devices, from the date of purchase.
Lifetime service
With genuine spare parts after the warranty too.
Accredited maintenance centre
By the General Authority for Industrial Control.
Ali Ben Ali
In the medical equipment trade since 1987, with 4 branches.
This device may suit you if...
The final choice is made with the anaesthetist or the biomedical engineering team. These are the uses the device is made for.
An operating room with limited space
A complete anaesthesia machine on castors, in a small footprint.
Adult and paediatric surgery
Tidal volume from 5 mL in pressure mode up to 1500 mL.
A hospital with O2, N2O and air pipelines
The machine runs on an external gas supply: it connects to O2, N2O and air pipelines (NIST or DISS).
What matters in an anaesthesia machine, in one line: the ventilation modes (volume or pressure) decide how each breath is given, tidal volume is the air in each breath, and vaporizer positions are how many anaesthetic agents you can mount at once. The WATO EX-20: VCV and pressure mode, 40–1500 mL in volume mode, two vaporizer positions.
WATO EX-20 features
Integrated ventilator
Manual, spontaneous, VCV with PLV and pressure mode; rate 4 to 100 per minute; I:E from 4:1 to 1:8.
Electronic PEEP
Integrated and electronically set: 4 to 30 cmH₂O or off.
Two vaporizer positions
The vaporizer itself is optional and chosen with the customer: Mindray V60, Penlon Sigma Delta or Sigma Alpha, Selectatec® or Plug-in® mounting with an interlock function.
Oxygen safety
Mechanical link keeping at least 25% O2, N2O shut-off on loss of O2 pressure, and O2 flush 25–75 L/min.
Compact breathing circuit
2600 ml automatic, 1800 ml manual, CO₂ canister about 1500 mL; parts in contact with exhaled gas are autoclavable.
Screen and monitoring
7.0-inch colour TFT showing tidal volume, pressures, PEEP, FiO2 and their waveforms, with a 24-hour trend.
Technical specifications
Ventilation
- Ventilation modes
- Manual / Spontaneous / Bypass, VCV with PLV, Pressure mode (P-mode)
- Tidal volume
- 40–1500 mL in volume mode, 5–1500 mL in pressure mode
- Inspiratory pressure (Pinsp)
- 5–60 cmH₂O
- Pressure limit (Plimit)
- 10–100 cmH₂O
- I:E ratio
- 4:1 to 1:8
- Inspiratory pause
- Off, or 5–60%
- PEEP
- Integrated, electronic: off, or 4–30 cmH₂O
- Ventilator drive
- Driving pressure 280–600 kPa; peak flow 120 L/min plus fresh gas flow
- Breathing circuit
- Closed and semi-closed circuit; volume 2600 ml automatic, 1800 ml manual; CO₂ canister about 1500 mL; 6 mL water trap
- APL valve
- 1–75 cmH₂O
Gases & vaporizer
- Vaporizer positions
- Up to 2 positions
- Compatible vaporizers
- Mindray V60, or Penlon Sigma Delta or Sigma Alpha; Selectatec® or Plug-in® mounting with interlock (optional accessory)
- Anaesthetic agents
- Desflurane, Halothane, Enflurane, Isoflurane, Sevoflurane
- Gas supply
- O2, N2O and air from pipeline (NIST or DISS), 0.28–0.6 MPa
- Flowmeters
- Mechanical, two tubes per gas: O2 and air 0–1 and 1–15 L/min, N2O 0–1 and 1–10 L/min
- O2 flush
- 25–75 L/min
Safety
- O2-N2O link
- Mechanical link, nominal minimum 25% O2; N2O shuts off on loss of O2 pressure
- Anaesthetic gas scavenging (AGSS)
- Active (high-flow or low-flow) or passive
Therapy
- Set respiratory rate
- 4 – 100 BPM
Monitoring
- Monitored parameters
- Inspired oxygen (FiO2) 18–100%, tidal volume, minute volume, breath rate, I:E ratio, PEEP, airway pressure (peak, mean, plateau), P-T, F-T and V-T waveforms
Display
- Trend review
- Last 24 hours as a chart and a table
- Screen size
- 7 inch
- Display
- Colour TFT, 800 × 480, shows all settings and alarm parameters
Data & connectivity
- Interfaces
- RJ45 network port with software upgrade; auxiliary power outlet
Alarms
- Alarms
- Low/high tidal volume and minute volume, low/high airway pressure, apnea at 20 s, O2 supply failure
Power
- Battery runtime
- 90 min
- Battery
- Built-in Li-ion battery; at least 5 minutes after the first low-battery alarm
- Power input
- 100–240 V, 50/60 Hz; 5 m power cord
Physical
- Operating conditions
- 10–40 °C, 15–95% humidity
- Materials
- All parts in contact with exhaled gases are autoclavable and natural-latex free, except the flow sensors, the O2 sensor and the pressure gauge
- Drawers
- Drawer (inside 135 × 390 × 315 mm); top shelf holds 30 kg
- Casters
- Four 125 mm casters, all braked
- Weight
- below 120 kg
- Dimensions
- 620 × 880 × 1375 mm
Warranty & after-sales
- Ali Ben Ali warranty
- 1 year
Frequently asked questions
About the WATO EX-20
What sets the WATO EX-20 apart from larger anaesthesia machines?
It is compact and on castors (880 mm wide with the breathing system, under 120 kg without vaporizers), yet it has a volume- and pressure-mode ventilator, electronic PEEP and two vaporizer positions. In short, a complete anaesthesia machine for routine surgery in less space.
Who sets up and operates the machine?
The anaesthetist decides the ventilation mode, tidal volume, PEEP and agent; a trained anaesthesia technician prepares the machine and runs the pre-use check before every case.
What needs replacing or refilling?
The CO₂ absorbent in the canister (about 1500 mL), and the water trap (6 mL) is emptied. Circuit parts in contact with exhaled gas are autoclaved, except the flow sensors, the O2 sensor and the pressure gauge. Order any spare part from customer service on 01212333328.
What if the power fails during surgery?
The built-in battery keeps ventilation going for 90 minutes (new, fully charged battery at 25 °C), and after the first low-battery alarm it runs at least 5 more minutes. The machine runs on 100–240 V.
What happens if oxygen pressure drops?
The machine sounds the O2 supply failure alarm, N2O shuts off by itself, and the mechanical O2-N2O link keeps the mixture at no less than 25% oxygen.
About buying medical devices from Ali Ben Ali
Is the device genuine, and how can I be sure?
The device is made by Mindray and comes with the Ali Ben Ali warranty; we have been in the medical equipment trade since 1987. You can also see it in person at any of our branches before you buy.
About usHow long is the warranty, and who provides it?
1 year from Ali Ben Ali from the date of purchase, on Mindray devices. We honour it directly, not through a third party; for any coverage question call the hotline 01212333328.
Maintenance centresIf the device breaks after the warranty, who repairs it?
Our maintenance centre at 31 El Rashidy St – Kasr El Aini, accredited by the General Authority for Industrial Control. Service and genuine spare parts stay available for the device's whole life.
Maintenance centresCan I return or exchange the device?
Yes, within 14 days of delivery, if it is unused, complete with its accessories and in its original packaging. If it arrives defective or different from your order, we replace it or refund it in full. Masks, tubing and any items that contact the patient cannot be returned once opened, for hygiene reasons. Return shipping is on us for a defect or a wrong item; otherwise the customer pays it, unless a free-shipping offer applies.
Exchange and returns policyDo you deliver and install? Should I buy online or at a branch?
We deliver and install in 27 governorates within Egypt. Shipping fees are set after you order and agreed with you by phone or WhatsApp before dispatch. Order on the website or on WhatsApp, or visit our branches: Rashidy and Bostan in Cairo, Alexandria and Mansoura.
